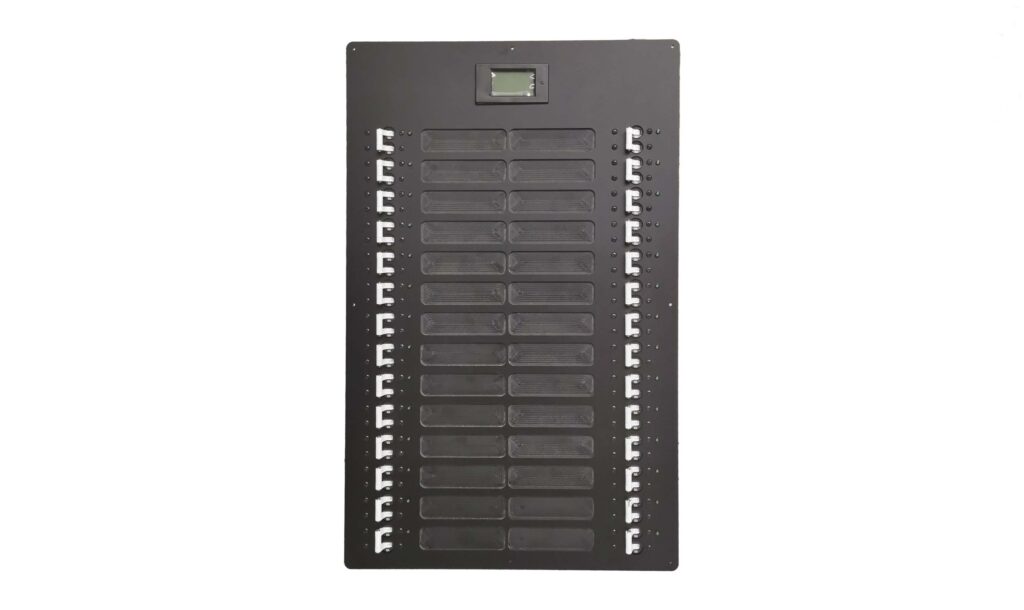

AC/DC POWER DISTRIBUTION PANEL
DIGITAL POWER DISTRIBUTION PANEL, Multi POSITION Blue Sea Switches
- AC Digital Monitor
- 28 C-Series White Toggle Circuit Breaker – Double Pole
- Custom Assembly
- Blue Sea Systems, multi custom Amp, A-series circuit breakers (Carling Technologies)
- DC Label set included
- All circuit breaker labels are backlit with LED
Assembled With:
- LCD Panel AC Power Meter with AC current transformer
- Blue Sea A-Series Circuit Breakers
- LED Light Indicators
- Blue Sea DC label Set
- LED strip lights to back-light labels
Blue Sea Systems A-Series Circuit Breakers Features:
- Meets American Boat and Yacht Council (ABYC) standards
- The industry standard circuit breaker for Blue Sea Systems electrical panels
- Combines switching and circuit protection into a single device
- “Trip Free” design cannot be held “ON” during fault current condition
AC Meter Specifications:
- Dual measurement of AC voltage, AC current with AC current transformer (It can’t be used for measuring the AC power converted from a DC power with an inverter)
- Voltage Measuring Range: AC 80 ~ 260V
- Current Measuring Range: AC 0 ~ 100A
- Active Power Measuring Range: 0 ~ 22kW
- Energy Measuring Range: 0 ~ 9999kWh
- Operating Temperature: -10 ºC ~65 ºC
- Operating Humidity: 35~85% RH
- Dimensions: 9cm * 5cm * 2.45cm/3.54″ * 1.97″ * 0.96″
Designed & Assembled In America
