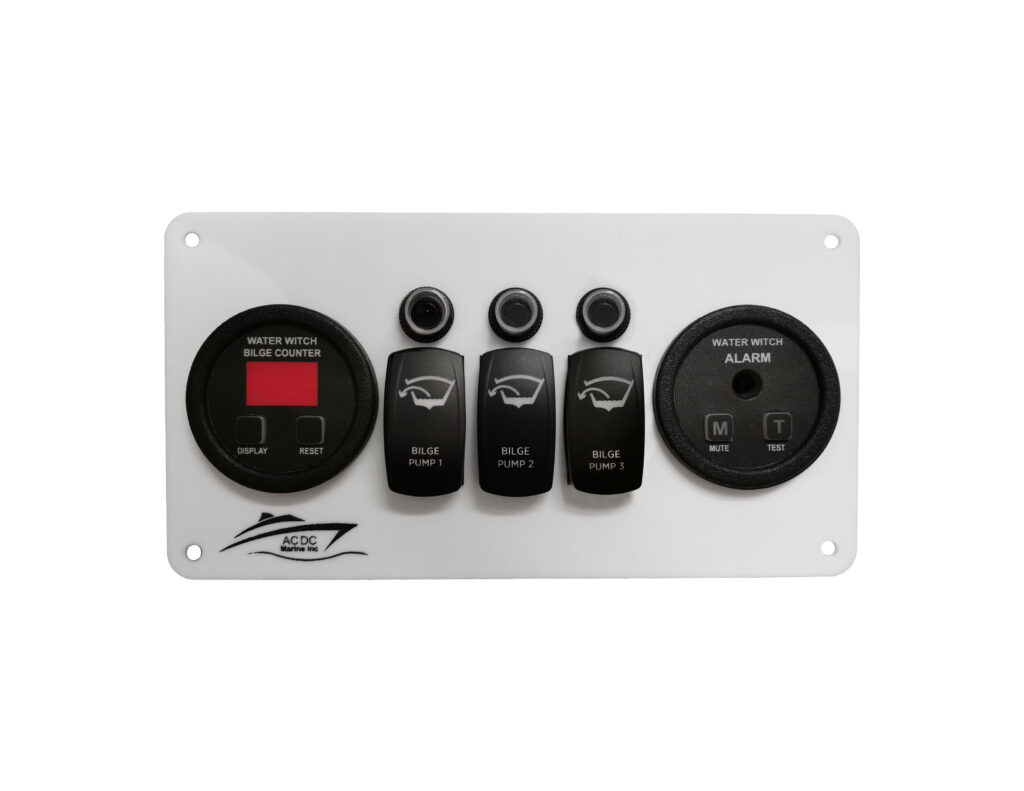

Bilge Pump Panel With Digital Counter &

Audible Alarm with Mute for 3 Pump System

Dimensions: 9′ 1/4″ x 5′

By comparing a counter’s number against a known baseline, a worsening condition can be detected early. When pressed, the Bilge Counter displays the pump count total since last reset. It is followed by the total counts from the past 2 weeks and 24 hour periods. To keep information current, the unit updates itself and recalculates the totals every 24 hours on a sliding scale.  When the 24 hour, 7 day, or 14 day period cycle counts are flashing, it indicates that the power has been interrupted and the count for the period may be invalid. Finally, the count illuminates in the display to let you know when the pump is running.Features & Benefits for Water Witch Bilge Counter

• Microprocessor controlled
• No moving parts to wear out
• Count illuminates in L.E.D. display when pump runs
• Tracks pump cycles for preceding 14 days
• Displays total pump cycles since last reset, followed by pump cycles for the previous 24hour, 7 and 14 day periods
• Data is always current -updates pump totals every 24 hours
• Flashing count signifies a power loss for that time period, indicating the count could be inaccurate
• Exceeds both United States Coast Guard and U.L. Standards
• Maintains count with power loss

Features and Benefits of Carling Contra rocker switches

• Maximum sealing protection with dual seals around lamps and rocker stem certified to IP66 & IP68.
• Silver plated butt contact mechanism provides 50 to 100 thousand electrical cycles
• Roller pin mechanism does not require lubricants and allows the switch to withstand extreme temperatures

Features and Benefits of Panel

• Bilge Pump Indicator can be back lighted for all three pumps (optional)
• 7 Amp push button circuit breaker with clear waterproof cover
• Prewired
• Ready to install

Features & Benefits of Audible Alarm with Mute:

• Microprocessor controlled
• No moving parts –no wear
• Both visual & audible alarms
• Built with Inteli-mute –intelligence at the mute button
• Can temporarily silence alarm with Mute feature
• Meets Coast Guard regulations  [182.530]
• If muted too long, Inteli-mute reactivates the alarm
• Exceeds both the United States Coast Guard  and  U.L. Standards
