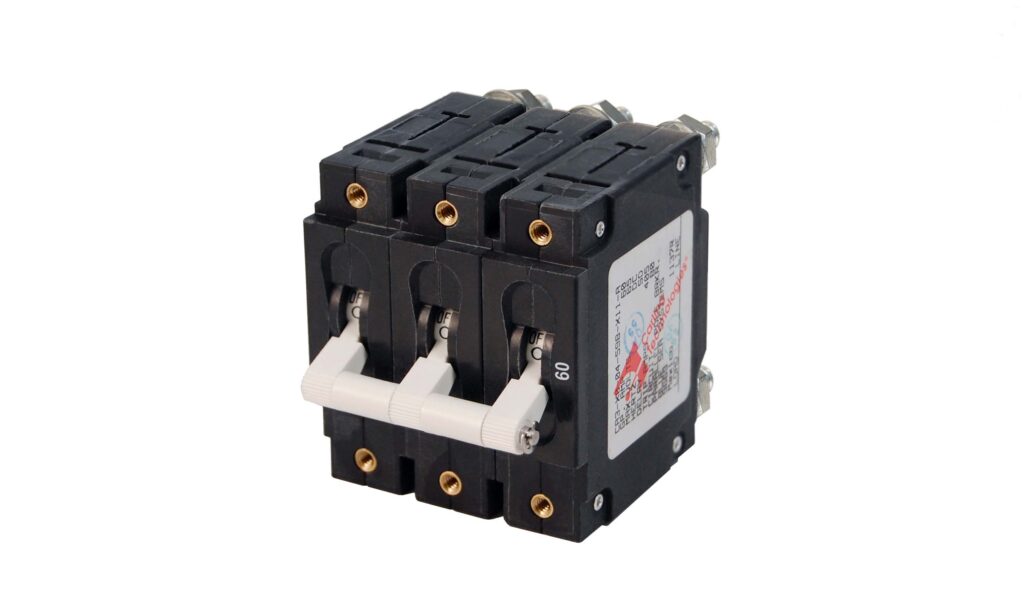

C-Series White Toggle Circuit Breaker – Triple Pole 100 Amp
- 5,000 Ampere interrupt capacity to meet ABYC requirements for 120/240 Volt 50 Ampere main protection
- Double pole used as 120 volt AC main circuit breaker to switch hot and neutral
- Triple pole used as 240 volt AC main circuit breaker to switch lines (hot) and neutral
- Double and triple pole circuit breakers will trip all poles will trip if any one pole trips
- “Trip Free” design cannot be held “ON” during fault current condition
| Color | White |
| Actuator Style | Toggle |
| Poles3 | |
| Maximum Voltage | 120V AC
240V AC |
| Circuit Breaker Type | Magnetic Hydraulic – trip free |
| Interrupt Capacity | 5000A@125V AC
5000A@240V AC |
| Minimum Operating Temperature | -40° C |
| Maximum Operating Temperature | 85° C |
| Mounting Screw | #6-32 Stainless Steel |
| Mounting Screw Torque | 6 in-lb (0.68 Nm) |
| Screw Terminal Torque | 14 in-lb (1.58 Nm) |
| Switching Cycles | 10000 |
| Terminal Screw | #6-32 Stainless Steel |
| Weight | 0.90lb (0.41 kg) |
