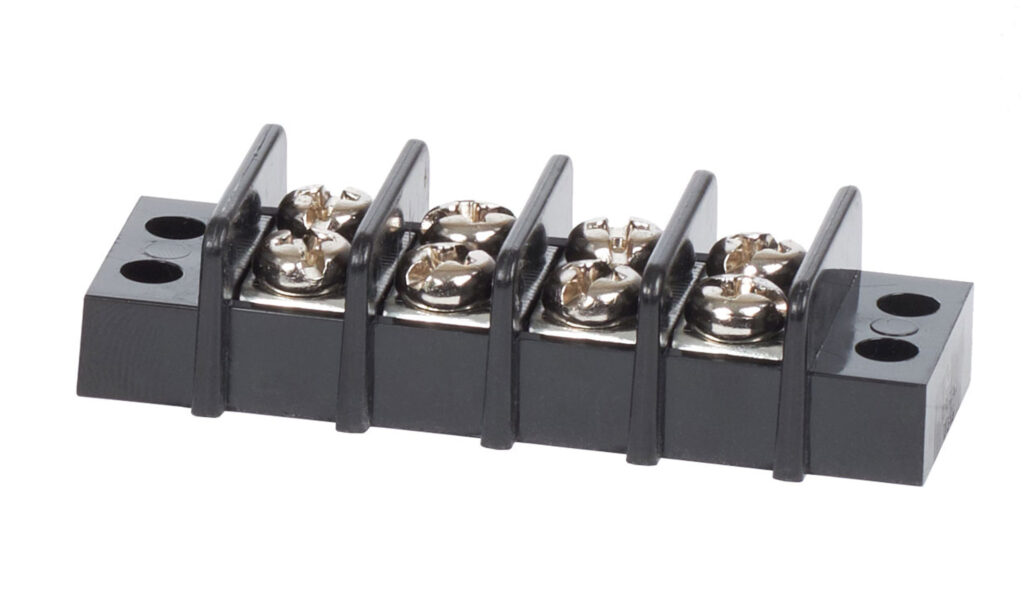

Blue Sea Terminal Block 20A – 4 Circuit
Blue Sea Terminal Block 20A – 4 Circuit
- Closed-back design completely insulates power from the mounting surface
- Each screw pair is one isolated circuit
- Jumpers allow the creation of common circuits
| Specifications |
| Circuits |
4 |
| Length |
2.17in (55.12 mm) |
| Maximum Voltage |
300V AC/DC |
| Continuous Rating |
20A |
| Base Material |
UL 94 V0, PC |
| Bus Material |
Nickel-Plated Brass |
| Mounting Screw |
#6 [M3.5] |
| Screw Material |
Stainless Steel |
| Screw Terminal Torque |
7 in-lb (0.79 Nm) |
| Terminal Screws |
M3.5 |
| Wire Terminal Size |
#6 [M3] |
| Weight |
0.07lb (0.03 kg) |
