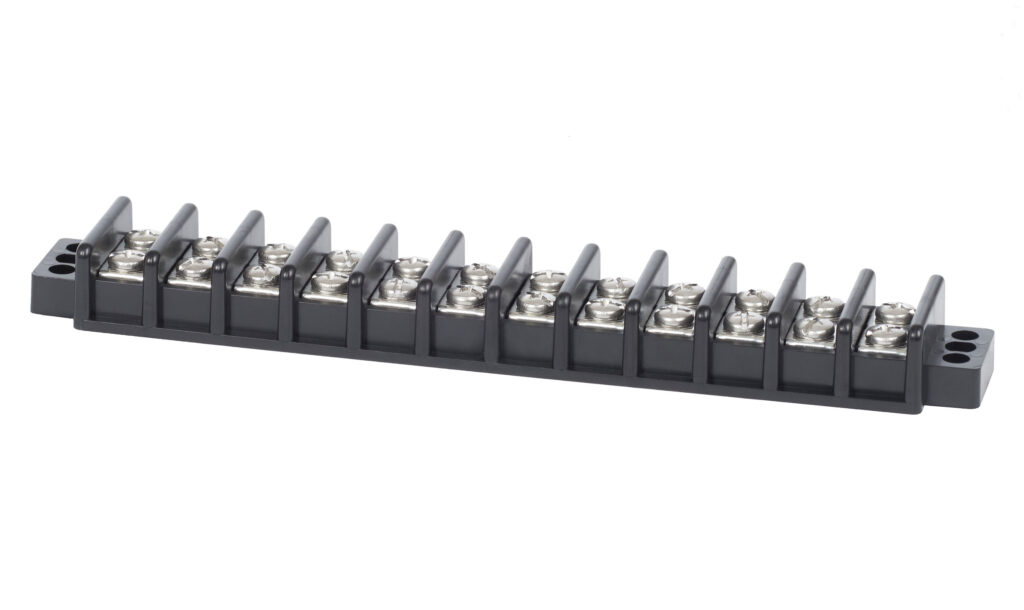

Blue Sea Terminal Block 30A – 12 Circuit
Blue Sea Terminal Block 30A – 12 Circuit
- Closed-back design completely insulates power from the mounting surface
- Each screw pair is one isolated circuit
- Jumpers allow the creation of common circuits
| Specifications |
| Circuits |
12 |
| Length |
7.75in (196.85 mm) |
| Maximum Voltage |
600V AC/DC |
| Continuous Rating |
30A |
| Base Material |
UL 94 V0, PC |
| Bus Material |
Nickel-Plated Brass |
| Mounting Screw |
#10 [M5] |
| Screw Material |
Stainless Steel |
| Screw Terminal Torque |
10 in-lb (1.13 Nm) |
| Terminal Screws |
M4 |
| Wire Terminal Size |
#8 [M4] |
| Weight |
0.35lb (0.16 kg) |
