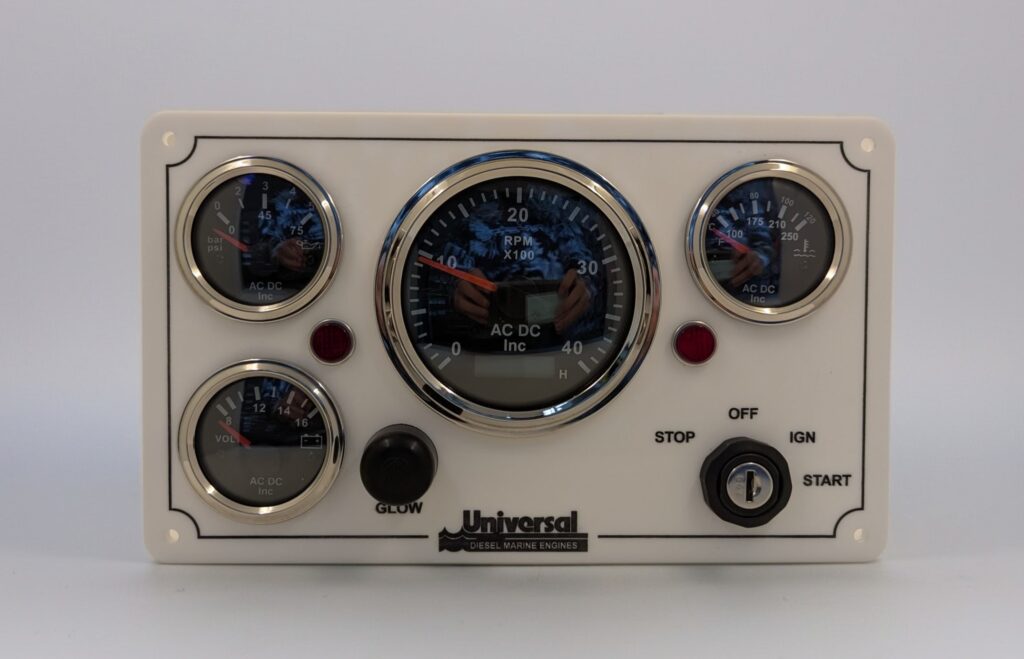

Universal Marine Instrument Panel 4 OffShore Gauges
Fully-Wired / Ready to Install
Dimensions: 10″ x 6″
Panel Material: Marine Acrylic, Polycarbonate, Marine Plexiglass
White Panel / Black Offshore Gauges
Fog resistant Marine Grade Gauges:
- Offshore 4000 RPM Programmable Tachometer with Digital Hour Meter 7 Character LCD Display
- Offshore Engine Coolant Temp Gauge 100-250°F/40-120°C
- Offshore Engine Oil Pressure Gauges 0-80 PSI/0-5 Bar
- Offshore 12v or 24v Voltmeter
• Black Dials and Retainers, White Graduations and Numerals, Orange Pointers for Better Visibility
• Scratch-Resistant Curved Glass Lenses
• Black Perimeters & Red Thru-Dials for Enhanced Night Visibility
• Incandescent light Bulbs with Backlighting, easy to use any type of 12v/24v dimmer
Kit Includes:
- Fully Wired Instrument Panel with 4 Marine-Grade Gauges
- Push Button heavy duty Switch for pre heat
- Cole Hersee 4 position Sealed Ignition Key Switch, with engine stop position
- Piezo Siren Alarm
- LED Lights for Alarm
Features and Benefits of Cole Hersee Sealed Ignition Key Switch:
- Engineering Thermoplastic Construction
- Fully Sealed Contact Area
- Integrated Sealed Deutsch Connector Interface
- Anti-Restart and Spring Return Options Available
- Tested to SAE J259 for Ignition Switches
- Supplied with Two Matching Keys, With Boot
- Key is Removable Only at the “Off” Position
- Contacts are Sealed Front and Back to IP67 (With Connector Installed)
- Temperature Sending Unit
- Oil Pressure Sending Unit
*Sending Units thread sizes May Vary Depending on Engine(s)*
*Engine Wiring Harness (Optional Add-On): Lengths of 15ft to 60ft.
*If You Need Any Other Length, No Problem — Just Give Us a Call!*
- Single Cable with 12 Marine-Grade Wires, white jacket with all marine coast guard specifications
- 14 Gauge: Black
- 14 Gauge: Red
- 16 Gauge: Dark Blue
- 16 Gauge: Light Blue
- 16 Gauge: Dark Brown
- 16 Gauge: Light Brown
- 16 Gauge: Gray
- 16 Gauge: Yellow
- 16 Gauge: White
- 16 Gauge: Purple
- 16 Gauge: Light Blue/White Stipe
- 16 Gauge: Dark Blue/White Stripe
- This Product Offers a Unique Flame Retardant Polyvinyl Chloride Compound (VW-1) and is Moisture, Abrasion, Acid, Diesel Fuel, and Oil-Resistant. It is Extremely Flexible & Easy to Work With
- Single Cable with 12 Marine-Grade Wires – 14/16 AWG
- Temperature: 105°C Dry, 75°C Wet
- Voltage: 600 Volts
- Stranding: Class K 30 Gauge Tinned Copper
- Standard: UL 1426 & UL Listed BC-5W2
- Connects to the Panel Via Terminal Strip
*If Engine Octopus is Purchased Along with the Wiring Harness, the Opposing End will Have a 12-Pin Deutsch Connector*
*DOES NOT COME CONNECTED TO TERMINAL TRIP*
Marine Grade Wire & Features:
- USCG / NMEA specification Copper Tinned Wire
- Flexible Cable — Water and Oil-Resistant
- 10″ to 12″ Pigtail Harness Connected to 12-Position Terminal Strip
12 Circuit 30 Amp Terminal Strip Features:
- Closed-Back Design Completely Insulates Power from the Mounting Surface
- Each Screw Pair is One Isolated Circuit
- Jumpers Allow the Creation of Common Circuits
Additional Options Available:
- Black or White Panel
- Engraved with Engine Name (Optional – Your Boat Name)
- Customize Panel Size, Gauges, Design, and Switches — Just Contact Us (Extra Charges May Apply)
Please Specify Your Requirements
If You Have any Technical Questions, Please Feel Free to Call or Email Us
All Panels are Made in the USA by AC DC Marine Inc. Torrance, California
