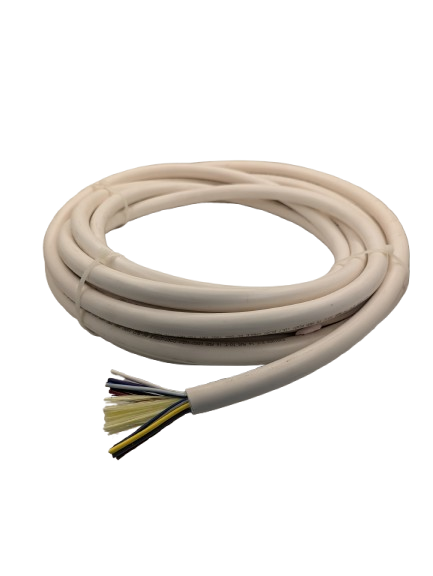

Engine Wiring Harness 8×16 gauge Coast guard Approved 10′ Ft Roll


2 in stock


UL Boat Engine Wiring Harness 14 Gauge & 16 Gauge approved

by the coast guard specifications


AC DC Inc Instruments Wiring Harness.  Perfect for Yanmar Engines! Single Cable with 10 marine grade wires. see below

14 Gauge: Black

14 Gauge: Red

16 Gauge: Dark blue

16 Gauge: Light Blue

16 Gauge: Dark Brown

16 Gauge: Light Brown

16 Gauge: Gray

16 Gauge: Yellow

16 Gauge: White


This specification covers the requirements for flexible multi conductor tinned copper flame retardant boat cable. Cobra boat cable meets or exceeds ABYC, UL, Coast Guard requirements. Cable is rated at 105oC, 75°C wet (BC-5W2) 600 Volt UL 1426 for AC & DC circuits.


Class K 30 Gauge Tinned Copper


UL 1426
UL Listed BC-5W2


This product offers a unique flame retardant polyvinyl chloride compound (VW-1), and is moisture, abrasion, acid, diesel fuel and oil resistant. It is extremely flexible & easy to work with.


600 Volts


105°C dry, 75°C wet

Additional information

Weight 6 lbs
