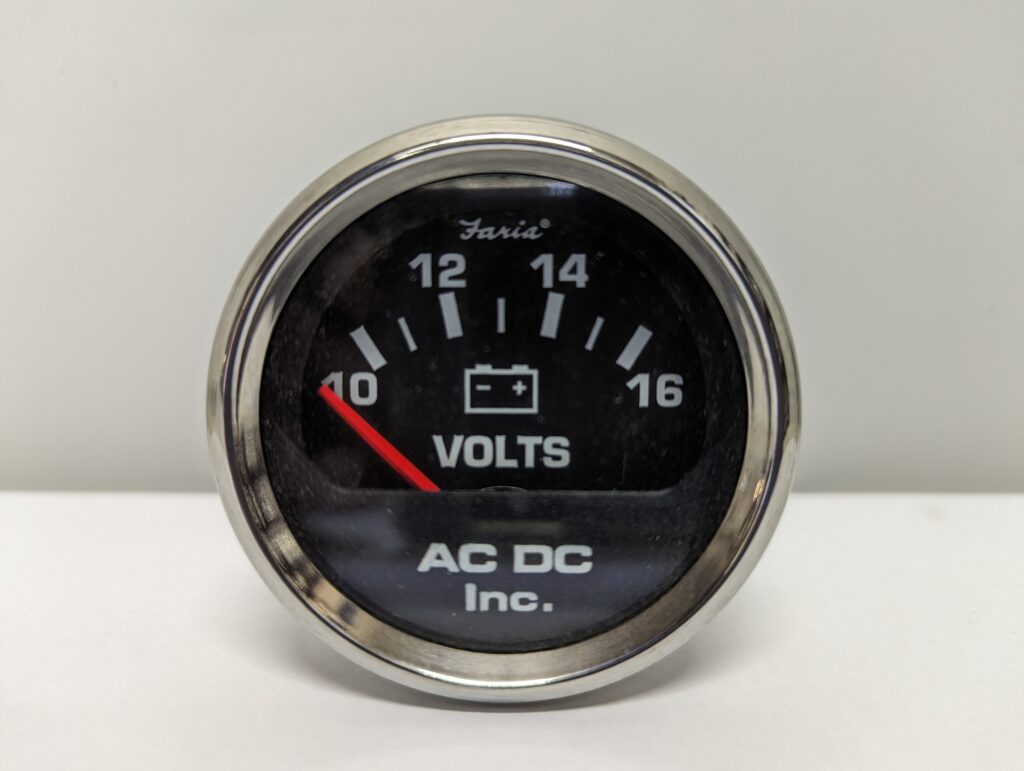

AC DC Inc. branded voltmeter by Faria Beede Instruments.
- Mounting: Bracket Plastic mounting clamp. Clamping range 0 -.8” (0-20 mm)
- Lens: Glass; These instruments are manufactured with a polycarbonate or glass lens which utilizes an anti-fog coating. This coating eliminates fogging in the instrument.
- Bezel: Stainless Steel
- Current Consumption: < 100 mA, without illumination
- Storage Temperature: -22 °F to +185 ° F (-30 °C to +85 °C)
- American Standard Resistance Rating (Ohms)
- Operating Temperature: -4 °F to +158 ° F (-20 °C to +70 °C)
- Display: 10-16V, Large Numerals – User Friendly
- Torque: 5 to 7 inch pounds (.57 – .80 Nm)
- Mounting Hole: 2 1/16” (53 mm) for 2” Instrument
- Measures app. 2 1/4″ across including bezel
- Made exclusively for AC DC Brand Name by Faria® Instruments
Made In The United States
Full Warranty – Satisfaction Guaranteed.
Additional Information:
Your Instrument System consists of individual gauges, wiring harnesses, senders, sensors and transducers. Each of these items has their own tolerances. If these tolerances “stack up” in opposite directions it can lead to what may be perceived as a larger difference in operating readings than actually exists. As long as the readings are within the engine’s specified operating band, the engines are operating properly.
A voltmeter indicates the battery voltage and the general condition of the battery charging system. The meter requires no warm-up and indicates voltage changes instantly.
