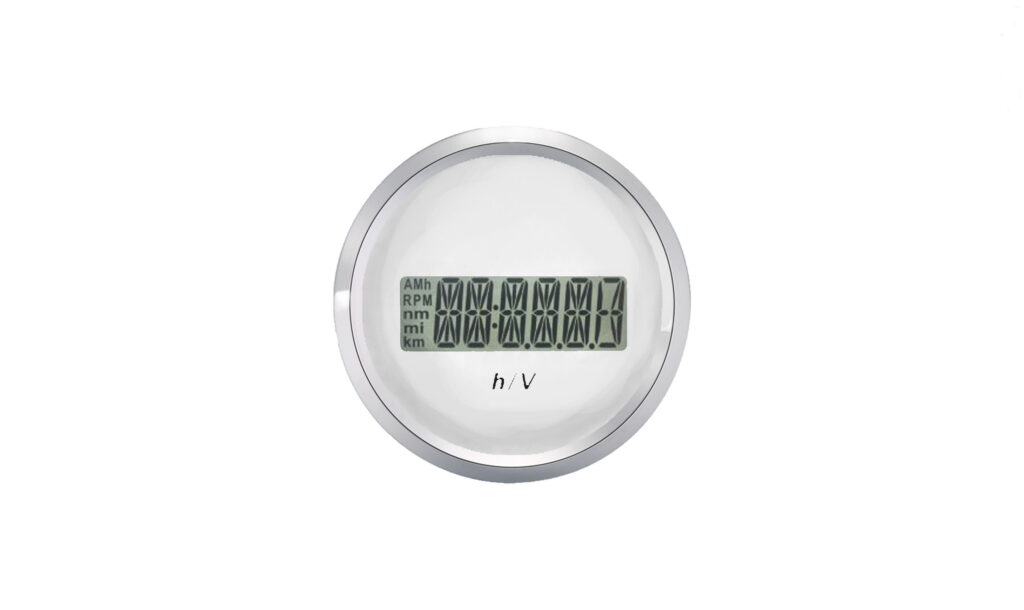

VDO Switzerland Marine Hour Counter-Voltmeter – 12/48V White Dial (Bezel sold separately)
Description
Hour Counter-Voltmeter
Features
_ LED Illumination
_ Changeable Front bezels
_ Antifog and splash protection
_ Panel and Flush mount possibility
_ High reliab
Concept
Housing: Polycarbonat (PC)
Bezel: NOT included
Lens: PMMA; double lens
Dial: LED amber (605nm)
Pointer: LED red (632nm)
Warning LED red (632nm)
Mounting: Spinlock Nut; locking height 0,5mm – 20mm,
Optional Studs and Bracket; locking height 2 – 15mm
Connection: 8 pin MQS connector system
- Cut-out diameter: 52 mm
- Voltage range: 9-48 V
- Power draw: < 50 mA
- IP rating: IP67 (front) – IP52 (back)
- Alternates h/V display every 10 seconds
Bezel sold separately!
Viewline Bezel Triangle 52 MM Chrome SKU: A2C53186026-S
We have a variety of Bezels (black or chrome, triangle) Please, contact us for more information.
