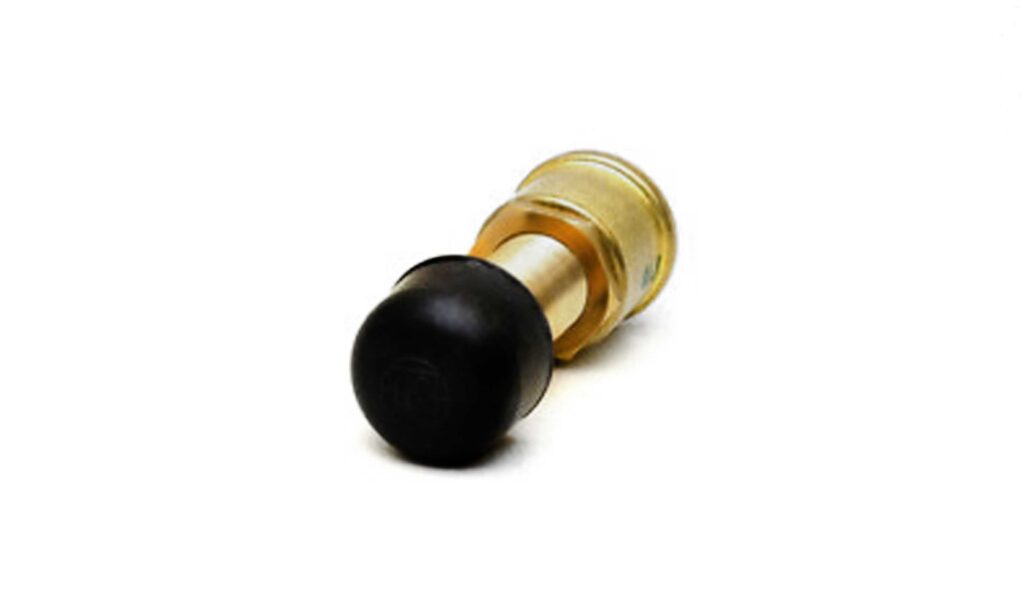

Cole Hersee M-626-BX Pushbutton Switch Sealed Cap-Original
Product Description
- Two brass screw terminals.
- Mounting stem; brass 5/8″ -32 thread, 1 3/8: (34.9mm) long, fits panels up to 1 (25.4mm) thick.
- Silver contacts.
- With snap-on black rubber cap item # 407-03.
| Switch type | Pushbutton momentary |
| Description | Marine construction |
| Normal position | Normally Off, push to On |
| Circuitry | SPST |
| Terminals | Two brass screw |
| Mounting stem thread | brass 5/8″ -32, 1 3/8″ long (34.9mm) |
| Case material | Brass |
| Contacts | Silver |
| Current rating at 12 VDC | 35A at 12V, 20A at 24V, 10A at 36V DC |
