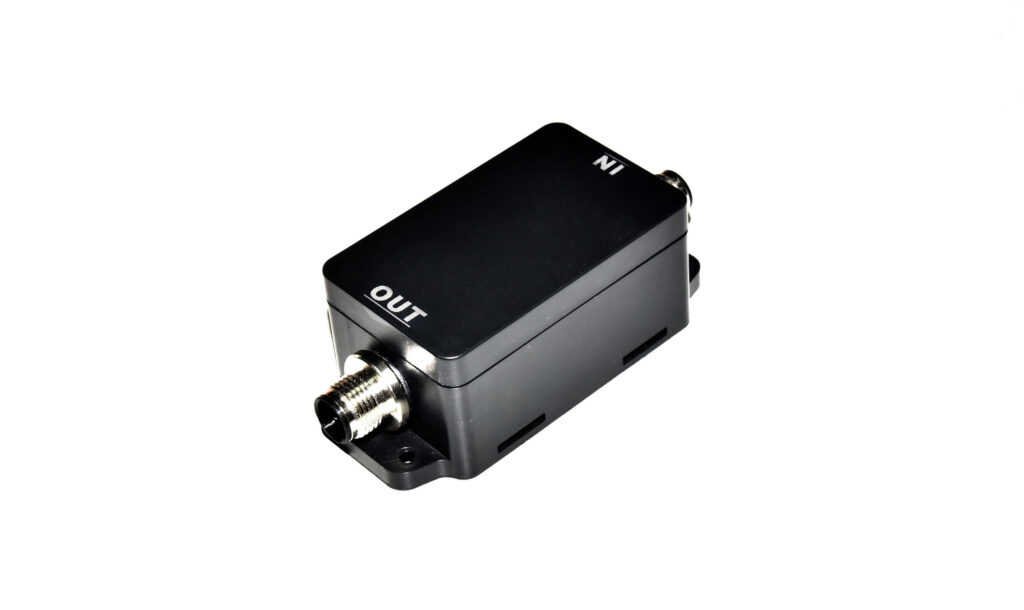

NJ/JN Gateway converter
NJ gateway is used for converting the engine speed, oil pressure, temperature, and voltage date in the NMEA 2000 network into the corresponding information in the J1939 network. JN gateway is used for converting the engine speed, oil pressure, temperature, and voltage data in the J1939 network into the corresponding information in the NMEA 2000 network.
Features:
Features:
- Easily installed, can use screw or ribbon to fix
- Easy to use, don’t need extra setting
- Standard Micro-C connector
- Water proof level IP65
Specifications:
- Dimension: 93.8 x 39.6 x 32.3mm
- Product Name: JN/JX200068 (J1939-NMEA2000)
- NJ/JX200069 (NMEA2000-J1939)
- Weight: 76g
- Operating Voltage: 9~16V
- Power Consumption: <50mA
- Load Equivalence Number(LEN): 1
- Operating Temperature: -30~+75°C
- Storage Temperature: -40~+80°C
- Protection Rating: IP65
