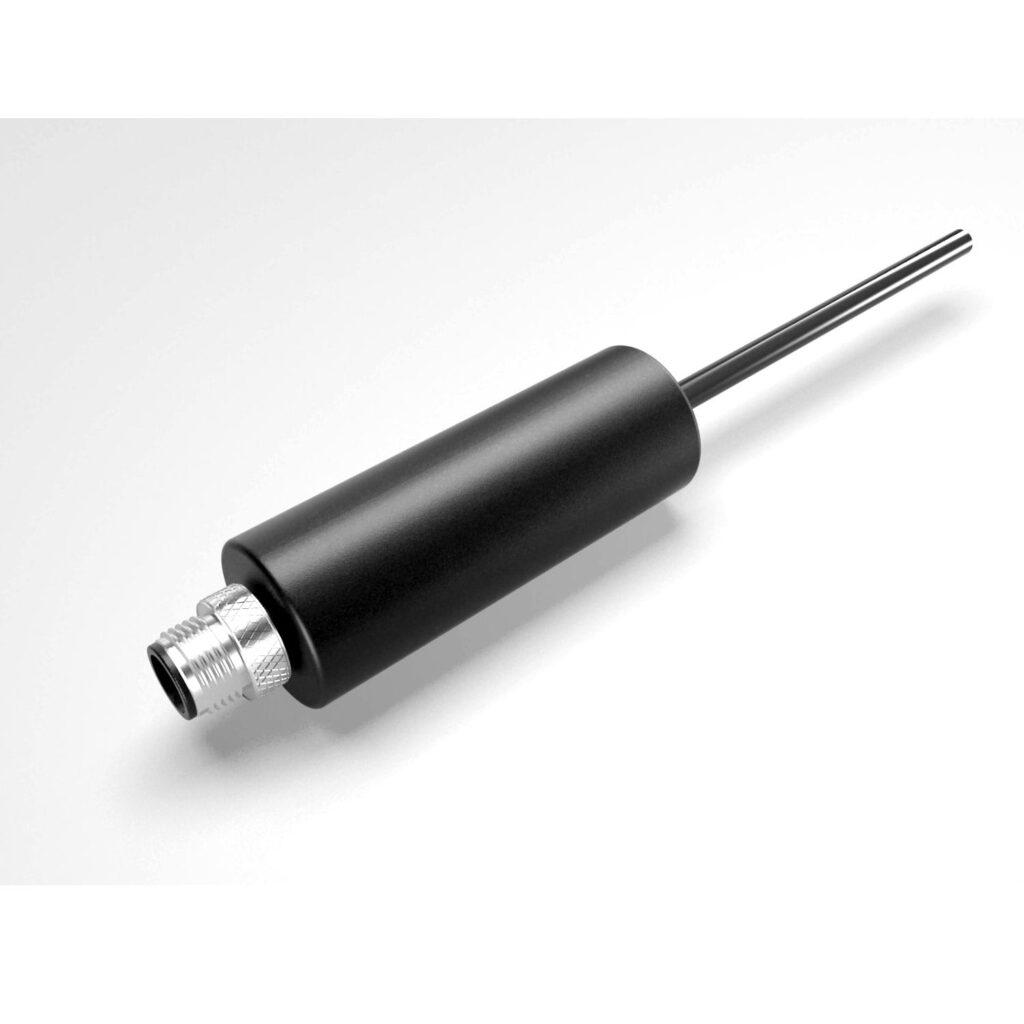

NMEA 2000 Converter
The NKC43 (0-180 ohm) is a universal adapter that allows one to connect the existing analog fuel, fresh water, waste water, live well, oil pressure, black water sensors to the NMEA 2000 network.
Features:
- NKC series attaches directly into NMEA 2000 networks of comparable engines, transmissions and gen-sets and converts the signals to the NMEA 2000
- NMEA 2000 output for use with on board device
- NKC series can be used to get engine data, tank levels, alarm status, generic pressure and temperature indications from any resistive sensors.
-
- Programmable sensor types including fuel, fresh water, waste water, live water, oil, and black water.
- Programmable sensor number up to 16 per sensor type
-
- Adapts analog resistive to NMEA 2000 network 0-190 Ohms.
Specifications:
- Item No.: 1 Channels (JX200066)
- Protection Rating: IP67
- Signal Output: NMEA 2000/J1939 Network Messages
- Operating Voltage: 8~16V
- Connector: Male “Micro-C” Pinout
- Operation Temperature: -40°F ~ +185°F(-40°C~+85°C)
- Mac Current: 50mA
|
