VDO LINK UP GATEWAY – PYROMETER

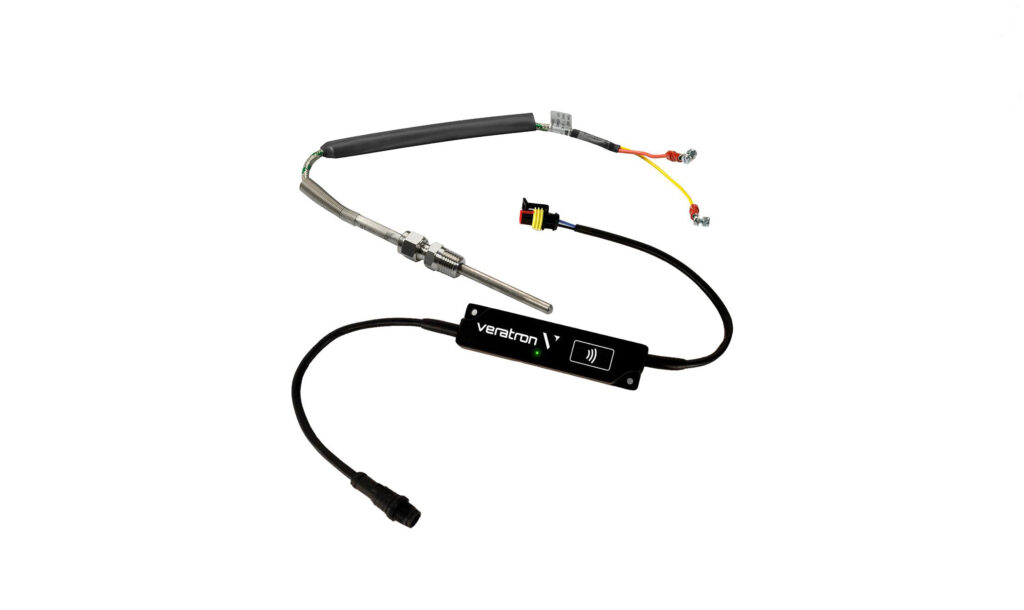

LinkUp – Pyrometer Kit
The system includes a Veratron LinkUp Gateway Module that enables the Pyrometer Sensor to be connected to and compatible with the NMEA 2000 network. Its internal galvanic isolation decouples the backbone power from the LinkUp power supply, per NMEA requirement.
Configuring a LinkUp gateway is simple using a mobile device and the companion Veratron app available from the App Store and Google Play. Each module has a built-in passive wireless antenna. The parameters of the sensor are configured to type, instance, and warning threshold on the mobile device and then tapped against the LinkUp device for instant data download.
Alternatively, LinkUp devices can be configured via NMEA 2000 with the PC Configuration Tool. This method additionally allows for the real-time reading of the analog signal. An LED on the device will illuminate, notifying the user that the LinkUp is being configured.
*Includes sensor and Link Up Gateway.
Features:
- NMEA 2000® certified
- Wireless configuration through companion mobile App
- Status LED
- Plug-and-Play installation and configuration
- Input Signal – LIN bus
- Nominal Voltage – 12V
*Sold as an Individual
Specifications:
- Series: LinkUp
- Gauge Type: Pyrometer
- Gauge Size: N/A
- Voltage – Input Range (Volts): 12V
- Box Set: No
- Box Dimensions: 4″H x 4″W x 16″L WT: 1.4 lbs
