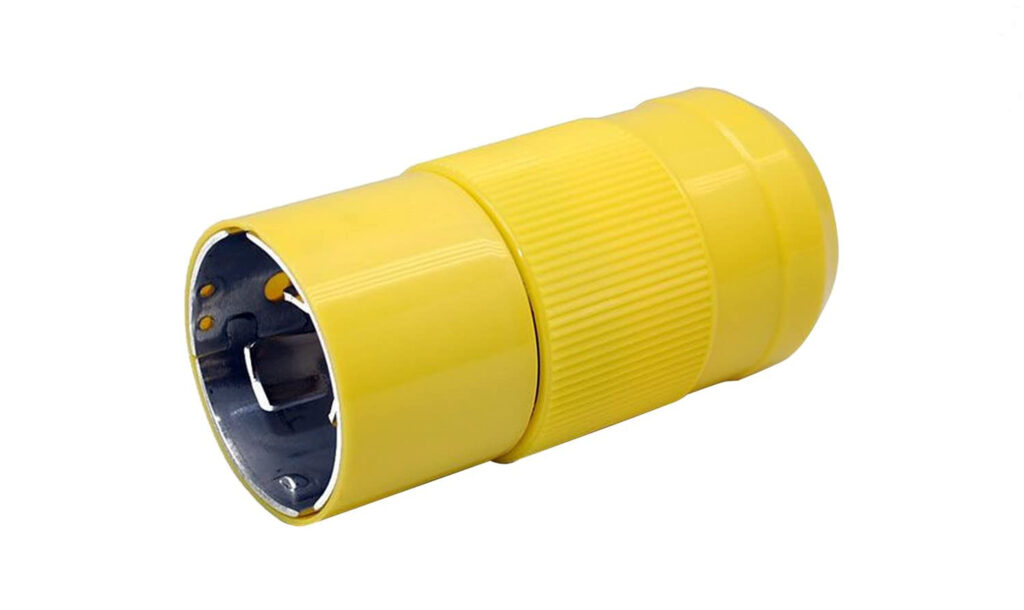

Marinco Male Plug, 50A 125V
Key Features
- Replacement connector for 50A 125V shore power cords
- Internal self-centering cord clamp provides excellent strain relief
- Color-coded terminal pockets and screws guide wire installation
- Dust seal keeps contaminants out of terminals
- NEMA SS-1 connection
- Cable Size: 6-3AWG
- Conductors:3-pole, 3-wire grounding
- Nylon plug body, nickel-plated brass contacts, stainless steel assembly screws
- Covers sold separately: Cover (Marinco part No. 7717N-Yellow, 102182-White)
- Approvals:UL listed (File E57672) CSA certified (File 81290_0_000)
| Amperage | 50 Amps |
|---|---|
| Type | Plugs |
| Voltage | 125 Volts |
Specification sheet: https://acdcmarineinc.com/wp-content/uploads/2021/02/351812-35352.pdf
Wiring Guide: https://acdcmarineinc.com/wp-content/uploads/2021/02/317663-39202.pdf
