Circuit Breaker Custom Enclosure Box
Dimension (Box Outside) : 7.71 x 7.71 x 5.90 in / 195.83 x 195.83 x 149.86 mm. / 2.60 lbs
Kit Includes:

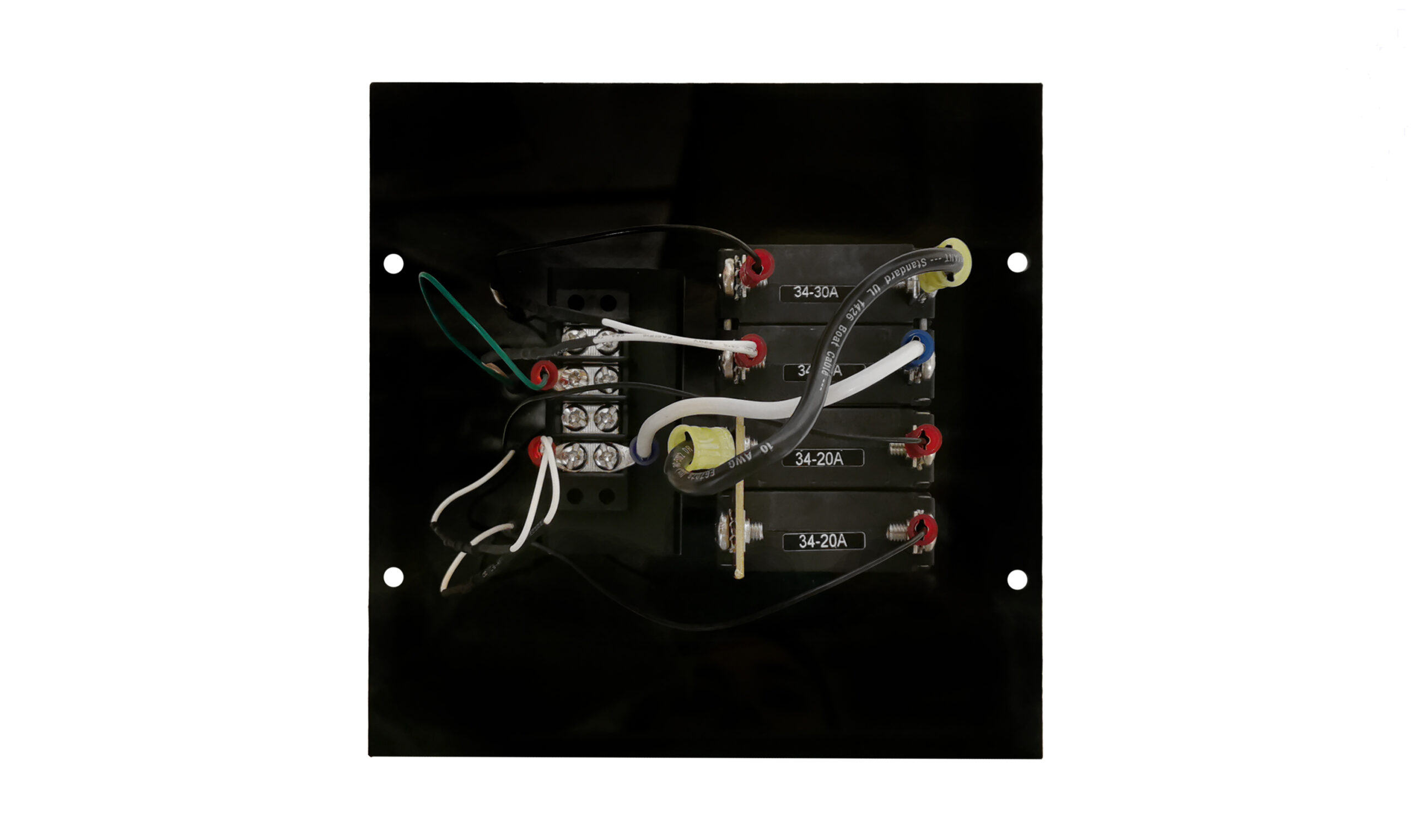

- Circuit Breaker Custom Panel
- Fiberglass reinforced polycarbonate base and polycarbonate box NEMA 1, 2, 4, and 4X rated with hinged cover
Grey box, black panel
Panel Futures:
- 30 Amp Double Pole Main circuit breaker selector switch
- Two 20 Amp single Pole circuit breaker selector switches
Hinged NEMA Enclosure Box Futures:
- NEMA 1, 2, 4, and 4X rated
- Designed to IP65 and IP66 specifications
- Outdoor versions are polycarbonate/PBT blend, the indoor version is ABS plastic
- Foam gasket makes enclosure ideal for use in a wide range of adverse conditions
- All-plastic design including hinge pins and latches and molded-in padlocking feature
- Includes stainless steel wall mounting hardware
- 36 PCB mounting bosses in base
| Specifications 30 Amp Double Pole Main circuit breaker | |
|---|---|
| Amperage | 30A AC 30A DC |
| Color | White |
| Actuator Style | Toggle |
| Poles | 2 |
| Maximum Voltage | 120V AC 240V AC 65V DC |
| Circuit Breaker Type | Magnetic Hydraulic – trip free |
| Interrupt Capacity | 3000A @ 120V AC 3000A @ 240V AC 1500A @ 240V AC [TUV] 3000A @ 240V AC [UL 1077] 7500A @ 65V DC |
| Minimum Operating Temperature | -40° C |
| Maximum Operating Temperature | 85° C |
| Mounting Screw | #6-32 Stainless Steel |
| Mounting Screw Torque | 6 in-lb (0.68 Nm) |
| Screw Terminal Torque | 14 in-lb (1.58 Nm) |
| Switching Cycles | 10000 |
| Terminal Screws | #10-32 Stainless Steel |
| Weight | 0.30lb (0.14 kg) |
| Specifications 20 Amp single Pole circuit breaker | |
|---|---|
| Amperage | 20A AC 20A DC |
| Color | White |
| Actuator Style | Toggle |
| Poles | 1 |
| Maximum Voltage | 240V AC 65V DC |
| Circuit Breaker Type | Magnetic Hydraulic – trip free |
| Interrupt Capacity | 3000A @ 120V AC 1500A @ 240V AC [TUV] 3000A @ 240V AC [UL 1077] 7500A @ 65V DC |
| Minimum Operating Temperature | -40° C |
| Maximum Operating Temperature | 85° C |
| Mounting Screw | #6-32 Stainless Steel |
| Mounting Screw Torque | 6 in-lb (0.68 Nm) |
| Screw Terminal Torque | 14 in-lb (1.58 Nm) |
| Switching Cycles | 10000 |
| Terminal Screws | #10-32 Stainless Steel |
| Weight | 0.17lb (0.08 kg) |
