Description
Battery Distribution Switch Box
Dimension (Box Outside) : 13.74 x 9.82 x 5.88 in / 349.00 x 249.43 x 149.35 mm. / 3.08 lbs
Kit Includes:

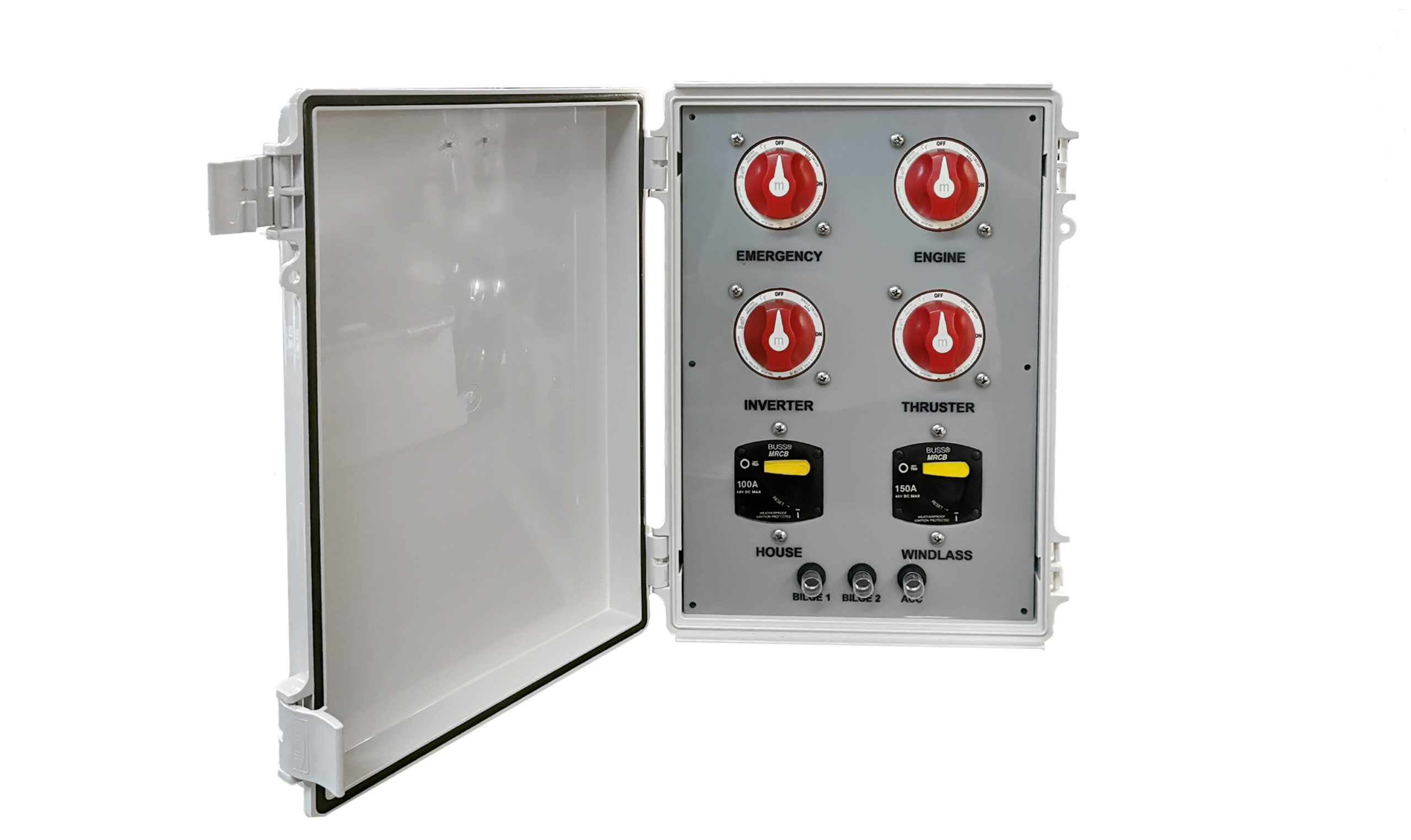

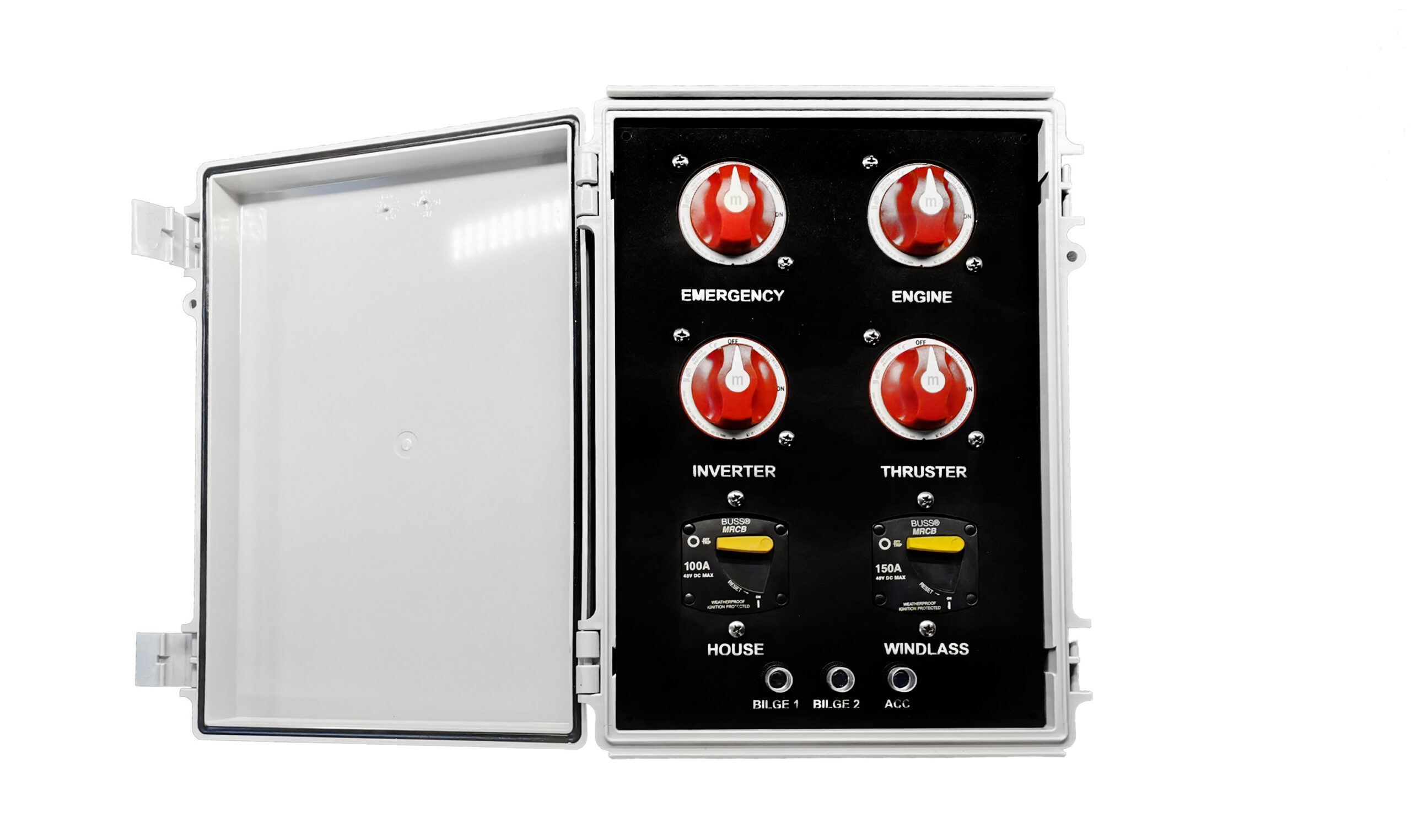

- Battery Switch Panel with battery switches and circuit breakers
- Fiberglass reinforced polycarbonate base and polycarbonate box NEMA 1, 2, 4, and 4X rated with hinged cover
Grey box, black or grey panel (your choice)

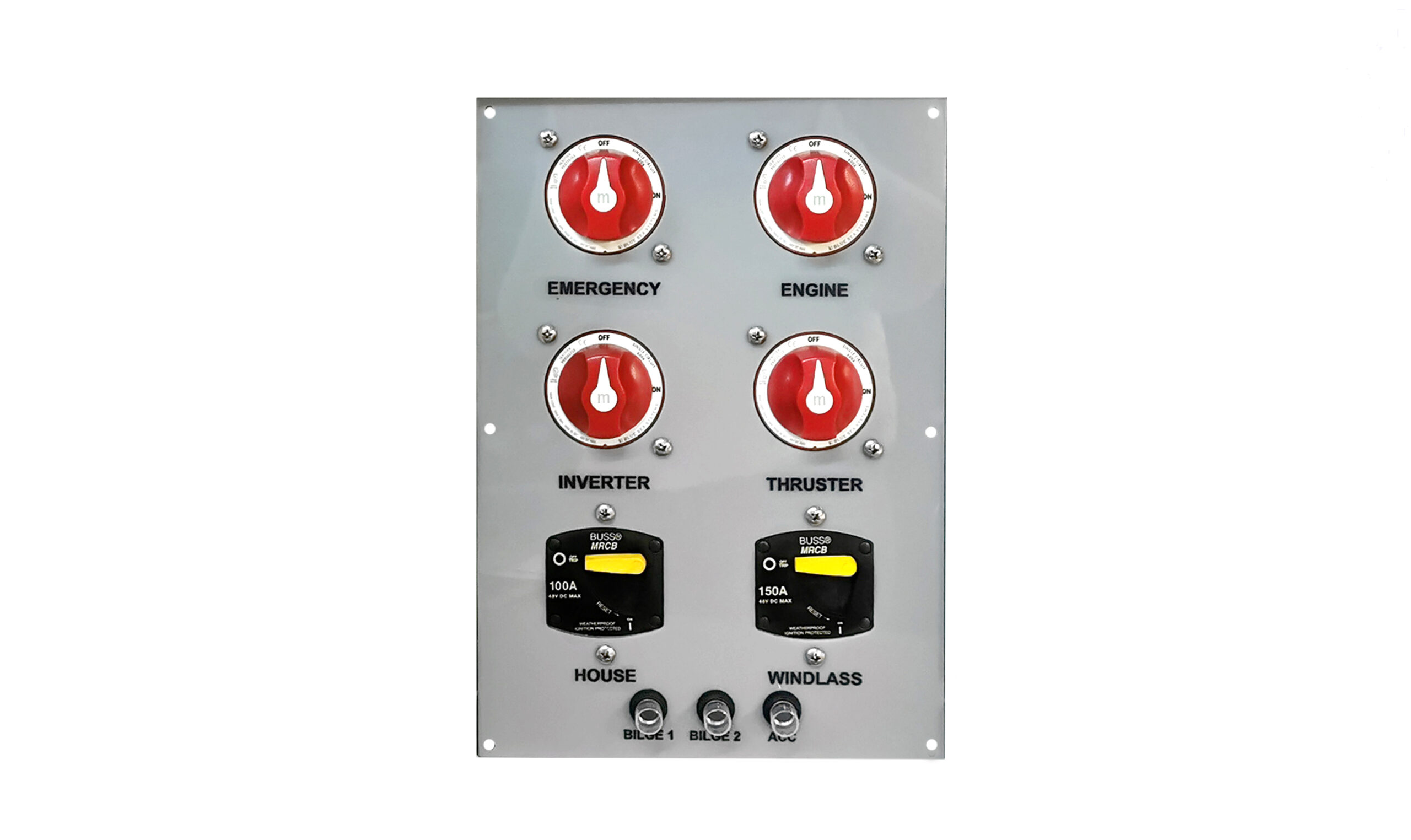

Panel Futures:
- Engine Starting Battery Switch (OFF-ON)
- Battery Emergency Start Switch (OFF-ON)
- Thruster Battery Switch (OFF-ON)
- Inverter Battery Switch (OFF-ON)
- House Switchable Circuit Breaker (100A, 150A, or 200A)
- Windlass Switchable Circuit Breaker (100A, 150A, or 200A)
- Two Bilge Pump Circuit Breakers (5A, 7A, 8A, 10A, 12A, 15A, or 20A)
- Accessory Hot or Switched Circuit Breaker (10A, 15A, or 20A)

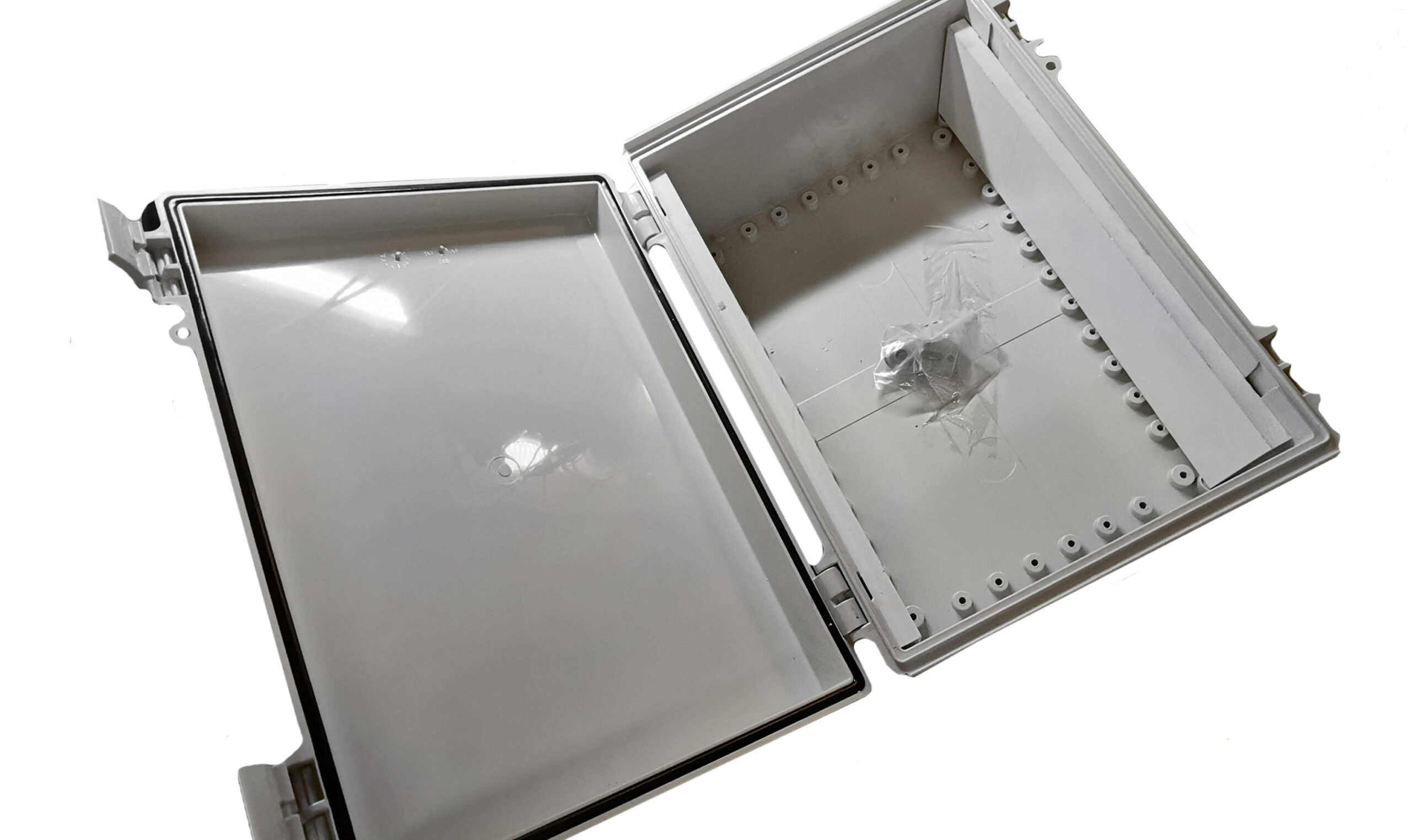

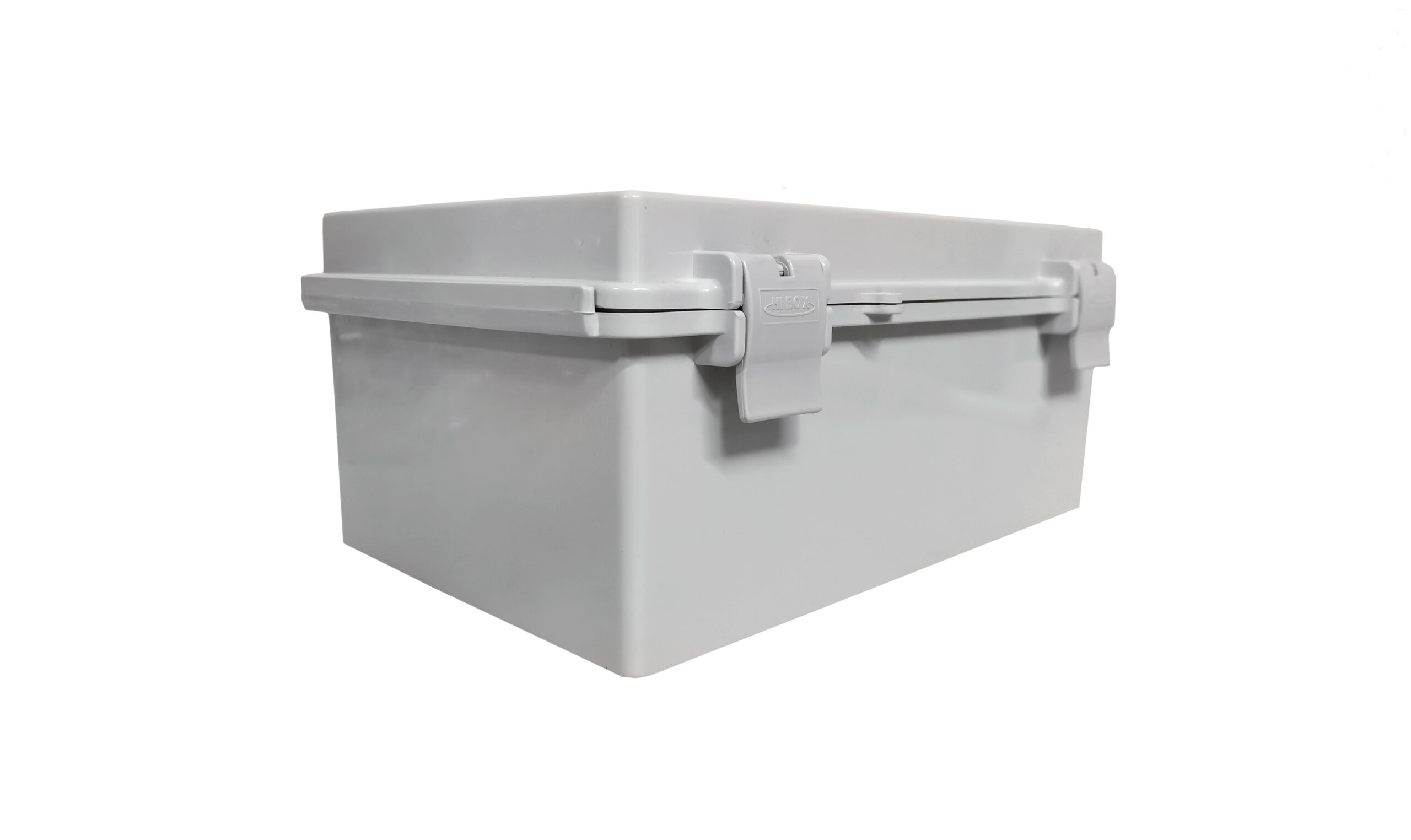

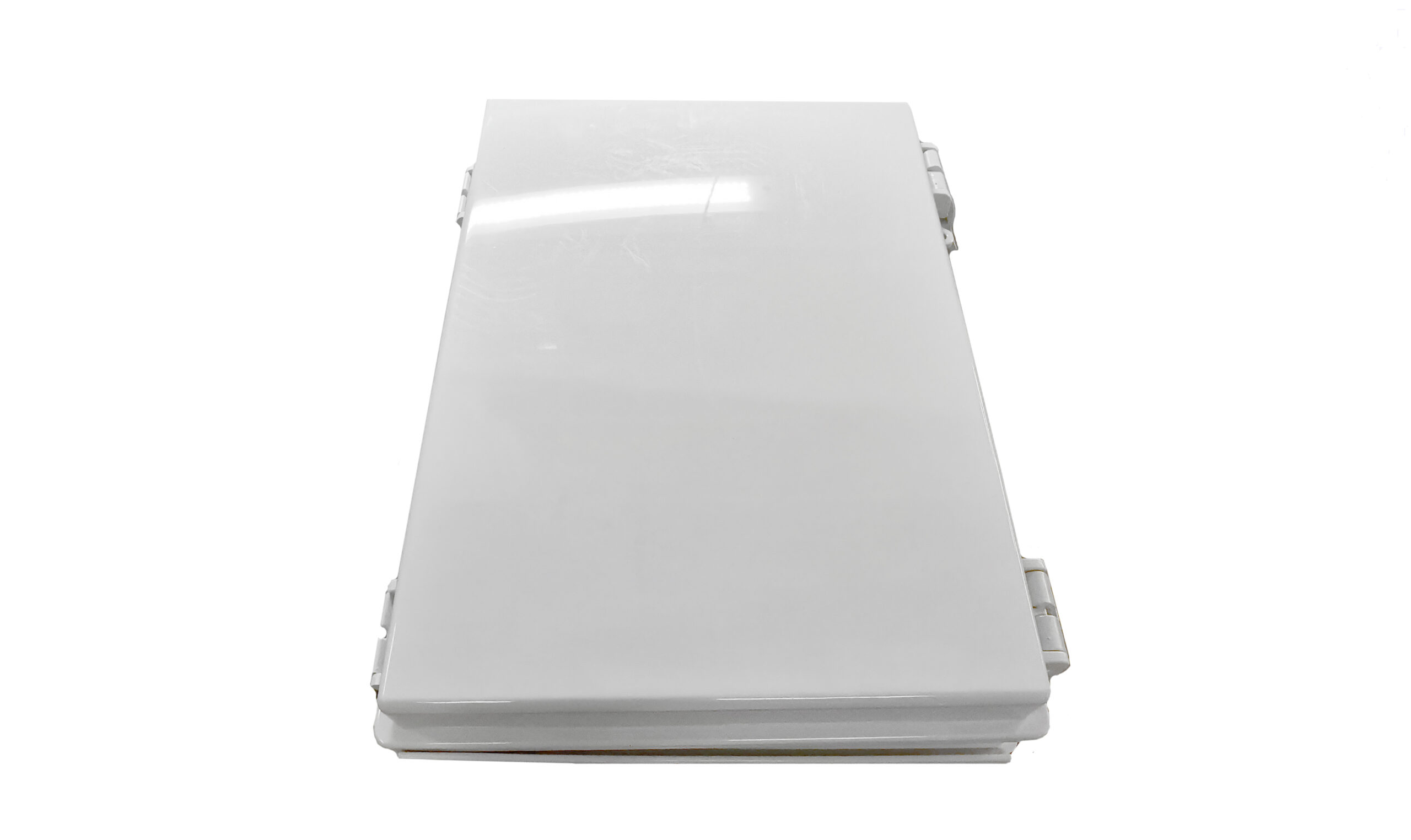

Hinged NEMA Enclosure Box Futures:
- NEMA 1, 2, 4, and 4X rated
- Designed to IP65 and IP66 specifications
- Outdoor versions are polycarbonate/PBT blend, the indoor version is ABS plastic
- Foam gasket makes enclosure ideal for use in a wide range of adverse conditions
- All-plastic design including hinge pins and latches and molded-in padlocking feature
- Includes stainless steel wall mounting hardware
- 36 PCB mounting bosses in base
Battery Switch Futures:
| Specifications | |
| Switch Type | Single Circuit ON-OFF |
| Color | Red |
| Switch Positions | 2 |
| Battery Combine | No |
| Alternator Field Disconnect | No |
| Maximum Voltage | 48V DC |
| Stud Size | 3/8″ |
| Terminal Stud Torque | 120 in-lb (13.56 Nm) |
| Continuous Rating | 300A |
| Intermittent Rating | 500A (5 min) |
| Cranking Rating 30 sec | 900A |
| Battery Inputs | 1 |
| Cable Clearance For 4/0 AWG Cables | 1.12in (28.45 mm) |
| Cable Size to Meet Ratings | 4/0 AWG (120mm²) |
| Mounting Holes | Accept #10 Screw |
| Stud Material | Tinned Copper |
| Stud Torque | 120 in-lb (13.56 Nm) |
| Terminal Stud Size | 3/8″ – 16 (M10) |
Circuit Breaker – Panel Mount Specification:
- Combines switching and circuit protection into a single device*
- Clear, single lever operation
- “Trip Free” design cannot be held “ON” during fault current condition
- Waterproof
- Recessed mounting holes for a clean appearance
- Large Clearance around terminal studs accept heavy gauge wire lugs
- Robust 5/16 M8 terminals provide high torque connections
- Large lever with vertical/horizontal orientation provides an indication of trip status
- Ignition protected – safe for installation aboard gasoline powered boats
