Description

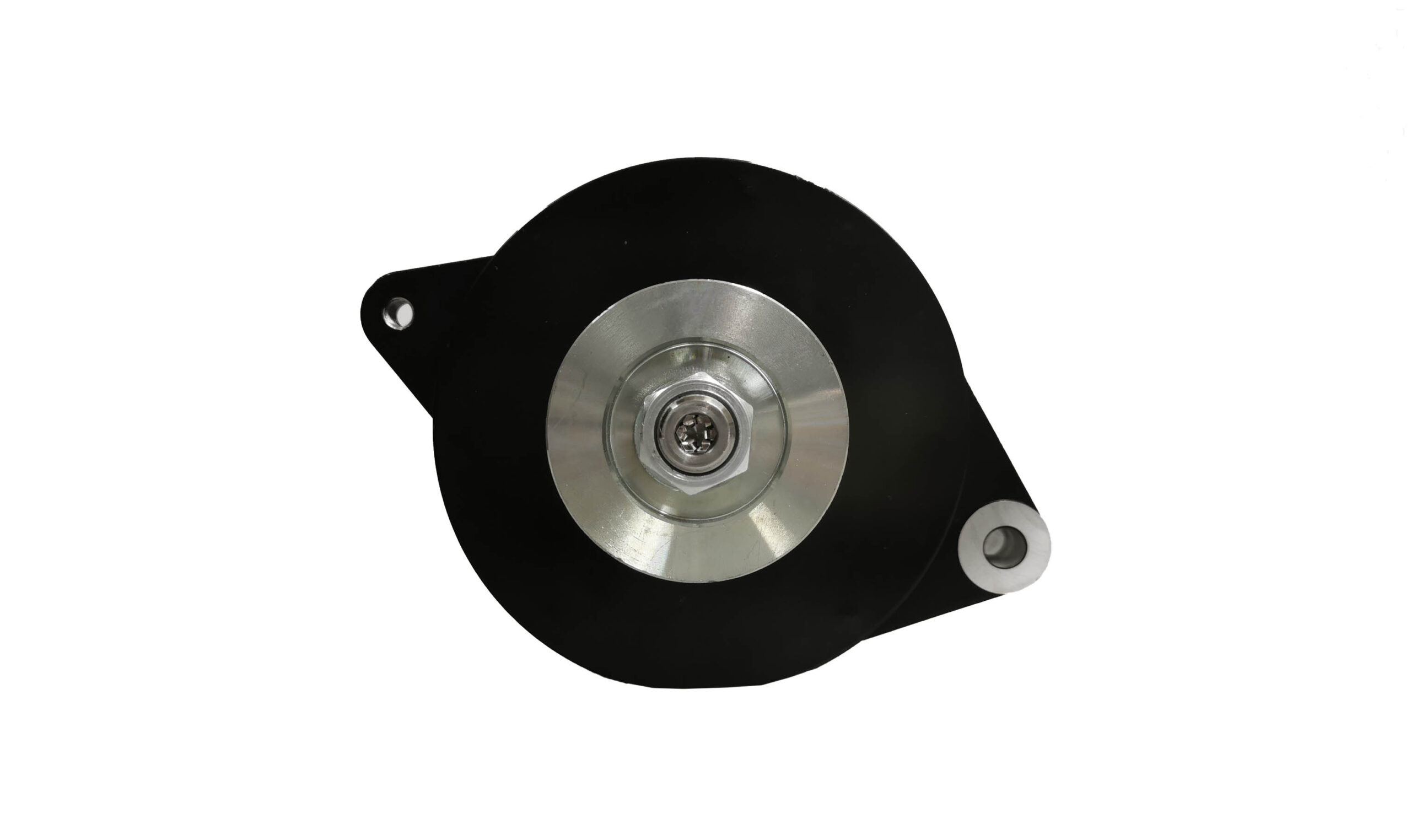

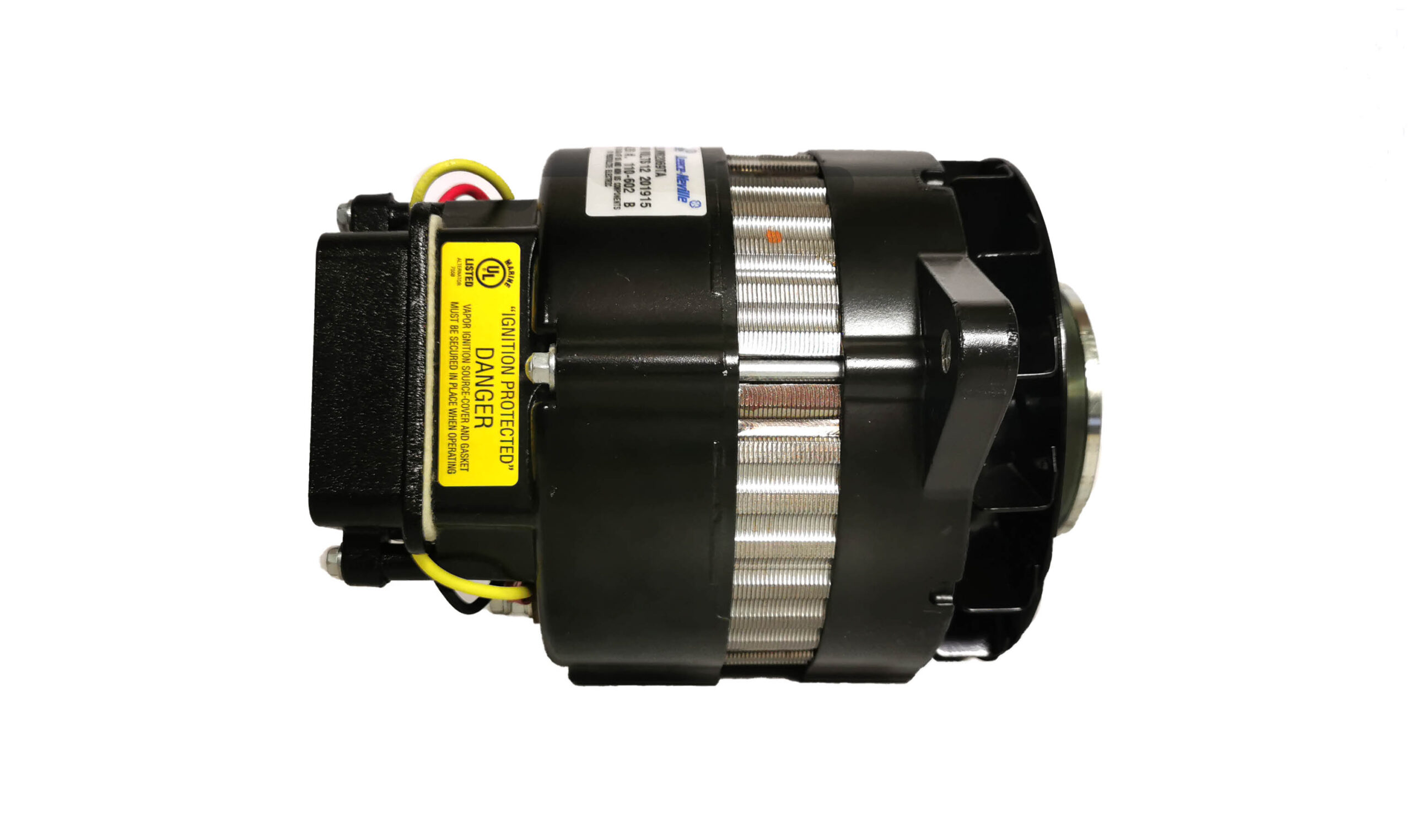

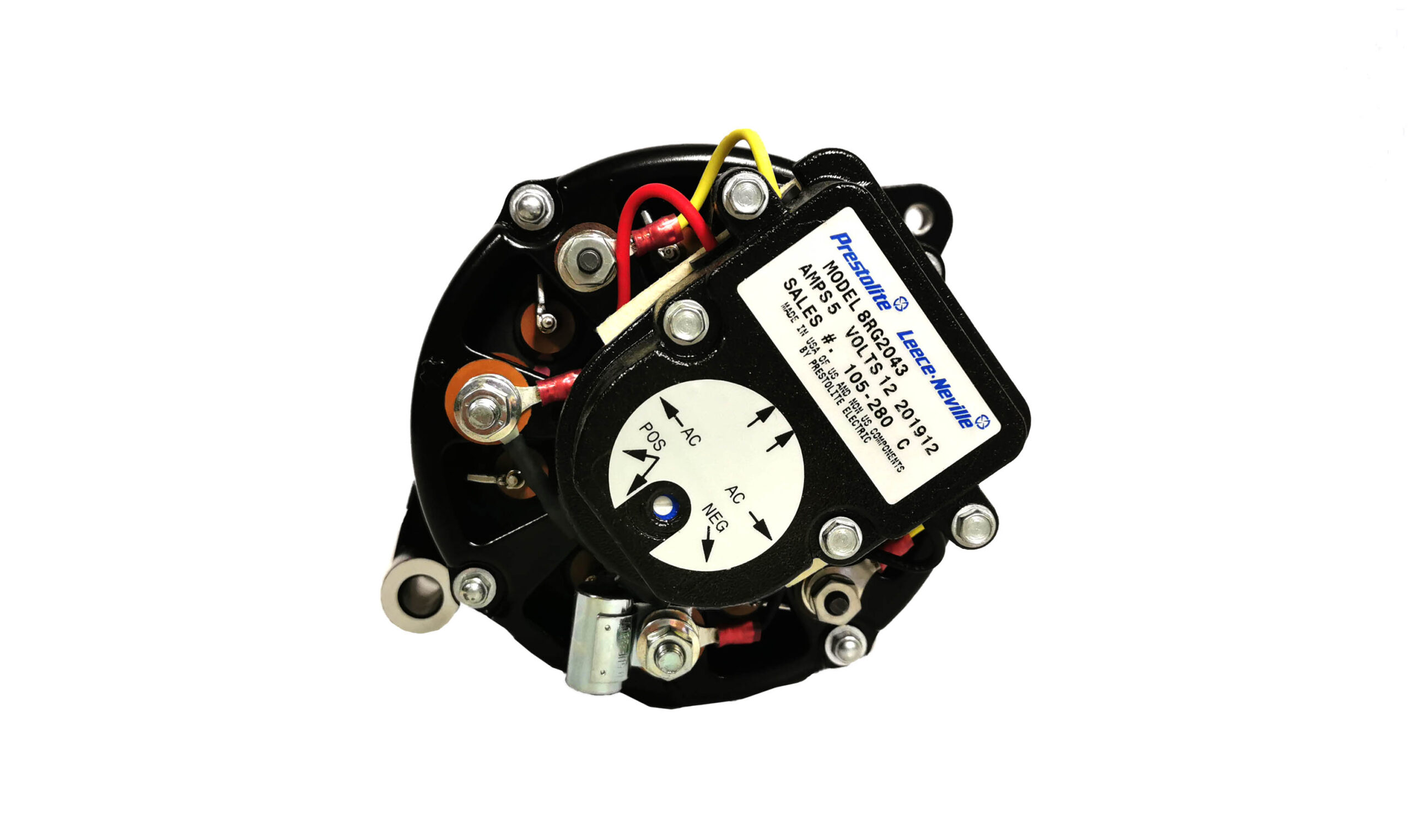

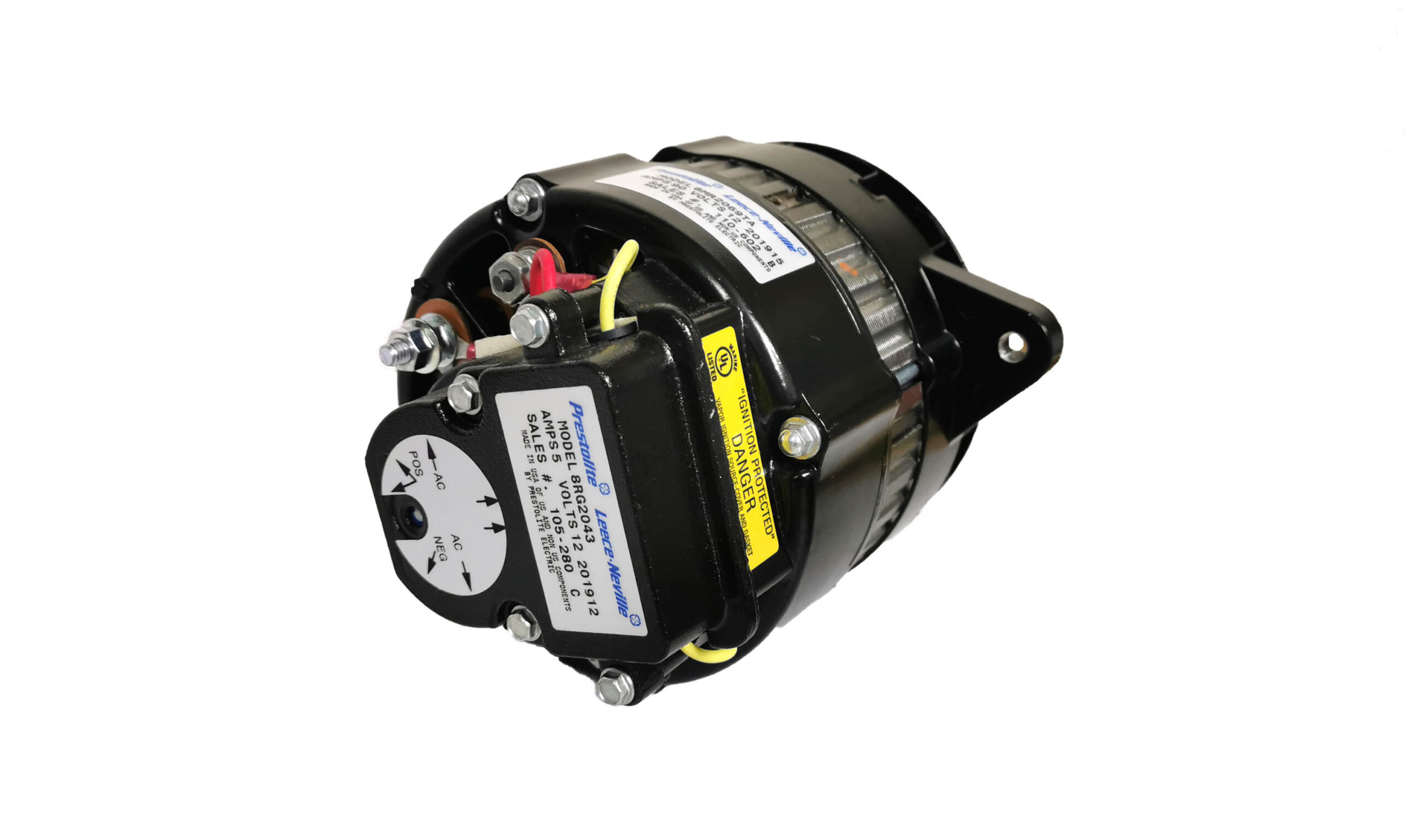

Boat Alternator Leece Neville 14 Volt 90
Amp USA Built
Self-excited insulated ground marine
100% New, 1 Year Warranty from manufacturer
from AC DC Marine Inc.
ship from CALIFORNIA
Best customer support
Product Specifications
*Pulley included
| Spec | Value |
|---|---|
| Item number | 8MR2069TA |
| Sales number | 110-602 |
| Series number | 8MA-8MH-8MR |
| Notes | New, Self Excite/ UL approved Fix circle (Mount): 82.3mm Fix circle (Adjuster): 83.31mm Bracket angle: 0° Cut in speed: 1500, Max speed: 8000 Weight: 5.33kg |
| System voltage | 12 |
| Output | 90 |
| Mounting style | SPOOL |
| Dimensions in | N/A |
| Rotation | BI-DIRECTIONAL |
| Housing coating | E-COAT |
| UL Approved | Yes |
| Mounting bolt size | 10.1-10.4MM |
| Spool length | 2 |
| Mounting ear size | M8 X 1.25 (1 HOLE) |
| Mounting holes | 1 |
| Positive stud size | M6 X 1.0 |
| Negative stud size | M6 X 1.0 |
| Rectifier location | INTERNAL |
| Shaft diameter | 17 MM |
| Excitation type | Self Excite |
| Regulator location | Integral |
| Regulator number | 8RG2043 |
| Diode trio | No |
| Pulley included | No |
| Lamp driver | No |
| Adjustable regulator | Yes |
| Remote sense | No |
| Smart check | No |
| Batteryless | No |
Availability
| Region | Priority / Status |
|---|---|
| USA / Canada | High (A) |
| United Kingdom / Europe | Very low (D) |
Technical Bulletin
| Title / Link | Description |
|---|---|
| 8MR Hardware Kit | Hardware components for 8MR series alternators TSB-3021_8MR_Hardware.pdf (1.7 mb) |
Parts Breakdown
| Title / Link | Description |
|---|---|
| 8MR Service Parts List | Service parts list for 8MR series alternators SP1023_8MR_parts_list_web.pdf (2.6 mb) |
Numbers Our Customers Use
| Company | Part number |
|---|---|
| AMERICAN DIESEL CORP | 824-2034 |
| ASHDOWN INDUSTRIES | 03-29602 |
| ASHDOWN INDUSTRIES | 827880 |
| BAKER MATERIAL HDLG CORP | 160730 |
| CHARLES MACHINE WORKS INC | 345-1743 |
| DAIMLER TRUCKS NORTH AMERICA | LN 110 602 |
| DEUTZ CORPORATION | 303473 |
| DOOSAN INFRACORE | 300901-00135 |
| EUROPART MATERIALS GMBH | 5240082069 |
| HOLGER CHRISTIANSEN A/S | 111575 |
| INTERNATIONAL TRUCK & ENGINE | LN110602 |
| MACK TRUCKS INC 2742 | 5034-110602 |
| PENINSULA ALTERNATOR STARTE | PRS 110-602 |
| STARTAX AUTO ELECTRONICS LTD | 3200-4567 |
| WOOD AUTO SUPPLIES LTD | ALT42008 |
Cross Reference Numbers
| Company | Part number | Comment |
|---|---|---|
| ARCO | 60122 | |
| CARGO | 111575 | |
| CARGO | 111575HC | |
| CASE | ZLN110602 | |
| JOHN DEERE | RE50811 | |
| ORME | VA04019 | |
| STEYR | 21787691 | |
| STEYR – DAIMLER | 2178769/1 |
