Battery Charger COTEK / 12 volts 80 amps/CX 1280 / Marine Grade-Original
CX1280 Features:
•Universal AC input with active PFC
•Suitable for lead acid, Li-ion, Gel and AGM batteries
•3-stage charging mode
•Dry contact for alarm
•Support RS-232 communication protocol
•Voltage temperature compensation
•2 stage fan speed control (sleep mode)
•High efficiency and high reliability
•Built-in battery rescue function
•Triple output design support three batteries
•Protection: Short Circuit / Over Voltage / Over Temperature / Brown-out
•Withstand 2G vibration test
•CE approved
Specification :
| Model | CX1280 |
| Main Features | ◎ Built-in Engine Start Battery (ESB) output ◎3-stage charging mode ◎ Green design (sleep mode): charging with low low audible noise |
| Battery Type
|
Lead Acid / Li-ion / Gel / AGM
|
| Output Voltage
|
12V |
| Standard Boost Charge Voltage
|
14.4V / 14.7V (select by switch)
|
| Standard Float Charge Voltage
|
13.8V / 13.5V (select by switch)
|
| Main Rated Current
|
80A
|
| Main Output (Quantity)
|
3
|
| Input Voltage Range
|
90~264VAC
|
| Efficiency
|
87%
|
| Operating Temperature
|
-20~50℃
|
| Storage Temperature
|
-40~85℃
|
| Safety
|
CE |

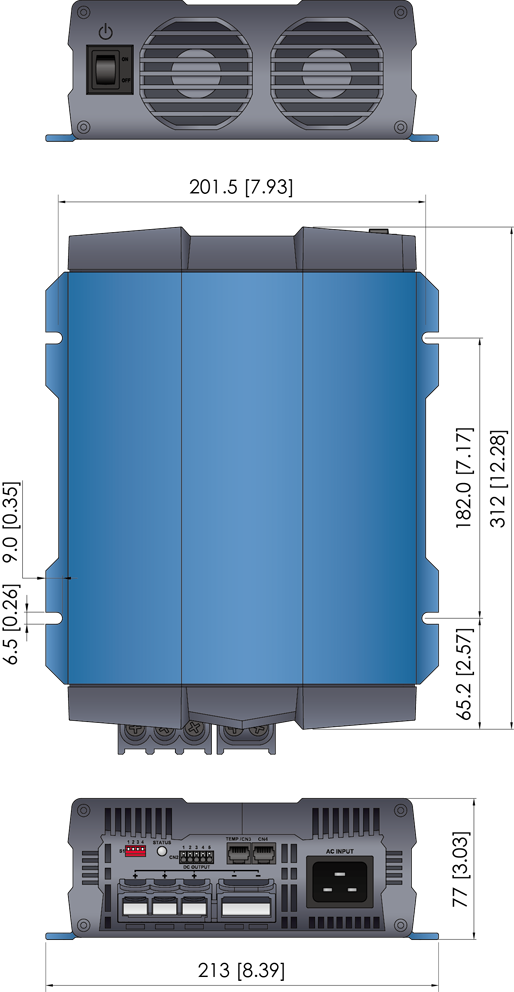

| Dimension (WxHxD)
|
213x77x312 mm
|
| Weight (Net)
|
4 KG
|
