Description

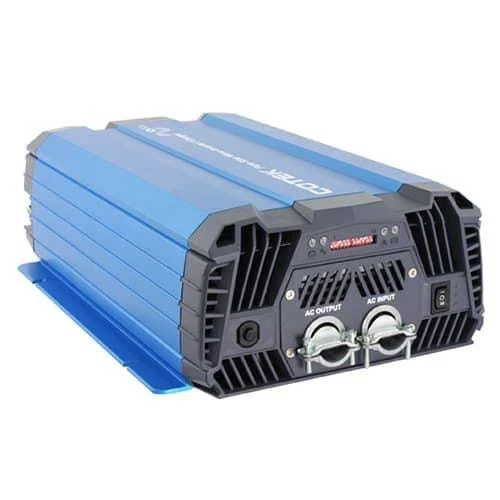

Inverter / Charger Cotek SC-2000 (2000W) with Remote Control
Features
- Bi-directional inverter and charger
- Automatically various operation mode: 1. Inverter mode 2. Charger mode 3. Power Sharing 4. Power Generation 5. Power Support
- 3 stage charging function
- Wide working temperature range ─-20oC ~ 40oC
- UL & CE Certified. Such as UL458 with marine supplement , UL1741, FCC approved
- -20oC~40oC full load operation without derating
- High Power density (1200W @4.55kg, 2000W @ 7.5 kg)
- Remote controller CR-20C
- Charging Compensation via The Temperature Sensor (optional)
Product Specification:
| MODEL | SC-2000 |
| Main Features | ◎ All in one design: Bi-direction inverter and charger ◎ Certified by UL458 with marine supplement ◎ Compact design |
| AC Output Voltage | 100/110/115/120VAC ± 3%; 200/220/230/240VAC ± 3% |
| Rated Power | 2000 W |
| Surge Power | Load 101%~115% (1 Min) ; 4000 VA (2 Sec) |
| Output Waveform | Pure Sine Wave (THD < 5% @ 12.5V/25V/115VAC, linear load) / (THD < 3% @ 12.5V/25V/230VAC, linear load) |
| Frequency | 50/60 Hz ± 0.3 Hz (User-selectable) |
| DC Input Voltage | 12V; 24V |
| DC Input Voltage Range | 10.5 ~ 16.5 VDC; 21 ~ 33 VDC |
| Efficiency | >88% |
| Operating Temperature | -20℃ ~ 40℃, Power De-rating from 40°C to 60°C |
| Storage Temperature | -30 ℃~70 ℃ |
| Safety | UL458 & Supplement SA , FCC class A |
| Dimension (WxHxD) | 251 x 116 x 453mm |
| Weight (Net) | 6 KG |
