Description

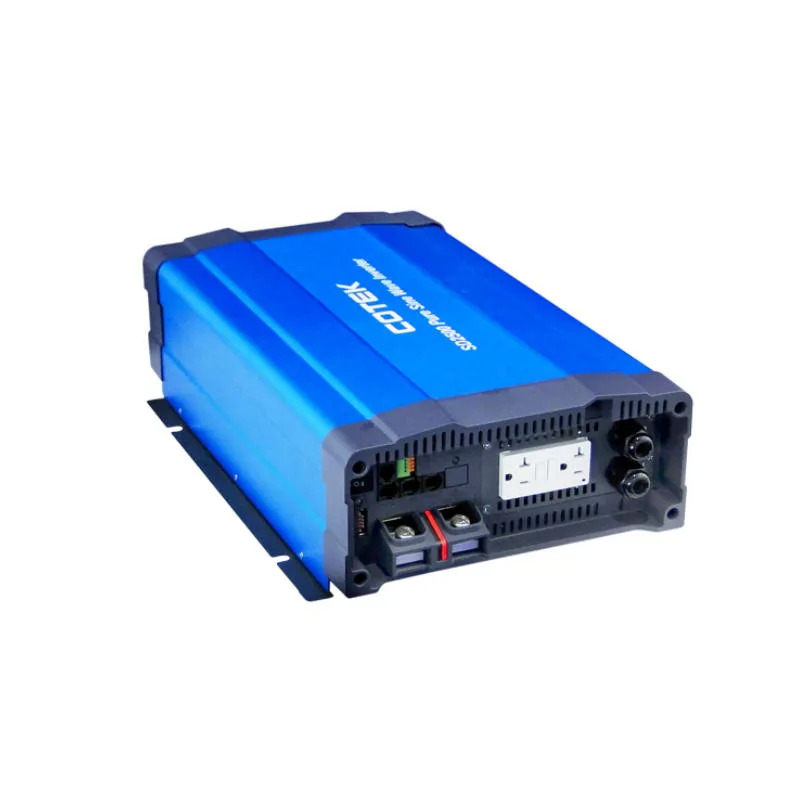

Pure Sine Wave Inverter COTEK SD2500 (2500W) with Remote Control
Features
- Parallel redundancy design for power expansion
- 1Ф3W / 3Ф4W for multiple industrial applications
- Built-in ATS and AC circuit breaker
- Selectable output voltage and output frequency
- Optional STS module, transfer time less than 4ms.
- RS-232 communication interface
- Input & output fully isolation
- Output voltage / power saving mode selectable by DIP switch or remote control (via CR-10)
- Input protection: Reverse Polarity (Fuse) / Under Voltage / Over Voltage
- Output protection: Short Circuit / Overload / Over Temperature / Over Voltage
- E13 / UL / CE / FCC approved
- Accessory: Remote controller CR-10C (Optional, but Recommended)
| MODEL | SD-2500 |
| Main Features | ◎ Output parallelable pure sine wave inveter up to 10.5KW ◎ Support 1Ф3W / 3Ф4W ◎ Built-in AC(Grid) by-pass switch |
| AC Output Voltage | 100/110/115/120VAC ± 3%; 200/220/230/240VAC ± 3% |
| Rated Power | 2500W |
| Surge Power | 4000W |
| Output Waveform | Pure Sine Wave |
| Frequency | 50/60 Hz ± 0.1% |
| DC Input Voltage | 12V; 24V; 48V |
| DC Input Voltage Range | 10~16VDC; 20~32VDC; 40~64VDC |
| Efficiency | 88%; 89%; 90%; 88%; 88%; 90% |
| Operating Temperature | -20~60℃, refer to de-rating curve |
| Storage Temperature | -40~70℃ |
| Safety | CE / FCC / UL (only for 112/124 Hard wire) / E13 |
| Dimension (WxHxD) | 283x128x436 mm |
| Weight (Net) | 8 KG |
| Socket Type | GFCI / NEMA 5-15R / GE / AU / UK / Hard Wire |
