Product Number: 3000Description

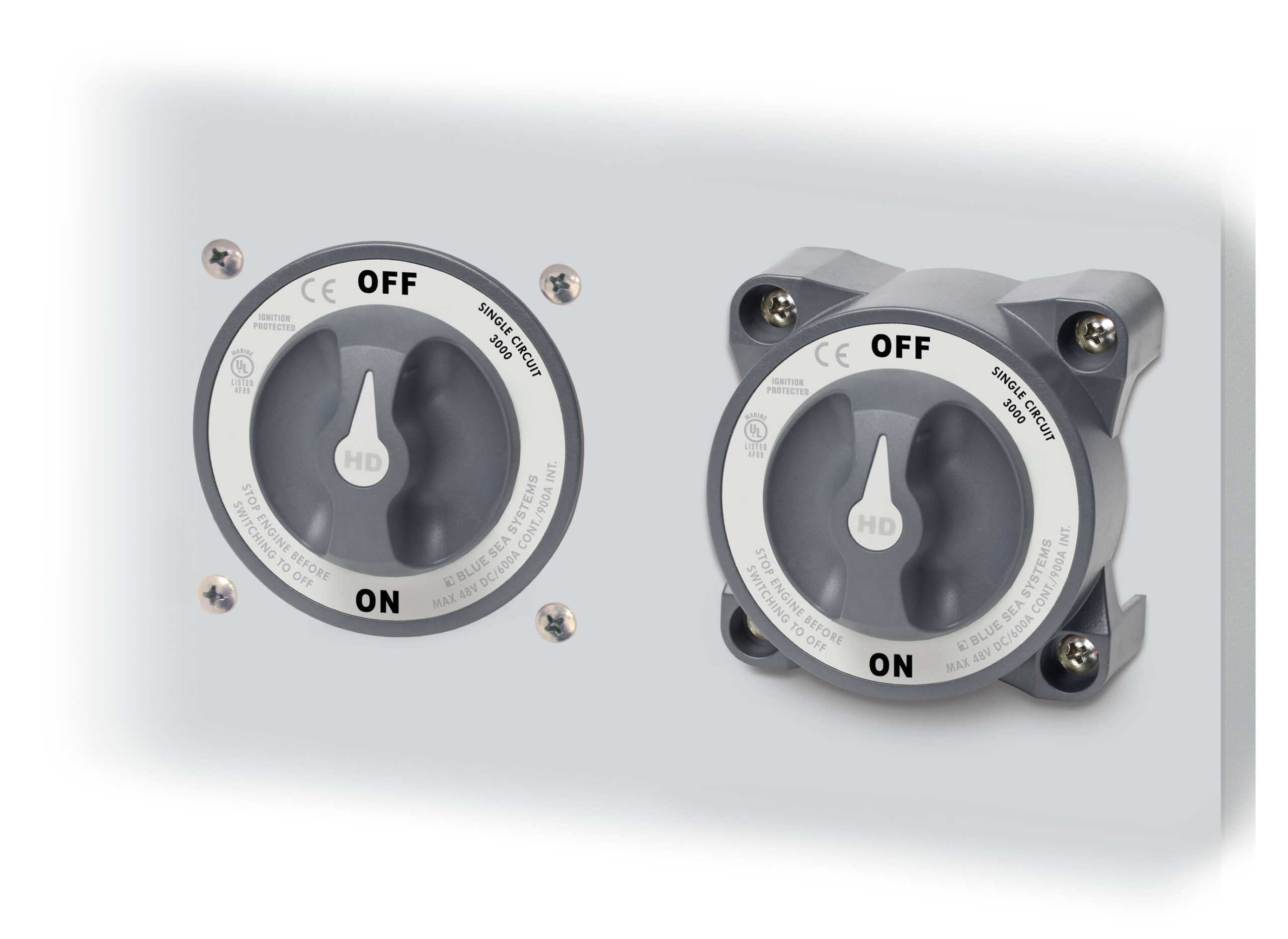

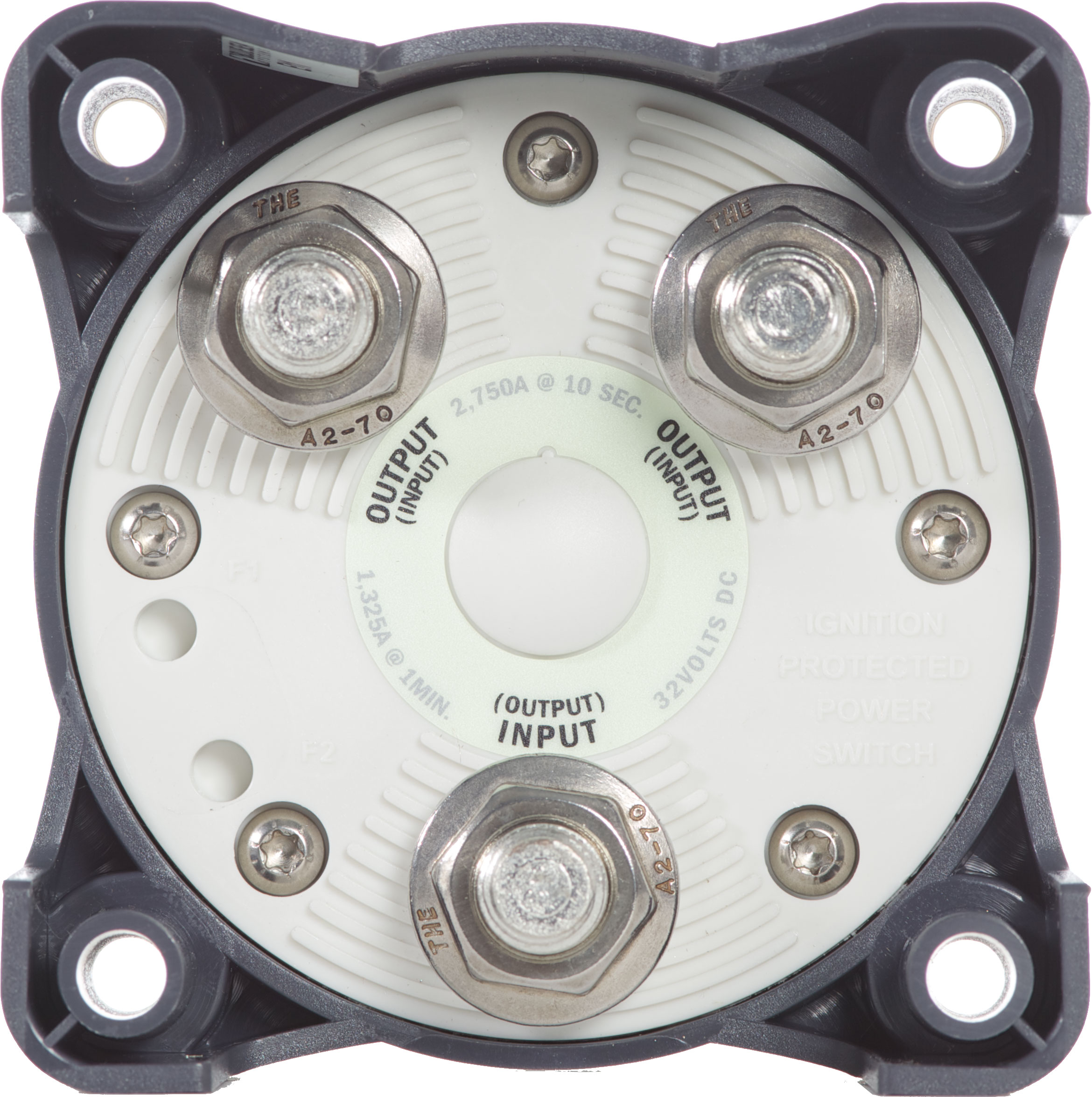

Blue Sea HD-Series Heavy Duty On-Off Battery Switch 3000
| Specifications | |
|---|---|
| Switch Type | Single Circuit ON-OFF |
| Color | Grey |
| Switch Positions | 2 |
| Battery Combine | No |
| Alternator Field Disconnect | No |
| Maximum Voltage | 32V DC |
| Terminal Stud Torque | 220 in-lb (24.86 Nm) |
| Continuous Rating | 600A |
| Intermittent Rating | 900A (5 min) |
| Cranking Rating 30 sec | 1750A |
| Battery Inputs | 1 |
| Cable Clearance For 4/0 AWG Cables | 1.10in (27.94 mm) |
| Cable Quantity to Meet Ratings | Two Cables |
| Cable Size to Meet Ratings | 4/0 AWG (120mm²) |
| Mounting Holes | Accept 1/4″ (M6) Screw |
| Terminal Stud Size | 1/2″ (M12) |
| Weight | 1.30lb (0.59 kg) |
