Description

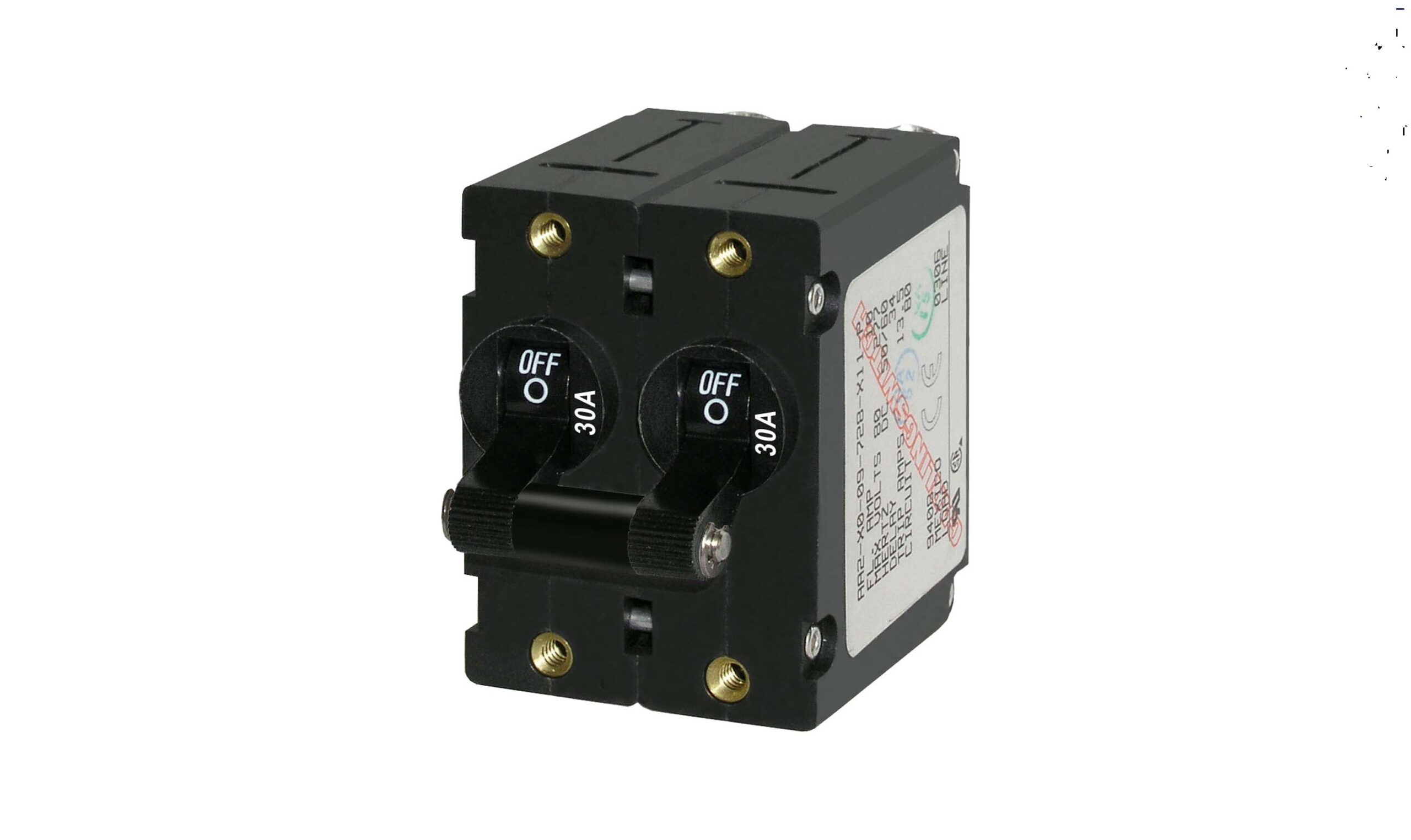

Blue Sea A-Series Black Toggle Circuit Breaker – Double Pole
| Color | Black |
| Actuator Style | Toggle |
| Poles | 2 |
| Maximum Voltage | 250V AC 65V DC |
| Circuit Breaker Type | Magnetic Hydraulic – trip free |
| Interrupt Capacity | 3000A @ 120V AC 3000A @ 240V AC 1500A @ 250V AC [TUV] 3000A @ 250V AC [UL 1077] 7500A @ 65V DC |
| Minimum Operating Temperature | -40° C |
| Maximum Operating Temperature | 85° C |
| Mounting Screw | #6-32 Stainless Steel |
| Mounting Screw Torque | 6 in-lb (0.68 Nm) |
| Screw Terminal Torque | 14 in-lb (1.58 Nm) |
| Switching Cycles | 10000 |
| Terminal Screw | #10-32 Stainless Steel |
| Weight | 0.30lb (0.14 kg) |
