Description

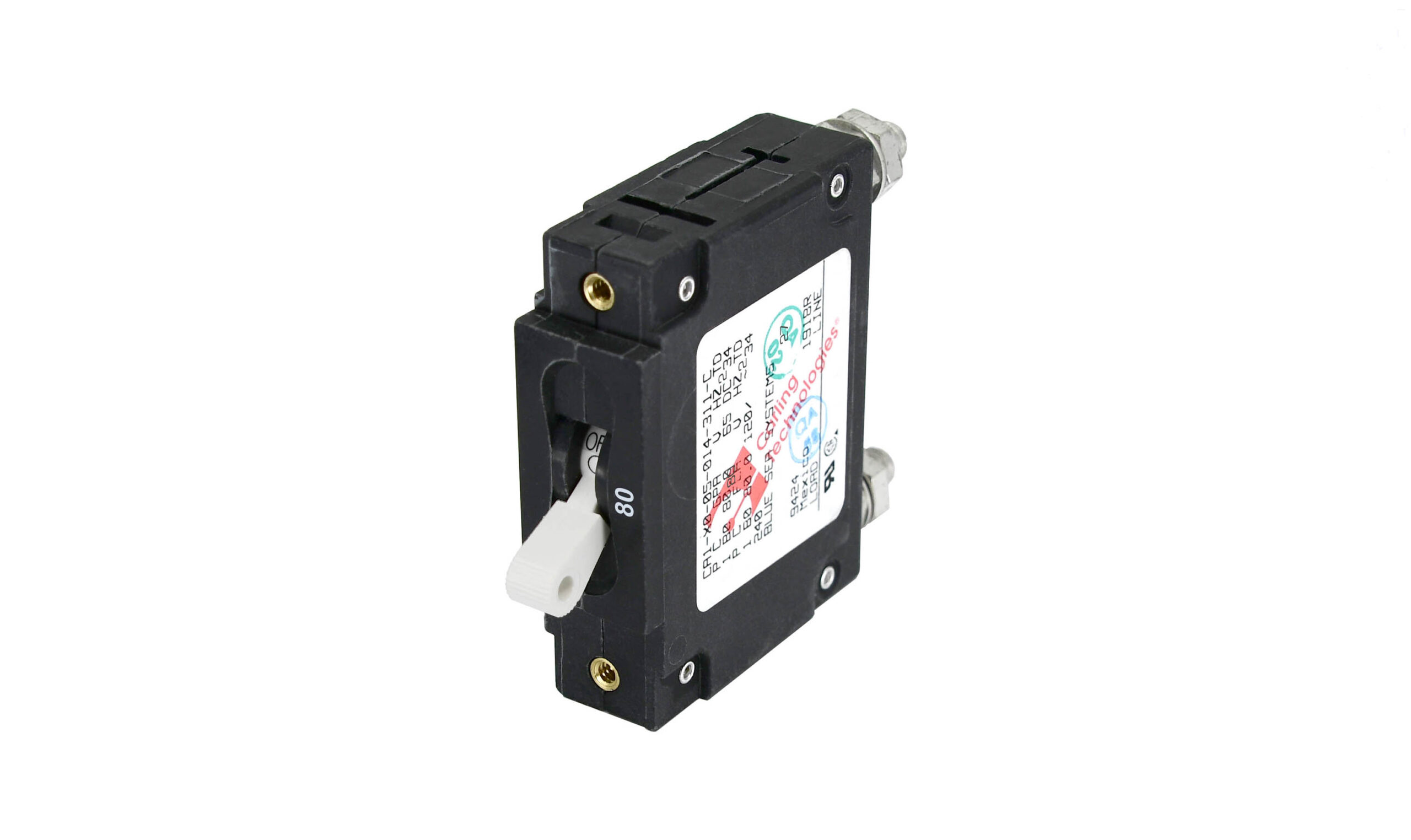

C-Series White Toggle Circuit Breaker – Single Pole 80 Amp
- Provides overcurrent protection for inverters, bow thrusters, and windlasses
- Combines switching and circuit protection into a single device
- “Trip Free”—cannot be held closed after trip
| Color | White |
| Actuator Style | Toggle |
| Poles | 1 |
| Maximum Voltage | 120V AC
65V DC |
| Circuit Breaker Type | Magnetic Hydraulic – trip free |
| Interrupt Capacity | 5000A@125V AC
5000A@240V AC 10000A@80V DC |
| Minimum Operating Temperature | -40° C |
| Maximum Operating Temperature | 85° C |
| Mounting Screw | #6-32 Stainless Steel |
| Mounting Screw Torque | 6 in-lb (0.68 Nm) |
| Screw Terminal Torque | 14 in-lb (1.58 Nm) |
| Switching Cycles | 10000 |
| Terminal Screw | #6-32 Stainless Steel |
| Weight | 0.36lb (0.16 kg) |
