Description

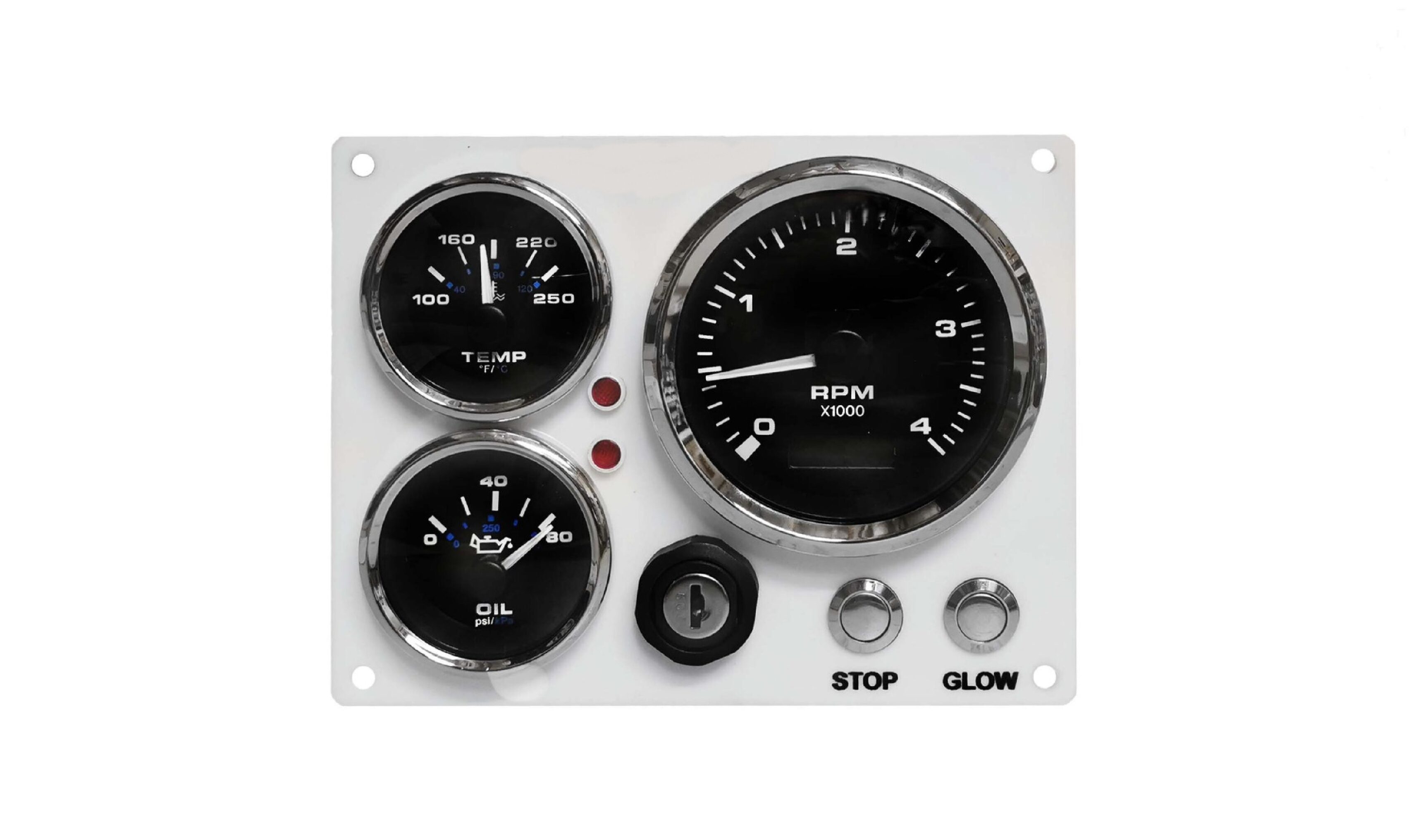

Custom Diesel Engine Electronic Panel
White Panel With Black Gauges
Fog resistant Marine Grade Gauges:
- 4000 RPM Programmable Tachometer with Digital Hour Meter
- Engine Coolant Water Temp Gauge 100-250°F/ 40-120°C
- Engine Oil Pressure Gauge 0-80 psi
- Fully Wired Instrument Panel with 3 Marine Grade Gauges
- Cole Hersee Sealed Ignition Key Switch
- Engineering thermoplastic construction
- Fully sealed contact area using O-rings and ultrasonic welding
- Integrated Sealed Deutsch Connector Interface
- Anti-restart and spring return options available
- Tested to SAE J259 for ignition switches
- Supplied with two matching keys, with or without boot
- Custom logo can be molded on the boot
- Multiple key codes or keyed alike available
- Key is removable only at the ‘Off’ position
An extensive series of ignition switches can also be used as rotary switches. Suitable for a broad range of voltages: 10A at 12V, 5A at 24V, 3A at 36V and 2A at 48V DC. Made of rugged engineering grade plastic, these switches stand up to mechanical shock and vibration, and will not corrode or rust. This switch has an integrated Deutsch-type socket to make electrical connection quick and easy and to exclude moisture and dust. UL-tested and recognized SAE J259 for ignition switches. Contacts are sealed front and back to IP67 (with connector installed). Many options available with regard to position, spring return, key boot style and marking, actuator interface and length, and anti-restart features.
Marine Grade Wire & Features:
- USCG / NMEA specification Copper tinned wire
- flexible cable water and oil resistant
- 10″ to 12″ Pigtail Harness connected to 12 position terminal strip
12 Circuit 30 Amp Terminal Strip Features
- Closed-back design completely insulates power from the mounting surface
- Each screw pair is one isolated circuit
- Jumpers allow the creation of common circuits
Additional Features:
- Engraved with Name
- Marine Grade Steel Stop & Glow Buttons
- LED Warning lights
#Note Always you can choose between
- Black and White Panel.
- Black And White Gauges.
- 24V System Available (optional )
- Also, you can Custom your panel size, gauges, design, and switches, just contact us (extra charge applicable )
All panels are made in the USA by AC DC Marine Inc. Torrance, California
