Custom Engine Marine Instrument Panel with VL VDO Gauges

Product Description

Panel Material: marine Acrylic, polycarbonate, marine Plexiglas

White Panel / ViewLine Gauges

Fog resistant  Marine Grade Gauges:

1. VDO ViewLine 4000 RPM Programmable Tachometer with Digital Multi-Function LCD Display
2. VDO ViewLine Engine Coolant Water Temp Gauge 105-250°F/ 40-120°C
3. VDO ViewLine Engine Oil Pressure Gauges  0-150 psi
4. VDO ViewLine 12 V Gauge

Kit Includes:

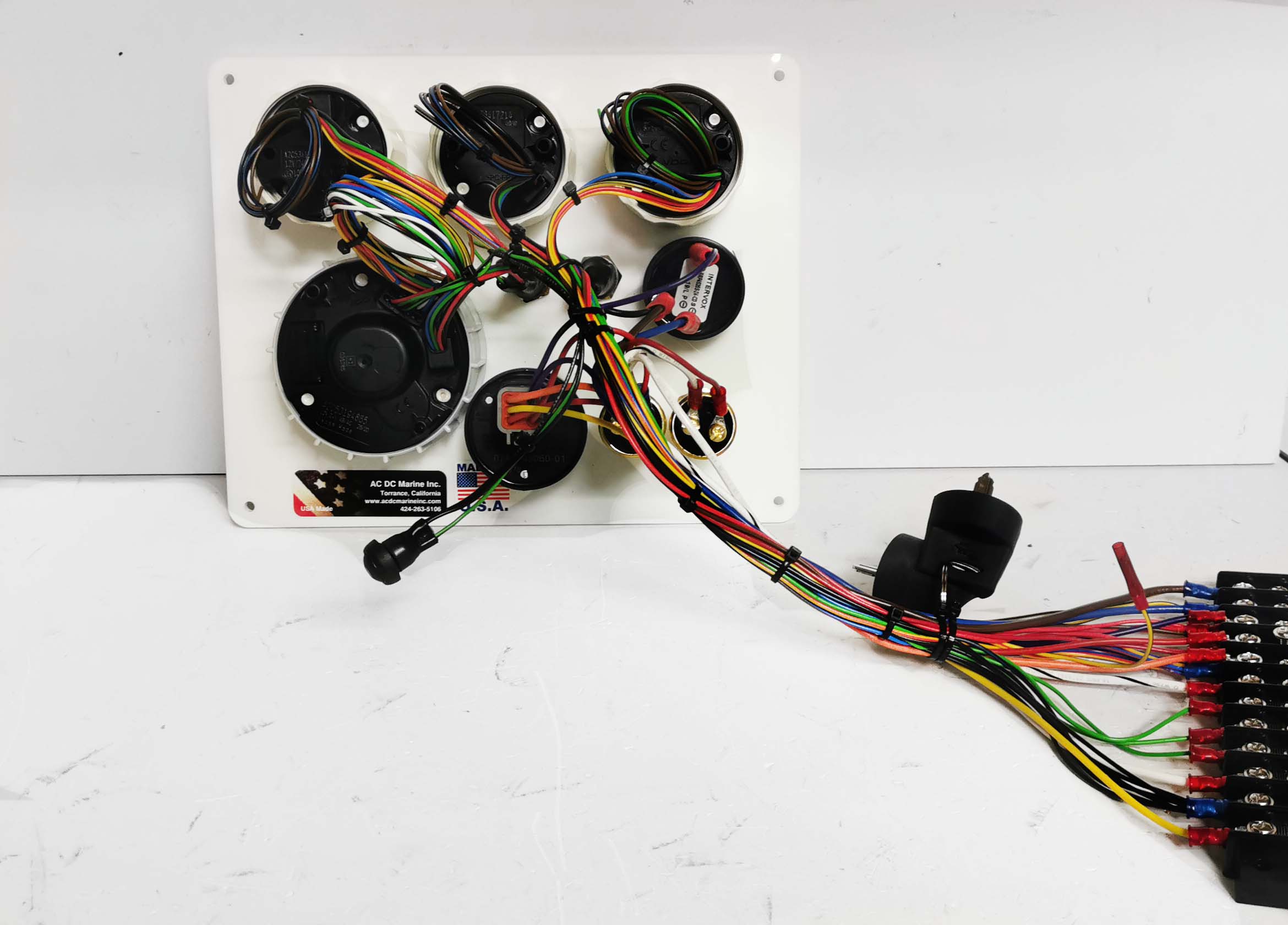

1. Fully Wired Instrument Panel with 4 Marine-Grade Gauges
2. Cole Hersee Sealed Ignition Key Switches
   Features and Benefits of Cole Hersee Sealed Ignition Key Switch:



   1. Engineering thermoplastic construction
   2. Fully sealed contact area using O-rings and ultrasonic welding
   3. Integrated Sealed Deutsch Connector Interface
   4. Anti-restart and spring return options available
   5. Tested to SAE J259 for ignition switches
   6. Supplied with two matching keys, with or without boot
   7. Custom logo can be molded on the boot
   8. Multiple key codes or keyed alike available
   9. Key is removable only at the ‘Off’ position

   An extensive series of ignition switches can also be used as rotary switches. Suitable for a broad range of voltages: 10A at 12V, 5A at 24V, 3A at 36V, and 2A at 48V DC. Made of rugged engineering grade plastic, these switches stand up to mechanical shock and vibration, and will not corrode or rust. This switch has an integrated Deutsch-type socket to make electrical connections quick and easy and to exclude moisture and dust. UL-tested and recognized to SAE J259 for ignition switches. Contacts are sealed front and back to IP67 (with connector installed). Many options available with regard to position, spring return, key boot style and marking, actuator interface and length, and anti-restart features.

   Marine Grade Wire & Features:

   • USCG / NMEA specification Copper tinned wire
   • flexible cable water and oil resistant
   • 10″ to 12″ Pigtail Harness connected to 12 position terminal strip

   12 Circuit 30 Amp Terminal Strip

   Features

   • Closed-back design completely insulates power from the mounting surface
   • Each screw pair is one isolated circuit
   • Jumpers allow the creation of common circuits

Additional Features:

• Marine-Grade Steel push button switch (Mode & Test)
• Marine-Grade Stop & Glow Button
• Dual Sound Alarm System
• Custom Name

#Note Always  you can choose between

1. Black and White Panel.
2. Black And White Gauges.
3. 24V  System Available (optional )
4. Also, you can Custom your panel size, gauges, design, and  switches, just contact us (extra charge applicable)

Please specify your requirement!

 If you have any technical questions please feel free to call or email us.

All panels are made in the USA by AC DC Marine Inc. Torrance, California
