Description

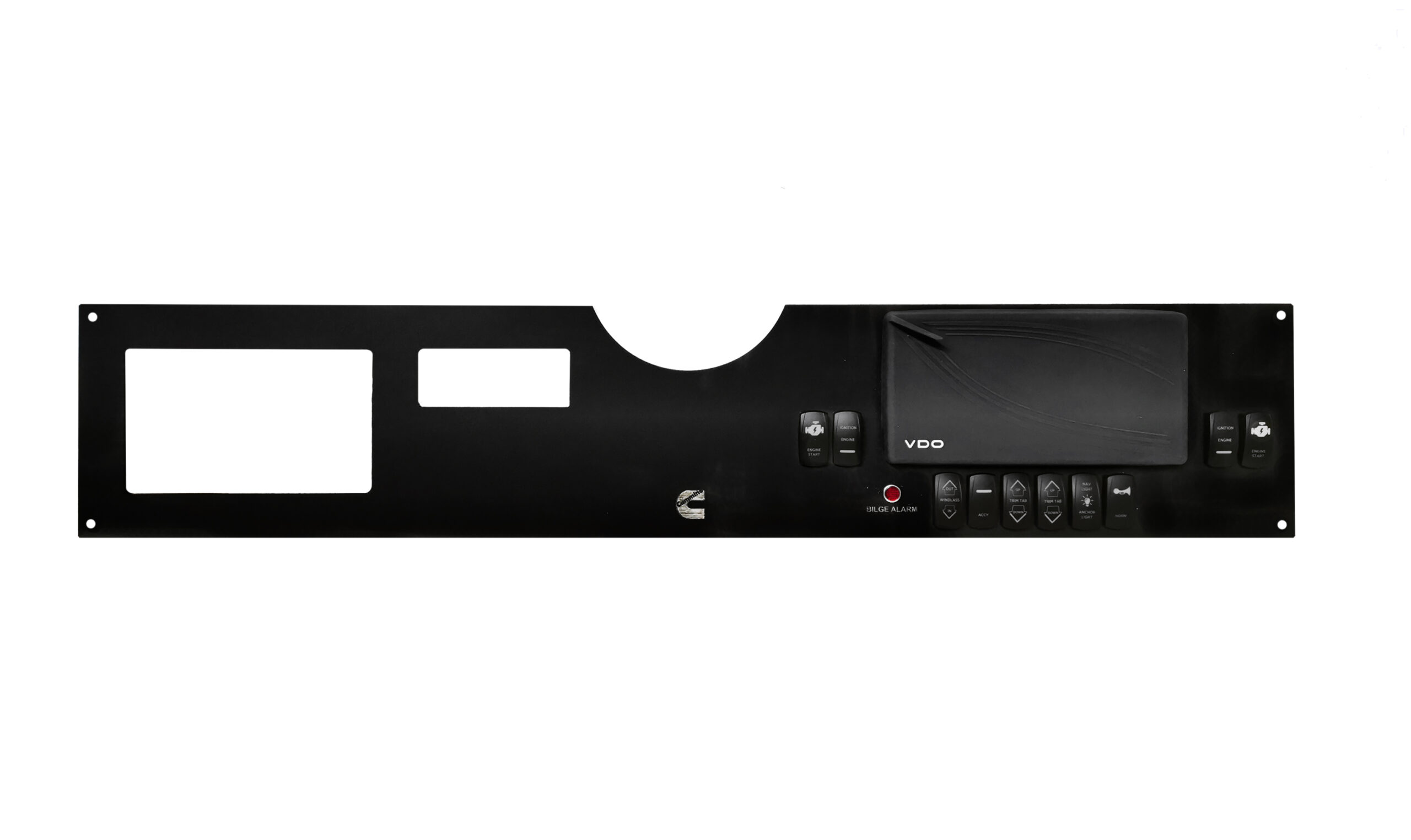

Engine Marine Instrument Panel with OCEANLINK 7″ TFT DISPLAY
Product Description
Panel Material: marine Acrylic, polycarbonate, marine Plexiglas
Black Panel With Black Gauges
Kit Includes:

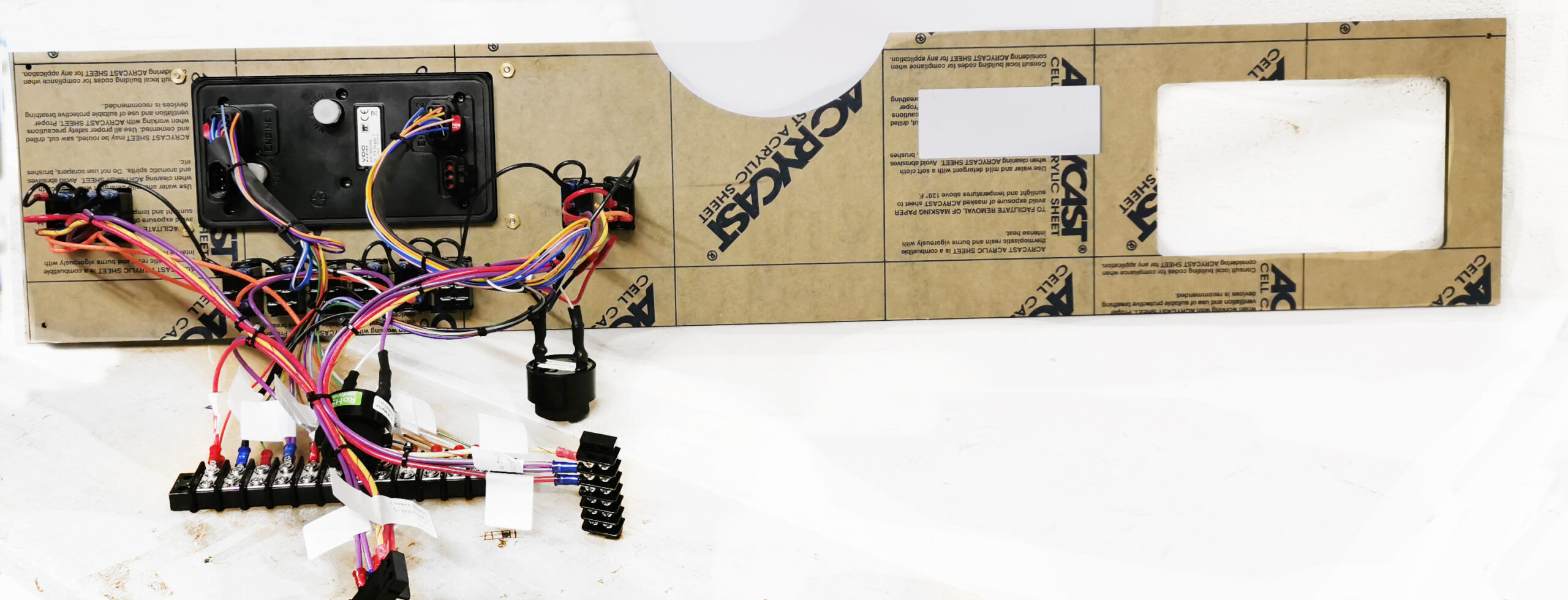

- Fully Wired Instrument Panel with OCEANLINK 7″ TFT DISPLAY
Ocean Link TFT Futures:
The new OceanLink® 7″ multifunction TFT Display features a full 24 bit/16 m colors optically bonded display with transmissive layer technology for perfect readability even in direct sunlight. The TFT Display shows and distributes a wide array of data received from NMEA 2000® and J1939 CAN Bus systems and analog sensors directly connected to the display. Users can customize up to 40 different data pages with single, double, treble or quad grid layouts.
TFT Displays can be daisy-chained with other OceanLink® gauges, displays or NavControls using the unique VDO Marine Bus or directly connected to the NMEA 2000® backbone (optional adapter cable required) for simple installation on any yacht.
- High resolution optical bonded mineral glass lens
- Front & rear side protection-rating IPX7 (Water resistant)
- NMEA 2000® connector
- 2x J1939 CAN Bus input
- 6x Analog input/ 3 per engine
- 2x Frequency input (RPM)
- 2x 4–20 mA (Thermo coupling)
- 3x Digital input or 0–5 V (Sensors for water level, fuel level, etc)
- 2x Alarm output (Camera)
- 2x Video input
- 2x EasyLink data output for extra 2nd analaog panel
- 2x Programmable alarm output 500 mA
- Operating temperature range -20°C/+70°C
#Note Always you can choose between
- Black and White Panel.
- Black And White Gauges.
- 24V System Available (optional )
- Also, you can Custom your panel size, gauges, design, and switches, just contact us (extra charge applicable)
Please specify your requirement!
If you have any technical questions please feel free to call or email us.
All panels are made in the USA by AC DC Marine Inc. Torrance, California
