Description
Detroit Diesel Custom Dual Engine Panel 9 Premier Gauges + Rockers (Made in USA)
Panel Material: Marine Acrylic, Polycarbonate, Marine Plexiglass
Custom Sized White Panel / Premier Gauges

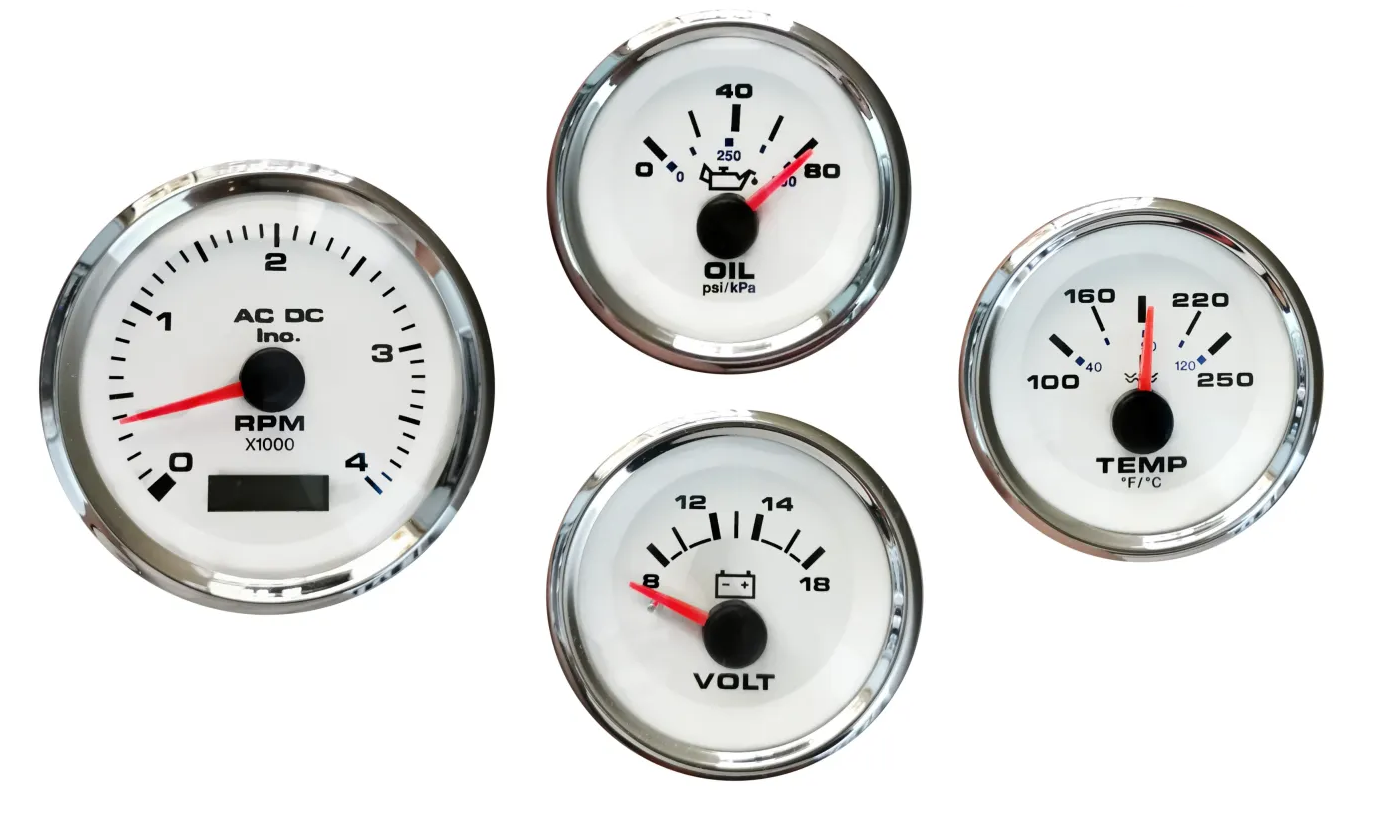

Fog-Resistant Marine Grade Gauges:
- Premier 4000 RPM Programmable Tachometer with Digital Hour Meter 7 Character LCD Display
- Premier Engine Coolant Water Temp Gauge 100-250°F/40-120°C
- Premier Engine Oil Pressure Gauges 0-80 PSI/0-5 Bar
- Premier Fuel Gauge
- Premier 12v or 24v Voltmeter
• Tan Dials and Retainers, Black or White Graduations and Numerals, Fire-Orange or White Pointers for Better Visibility
• Scratch-Resistant Curved Glass Lenses
• White Perimeters & Red Thru-Dials for Enhanced Night Visibility
• Iridescent Bulbs with Red Backlighting
Kit Includes:
- Fully Wired Instrument Panel with 9 Marine-Grade Gauges
- Alarm Warning LEDs
- 19x Rocker Switches (Fully Customizable — Number of Switches and/or Cover Types)
- Temperature Sending Unit
- Oil Pressure Sending Unit
*Sending Units May Vary Depending on Engine(s)*
*Engine Wiring Harness (Optional Add-On): Lengths of 30ft and 50ft.
*If You Need Any Other Length, No Problem — Just Give Us a Call!*
- This Product Offers a Unique Flame Retardant Polyvinyl Chloride Compound (VW-1) and is Moisture Abrasion, Acid, Diesel Fuel, and Oil-Resistant. It is Extremely Flexible & Easy to Work With.
- Single Cable with 12 Marine Grade Wires – 14/16 AWG
- Temperature: 105°C Dry, 75°C Wet
- Voltage: 600 Volts
- Stranding: Class K 30 Gauge Tinned Copper
- Standard: UL 1426 & UL Listed BC-5W2
- Connected to the Panel via Terminal Strip
*If Engine Octopus is Purchased Along with the Wiring Harness, The Opposing End Will Have a 12-Pin Deutsch Connector*
Marine-Grade Wire & Features:
- USCG / NMEA Specification Copper-Tinned Wire
- Flexible Cable – Water and Oil-Resistant
- 10″ to 12″ Pigtail Harness Connected to 12-Position Terminal Strip
12 Circuit 30 Amp Terminal Strip Features:
- Closed-Back Design Completely Insulates Power From the Mounting Surface
- Each Screw Pair is One Isolated Circuit
- Jumpers Allow the Creation of Common Circuits
Additional Options Available:
- Black or White Panel
- Engraved with Engine Name (Optional – Your Boat Name)
- Customize Panel Size, Gauges, Design, and Switches — Just Contact Us (Extra Charges May Apply)
Please Specify Your Requirements
If You Have any Technical Questions, Please Feel Free to Call or Email Us
All Panels are Made in the USA by AC DC Marine Inc. Torrance, California
