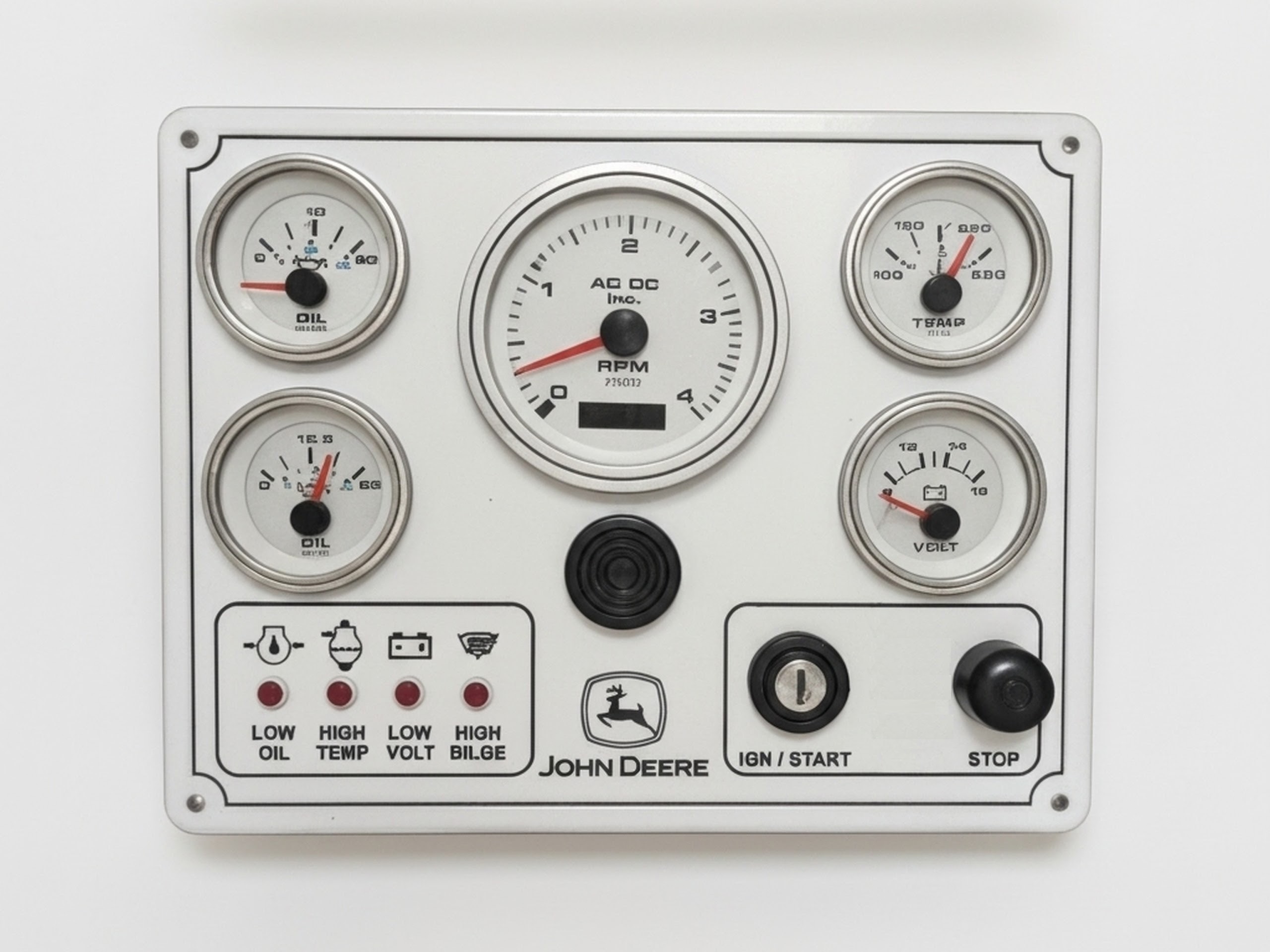

John Deere Diesel Marine Instrument Panel 5 Premier Gauges w/Fuel (Made in USA)
Fully-Wired / Ready to Install
Dimensions: 11″ x 8 1/2″
Panel Material: Marine Acrylic, Polycarbonate, Marine Plexiglass
White Panel / Premier Gauges
Fog-Resistant Marine Grade Gauges:
- Premier 4000 RPM Programmable Tachometer with Digital Hour Meter 7 Character LCD Display
- Premier Engine Coolant Water Temp Gauge 100-250°F/40-120°C
- Premier Engine Oil Pressure Gauges 0-80 PSI/0-5 Bar
- Premier Transmission Oil Pressure Gauge
- Premier 12v or 24v Voltmeter
• Tan Dials and Retainers, Black or White Graduations and Numerals, Fire-Orange or White Pointers for Better Visibility
• Scratch-Resistant Curved Glass Lenses
• Stainless Steel Bezels w/ Red Thru-Dials for Enhanced Night Visibility
• Iridescent Bulbs with Red Backlighting
Kit Includes:
- Fully Wired Instrument Panel with 5 Marine-Grade Gauges
- Push Button Switch for Engine Stop, Preheat, Test, Mode, Prog, etc.
- 4 Alarm Warning LEDs (Low Oil Pressure, High Temp, Low Volt, High Bilge)
- Cole Hersee Sealed Ignition Key Switch
- Two-Tone Piezo Siren Alarm for High Temp and Low Oil
Features and Benefits of Cole Hersee Sealed Ignition Key Switch:
- Engineering Thermoplastic Construction
- Fully Sealed Contact Area Using O-Rings and Ultrasonic Welding
- Integrated Sealed Deutsch Connector Interface
- Anti-Restart and Spring-Return Options Available
- Tested to SAE J259 for Ignition Switches
- Supplied with Two Matching Keys, with or without Boot
- Custom Logo can be Molded on the Boot
- Multiple Key Codes or Keyed Alike Available
- Key is Removable only at the ‘Off’ Position
An Extensive Series of Ignition Switches can also be Used as Rotary Switches. Suitable for a Broad Range of Voltages: 10A at 12V, 5A at 24V, 3A at 36V and 2A at 48V DC. Made of Rugged Engineering-Grade Plastic, these Switches Stand up to Mechanical Shock & Vibration, and Will not Corrode or Rust. This Switch has an Integrated Deutsch-Type Socket to Make Electrical Connection Quick and Easy & to Exclude Moisture and Dust. UL-Tested & Recognized to SAE J259 for Ignition Switches. Contacts are sealed front and back to IP67 (with connector installed). Many Options Available with Regard to Position, Spring-Return, Key Boot Style and Marking, Actuator Interface and Length, & Anti-Restart Features.
- Temperature Sending Unit
- Oil Pressure Sending Unit
*Sending Units May Vary Depending on Engine(s)*
*Engine Wiring Harness (Optional Add-On): Lengths of 10ft to 60ft.
*If You Need Any Other Length, No Problem — Just Give Us a Call!*
- This Product Offers a Unique Flame Retardant Polyvinyl Chloride Compound (VW-1) and is Moisture Abrasion, Acid, Diesel Fuel, and Oil-Resistant. It is Extremely Flexible & Easy to Work With.
- Single Cable with 12 Marine Grade Wires – 14/16 AWG
- Temperature: 105°C Dry, 75°C Wet
- Voltage: 600 Volts
- Stranding: Class K 30 Gauge Tinned Copper
- Standard: UL 1426 & UL Listed BC-5W2
- Connected to the Panel via Terminal Strip
*If Engine Octopus is Purchased Along with the Wiring Harness, The Opposing End Will Have a 12-Pin Deutsch Connector*
Marine Grade Wire & Features:
- USCG / NMEA Specification Copper-Tinned Wire
- Flexible Cable – Water and Oil-Resistant
- 10″ to 12″ Pigtail Harness Connected to 12-Position Terminal Strip
12 Circuit 30 Amp Terminal Strip Features:
- Closed-Back Design Completely Insulates Power From the Mounting Surface
- Each Screw Pair is One Isolated Circuit
- Jumpers Allow the Creation of Common Circuits
Additional Options Available:
- Black or White Panel
- Engraved with Engine Name (Optional – Your Boat Name)
- Customize Panel Size, Gauges, Design, and Switches — Just Contact Us (Extra Charges May Apply)
Please Specify Your Requirements
If You Have any Technical Questions, Please Feel Free to Call or Email Us
All Panels are Made in the USA by AC DC Marine Inc. Torrance, California
