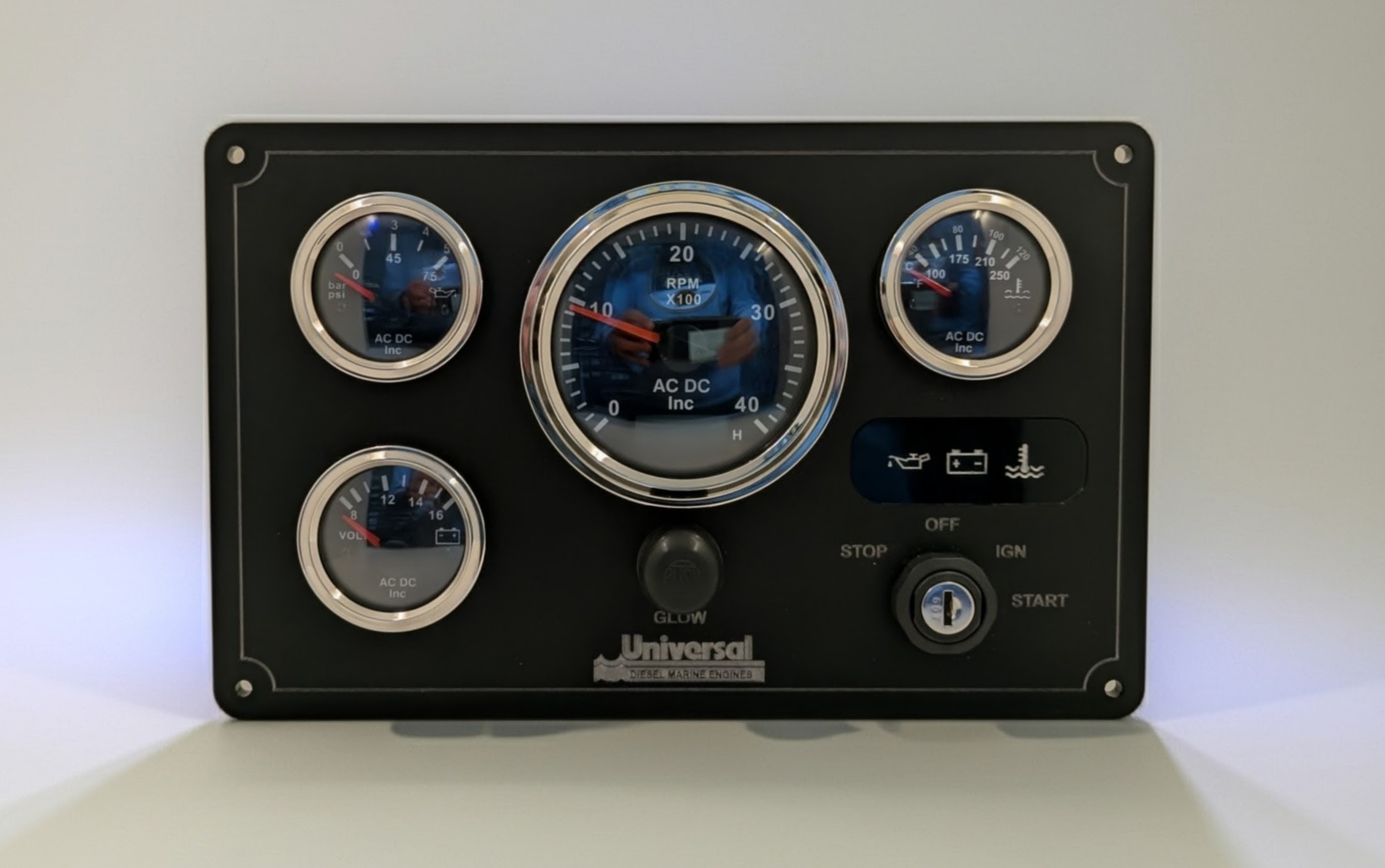

Universal Marine Black Instrument Panel 4 Offshore Gauges (Made in USA)

$700.00

5 in stock

SKU: UNI-Offshore-4G-BB-11×7 Category: Brand:

Description

Universal Marine Diesel Instrument Panel – 4 Marine Gauges (Made in USA)

Fully -Wired / Ready to Install

Dimensions:  11×7

Panel Material: Marine Acrylic, Polycarbonate, Marine Plexiglass

Black Panel / Black Offshore Gauges

Fog-Resistant Marine Grade Gauges:

  •  4000 RPM Programmable Tachometer with Digital Hour Meter 7 Character LCD Display
  •  Engine Coolant Water Temp Gauge 40-120°C/100-250°F
  •  Engine Oil Pressure Gauge 0-80 PSI/0-5 Bar
  • 12v or 24v Voltmeter

• Black Dials and Retainers, Black or White Graduations and Numerals, Fire-Orange or White Pointers for Better Visibility
• Scratch-Resistant Curved Glass Lenses
• Iridescent Bulbs with Backlighting for Enhanced Night Visibility

Kit Includes:

  1. Fully Wired Instrument Panel with 4 Marine-Grade Gauges
  2. Cole Hersee Sealed Ignition Key Switch
  3. Push Button Switch
  4. Alarm Warning LEDs
  5. Piezo Siren Alarm
Features and Benefits of Cole Hersee Sealed Ignition Key Switch:
  1. Engineering Thermoplastic Construction
  2. Fully Sealed Contact Area Using O-Rings and Ultrasonic Welding
  3. Integrated Sealed Deutsch Connector Interface
  4. Anti-Restart and Spring-Return Options Available
  5. Tested to SAE J259 for Ignition Switches
  6. Supplied with Two Matching Keys, with or without Boot
  7. Custom Logo can be Molded on the Boot
  8. Multiple Key Codes or Keyed Alike Available
  9. Key is Removable only at the ‘Off’ Position

An Extensive Series of Ignition Switches can also be Used as Rotary Switches. Suitable for a Broad Range of Voltages: 10A at 12V, 5A at 24V, 3A at 36V and 2A at 48V DC. Made of Rugged Engineering-Grade Plastic, these Switches Stand up to Mechanical Shock & Vibration, and Will not Corrode or Rust. This Switch has an Integrated Deutsch-Type Socket to Make Electrical Connection Quick and Easy & to Exclude Moisture and Dust. UL-Tested & Recognized to SAE J259 for Ignition Switches. Contacts are sealed front and back to IP67 (with connector installed). Many Options Available with Regard to Position, Spring-Return, Key Boot Style and Marking, Actuator Interface and Length, & Anti-Restart Features.

*Sending Units (Optional Add-On): Dual Purpose – Signal and Alarm
  • Temperature Sending Unit
  • Oil Pressure Sending Unit

*Sending Units May Vary Depending on Engine(s)*

*Engine Wiring Harness (Optional Add-On): Lengths of 15ft and 25ft.

*If You Need any Other Length, No Problem — Just Give us a Call!*

    • Single Cable with 12 Marine-Grade Wires
      • 14 Gauge: Black
      • 14 Gauge: Red
      • 16 Gauge: Dark Blue
      • 16 Gauge: Light Blue
      • 16 Gauge: Dark Brown
      • 16 Gauge: Light Brown
      • 16 Gauge: Gray
      • 16 Gauge: Yellow
      • 16 Gauge: White
      • 16 Gauge: Purple
      • 16 Gauge: Light Blue/White Stipe
      • 16 Gauge: Dark Blue/White Stripe
  • This Product Offers a Unique Flame-Retardant Polyvinyl Chloride Compound (VW-1) and is Moisture, Abrasion, Acid, Diesel Fuel, and Oil Resistant. It is Extremely Flexible & Easy to Work With.
  • Single Cable with 12 Marine-Grade Wires – 14/16 AWG
  • Temperature: 105°C dry, 75°C wet
  • Voltage: 600 Volts
  • Stranding: Class K 30 Gauge Tinned Copper
  • Standard: UL 1426 & UL Listed BC-5W2
  • Connected to the Panel via Terminal Strip

*If Engine Octopus is Purchased Along with the Wiring Harness, The Opposing End Will Have a 12-Pin Deutsch Connector*

*DOES NOT COME WIRED TO TERMINAL STRIP*

Marine-Grade Wire & Features:

  • USCG / NMEA Specification Copper-Tinned Wire
  • Flexible Cable – Water and Oil-Resistant
  • 10″ to 12″ Pigtail Harness Connected to 12-Position Terminal Strip



12 Circuit 30 Amp Terminal Strip Features:

  • Closed Back Design Completely Insulates Power from the Mounting Surface
  • Each Screw Pair is one Isolated Circuit
  • Jumpers Allow Creation of Common Circuits

Additional Options Available:

  1. Black or White Panel
  2. Black, White and Chrome Bezels Available & Sold Separately
  3. Engraved with Engine Name (Optional – Your Boat Name)
  4. Customize Panel Size, Gauges, Design, and Switches — Just Contact Us (Extra Charges May Apply)

Please Specify Your Requirements

If You Have any Technical Questions, Please Feel Free to Call or Email Us

All Panels are Made in the USA by AC DC Marine Inc. Torrance, California

Return Policy: All Order Returns are Subject to a 25% Re-Stock Fee



Additional information

Weight 4 lbs
Dimensions 14 × 9 × 6 in
