Universal Marine Engine Panel – 3 VDO Gauges (Made in Switzerland)

$700.00

5 in stock

Category: Brand:

Description

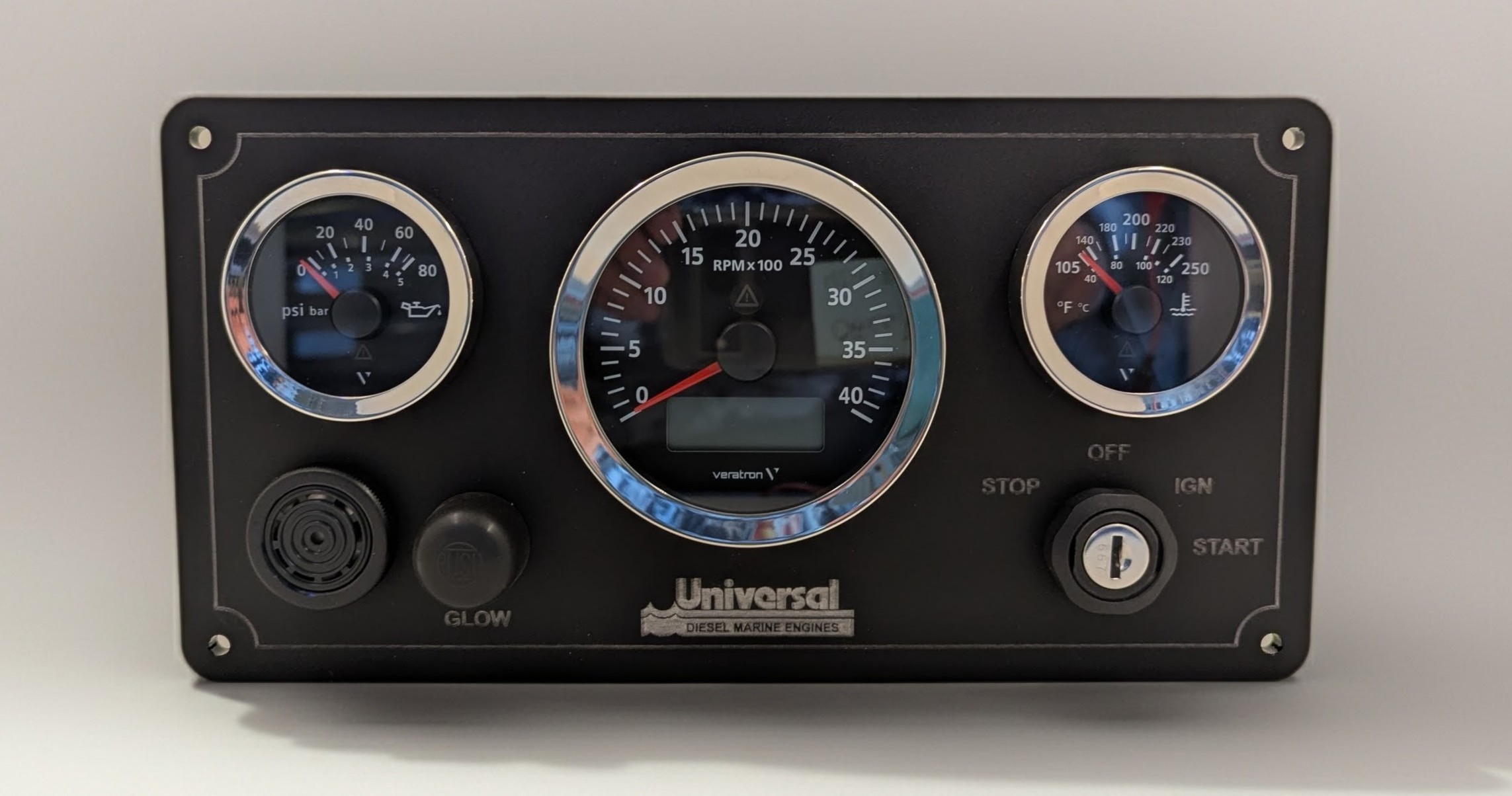

Universal Engine Instrument Panel – 3 VDO Gauges

Fully-Wired / Ready to Install



Dimensions: 10.75″ x 5.5 ″

Panel Material: Marine Acrylic, Polycarbonate, Marine Plexiglass

Black Panel / Cockpit Gauges

Fog-Resistant Marine Grade Gauges:

  1. Cockpit 4000 RPM Programmable Tachometer with Digital Hour Meter 7 Character LCD Display (All Pick-Ups Compatible)
  2. Cockpit Engine Coolant Temp Gauge 100-250°F/40-120°C
  3. Cockpit Engine Oil Pressure Gauge 0-80 PSI/0-5 Bar

• Red Dials with Stainless Steel Bezels and Glass Lenses
• LED Illumination with Backlit Technology
• Integrated Warning LEDs
• Panel and Flush Mount Possibility

*Produced Exclusively for ACDC Marine, Inc.

Kit Includes:

  1. Fully Wired Instrument Panel with 3 Marine-Grade Gauges
  2. Cole Hersee Sealed Ignition Key Switch
  3. Push Button Switches for Engine Stop, Preheat, Test, Mode, Prog, etc.
Features and Benefits of Cole Hersee Sealed Ignition Key Switch:
  1. Engineering Thermoplastic Construction
  2. Fully Sealed Contact Area
  3. Integrated Sealed Deutsch Connector Interface
  4. Anti-Restart and Spring-Return Options Available
  5. Tested to SAE J259 for Ignition Switches
  6. Supplied with Two Matching Keys, with or without Boot
  7. Multiple Key Codes or Keyed Alike Available
  8. Key is Removable only at the ‘Off’ Position

Contacts are sealed front and back to IP67 (with connector installed)

*Sending Units (Optional Add-On): Dual Purpose – Signal and Alarm
  • Temperature Sending Unit
  • Oil Pressure Sending Unit

*Sending Units thread sizes May Vary Depending on Engine(s)*

*Engine Wiring Harness (Optional Add-On): Lengths of 15ft to 60ft.

*If You Need any Other Length, No Problem — Just Give us a Call!*

    • Single Cable with 12 Marine-Grade Wires
      • 14 Gauge: Black
      • 14 Gauge: Red
      • 16 Gauge: Dark Blue
      • 16 Gauge: Light Blue
      • 16 Gauge: Dark Brown
      • 16 Gauge: Light Brown
      • 16 Gauge: Gray
      • 16 Gauge: Yellow
      • 16 Gauge: White
      • 16 Gauge: Purple
      • 16 Gauge: Light Blue/White Stipe
      • 16 Gauge: Dark Blue/White Stripe
  • This Product Offers a Unique Flame-Retardant Polyvinyl Chloride Compound (VW-1) and is Moisture, Abrasion, Acid, Diesel Fuel, and Oil Resistant. It is Extremely Flexible & Easy to Work With.
  • Single Cable with 12 Marine-Grade Wires – 14/16 AWG
  • Temperature: 105°C Dry, 75°C Wet
  • Voltage: 600 Volts
  • Stranding: Class K 30 Gauge Tinned Copper
  • Standard: UL 1426 & UL Listed BC-5W2
  • Connects to the Panel via Terminal Strip

*If Engine Octopus is Purchased Along with the Wiring Harness, The Opposing End Will Have a 12-Pin Deutsch Connector*

*DOES NOT COME WIRED TO TERMINAL STRIP*

Marine-Grade Wire & Features:

  • USCG / NMEA Specification Copper-Tinned Wire
  • Flexible Cable – Water and Oil-Resistant
  • 10″ to 12″ Pigtail Harness Connected to 12-Position Terminal Strip



12 Circuit 30 Amp Terminal Strip Features:

  • Closed Back Design Completely Insulates Power from the Mounting Surface
  • Each Screw Pair is one Isolated Circuit
  • Jumpers Allow Creation of Common Circuits

Additional Options Available:

  1. Black or White Panel
  2. Engraved with Engine Name (Optional – Your Boat Name)
  3. Customize Panel Size, Gauges, Design, and Switches — Just Contact Us (Extra Charges May Apply)

Please Specify Your Requirements

If You Have any Technical Questions, Please Feel Free to Call or Email Us

All Panels are Made in the USA by AC DC Marine Inc. Torrance, California

Return Policy: All Order Returns are Subject to a 25% Re-Stock Fee

Additional information

Weight 4 lbs
Dimensions 14 × 9 × 6 in
