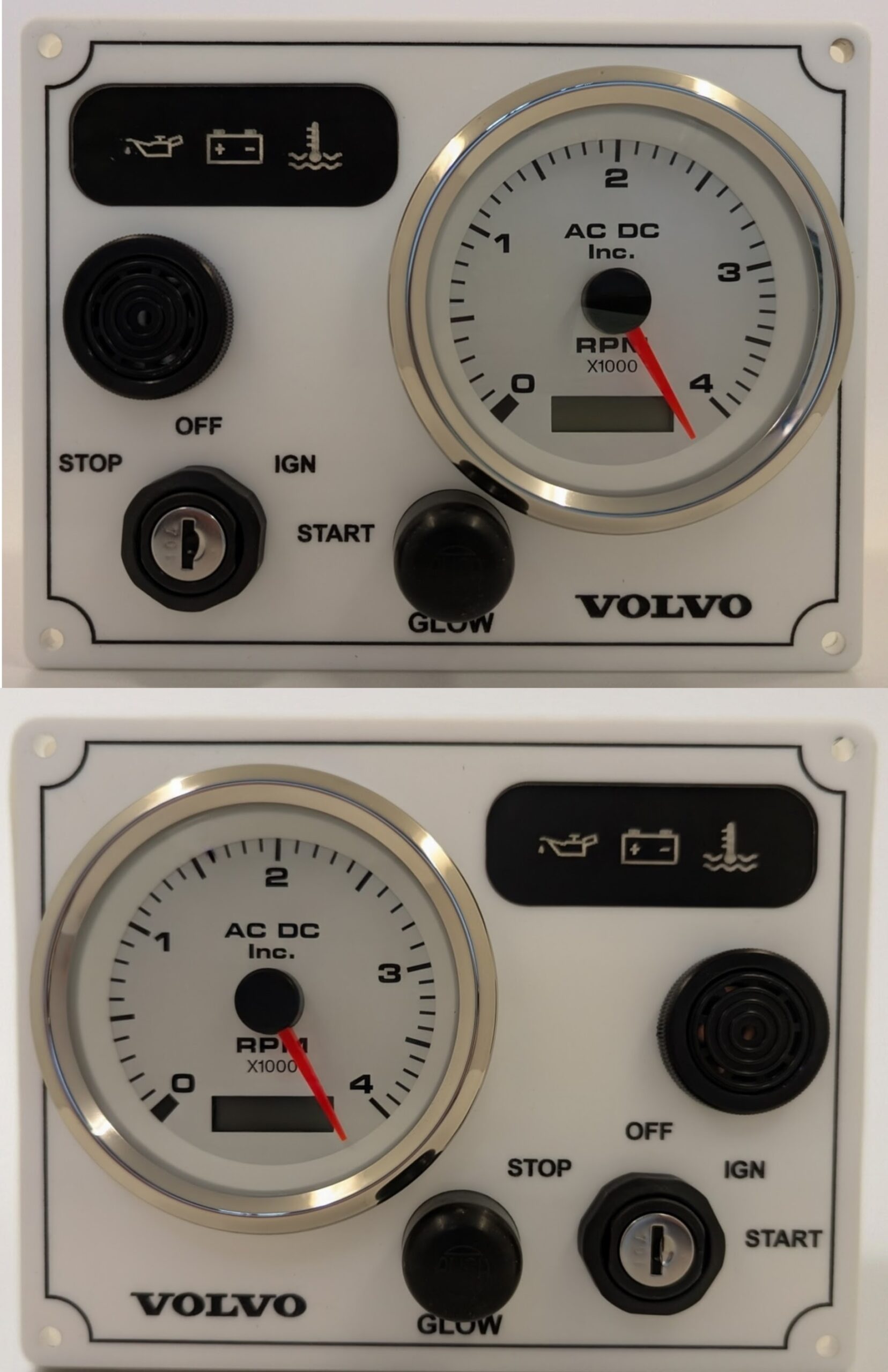

[Dual Engine] Volvo Penta Marine Diesel B-Type Panel 1 Premier Tachometer (Made in USA)

$1,099.99

6 in stock

Categories: , Brand:

Description

[Dual Engine] Volvo Penta Diesel Marine B-Type Panel – 1 Premier Gauge (Made in USA)

Fully-Wired / Ready to Install

Panel Material: Marine Acrylic, Polycarbonate, Marine Plexiglass

Dimensions: 7 1/8” x 5 1/2”

White Panel / White Premier Tachometer

Fog-Resistant Marine Grade Tachometer:

  1. Premier 4000 RPM Programmable Tachometer with Digital Hour Meter 7 Character LCD Display

• White Dial, Black Graduations and Numerals, Red Pointer for Better Visibility
• Scratch-Resistant Curved Glass Lens
• Iridescent Bulb with Red Backlighting for Enhanced Night Visibility

Kit Includes:

  1. Fully Wired Marine Instrument Panel with 1 Marine-Grade Tachometer
  2. Alarm Warning LEDs
  3. Push Button Switches for Engine Glow Plug
  4. Cole Hersee Sealed Ignition Key Switch with Engine Stop Position
  5. Loud, Two-Tone, Piezo Siren

Features and Benefits of Cole Hersee Sealed Ignition Key Switch:

  1. Engineering Thermoplastic Construction
  2. Fully Sealed Contact Area Using O-Rings and Ultrasonic Welding
  3. Integrated Sealed Deutsch Connector Interface
  4. Anti-Restart and Spring Return Options Available
  5. Tested to SAE J259 for Ignition Switches
  6. Supplied with Two Matching Keys, with or without Boot
  7. Custom Logo can be Molded on the Boot
  8. Multiple Key Codes or Keyed Alike Available
  9. Key is Removable Only at the ‘Off’ Position

An Extensive Series of Ignition Switches Can Also be Used as Rotary Switches. Suitable for a Broad Range of Voltages: 10A at 12V, 5A at 24V, 3A at 36V, and 2A at 48V DC. Made of Rugged Engineering-Grade Plastic, These Switches Stand up to Mechanical Shock & Vibration, & Will Not Corrode or Rust. This Switch has an Integrated Deutsch-Type Socket to Make Electrical Connections Quick and Easy, & to Exclude Moisture and Dust. UL-Tested & Recognized to SAE J259 for Ignition Switches. Contacts are Sealed Front & Back to IP67 (with Connector Installed). Many Options Available with Regard to Position, Spring Return, Key Boot Style and Marking, Actuator Interface and Length, & Anti-Restart Features.

*Engine Wiring Harness (Optional Add-On): Lengths of 15ft and 25ft.

*If You Need any Other Length, No Problem — Just Give us a Call!*

    • Single Cable with 12 Marine-Grade Wires
      • 14 Gauge: Black
      • 14 Gauge: Red
      • 16 Gauge: Dark Blue
      • 16 Gauge: Light Blue
      • 16 Gauge: Dark Brown
      • 16 Gauge: Light Brown
      • 16 Gauge: Gray
      • 16 Gauge: Yellow
      • 16 Gauge: White
      • 16 Gauge: Purple
      • 16 Gauge: Light Blue/White Stipe
      • 16 Gauge: Dark Blue/White Stripe
  • This Product Offers a Unique Flame-Retardant Polyvinyl Chloride Compound (VW-1) and is Moisture, Abrasion, Acid, Diesel Fuel, and Oil Resistant. It is Extremely Flexible & Easy to Work With.
  • Single Cable with 12 Marine-Grade Wires – 14/16 AWG
  • Temperature: 105°C Dry, 75°C Wet
  • Voltage: 600 Volts
  • Stranding: Class K 30 Gauge Tinned Copper
  • Standard: UL 1426 & UL Listed BC-5W2
  • Connects to the Panel via Terminal Strip

*If Engine Octopus is Purchased Along with the Wiring Harness, The Opposing End Will Have a 12-Pin Deutsch Connector*

Marine-Grade Wire & Features:

  • USCG / NMEA Specification Copper-Tinned Wire
  • Flexible Cable – Water and Oil-Resistant
  • 10″ to 12″ Pigtail Harness Connects to 12-Position Terminal Strip

Additional information

Weight 5 lbs
Dimensions 12 × 9 × 6 in
