Description

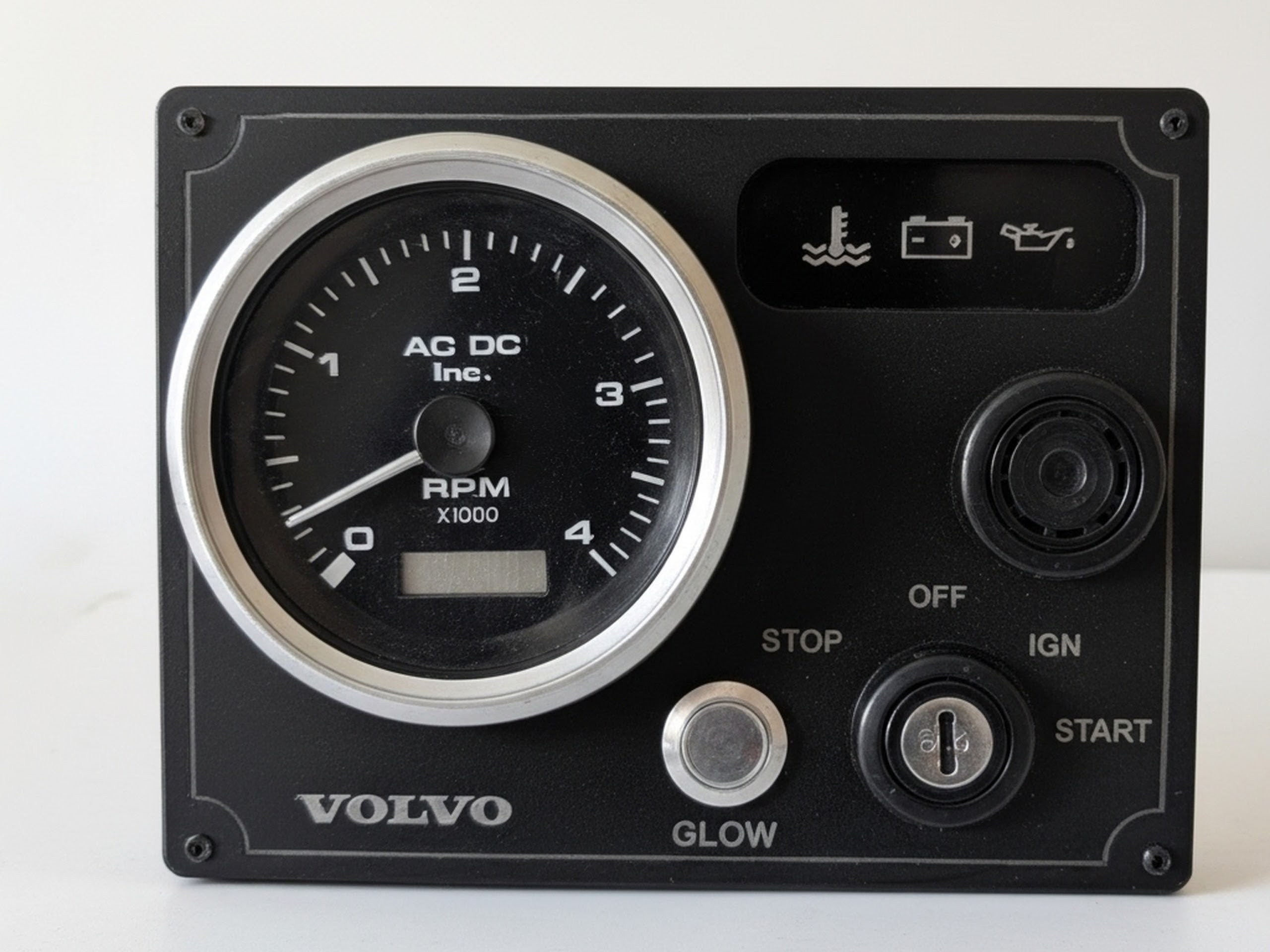

Volvo Penta Diesel Marine B-Type Panel – 1 Premier Tachometer (Made in USA)
Fully-Wired / Ready to Install
Dimensions: 7 1/8” x 5 1/2”
Panel Material: Marine Acrylic, Polycarbonate, Marine Plexiglass
Black Panel / Premier Tachometer
Fog-Resistant Marine Grade Tachometer:
- Premier 4000 RPM Programmable Tachometer with Digital Hour Meter 7 Character LCD Display
• Tan Dial and Retainer, Black or White Graduations and Numerals, Fire-Orange or White Pointer for Better Visibility
• Scratch-Resistant Curved Glass Lens
• White Perimeters & Red Thru-Dial for Enhanced Night Visibility
• Iridescent Bulb with Red Backlighting
Kit Includes:
- Fully Wired Marine Instrument Panel with 1 Marine-Grade Tachometer
- Alarm Warning LEDs
- Push Button Switches for Engine Stop & Glow
- Cole Hersee Sealed Ignition Key Switch
Features and Benefits of Cole Hersee Sealed Ignition Key Switch:
- Engineering Thermoplastic Construction
- Fully Sealed Contact Area Using O-Rings and Ultrasonic Welding
- Integrated Sealed Deutsch Connector Interface
- Anti-Restart and Spring Return Options Available
- Tested to SAE J259 for Ignition Switches
- Supplied with Two Matching Keys, with or without Boot
- Custom Logo can be Molded on the Boot
- Multiple Key Codes or Keyed Alike Available
- Key is Removable Only at the ‘Off’ Position
An Extensive Series of Ignition Switches Can Also be Used as Rotary Switches. Suitable for a Broad Range of Voltages: 10A at 12V, 5A at 24V, 3A at 36V, and 2A at 48V DC. Made of Rugged Engineering-Grade Plastic, These Switches Stand up to Mechanical Shock & Vibration, & Will Not Corrode or Rust. This Switch has an Integrated Deutsch-Type Socket to Make Electrical Connections Quick and Easy, & to Exclude Moisture and Dust. UL-Tested & Recognized to SAE J259 for Ignition Switches. Contacts are Sealed Front & Back to IP67 (with Connector Installed). Many Options Available with Regard to Position, Spring Return, Key Boot Style and Marking, Actuator Interface and Length, & Anti-Restart Features.
*Engine Wiring Harness (Optional Add-On): Lengths of 15ft and 25ft.
*If You Need any Other Length, No Problem — Just Give us a Call!*
-
- Single Cable with 12 Marine-Grade Wires
- 14 Gauge: Black
- 14 Gauge: Red
- 16 Gauge: Dark Blue
- 16 Gauge: Light Blue
- 16 Gauge: Dark Brown
- 16 Gauge: Light Brown
- 16 Gauge: Gray
- 16 Gauge: Yellow
- 16 Gauge: White
- 16 Gauge: Purple
- 16 Gauge: Light Blue/White Stipe
- 16 Gauge: Dark Blue/White Stripe
- Single Cable with 12 Marine-Grade Wires
- This Product Offers a Unique Flame-Retardant Polyvinyl Chloride Compound (VW-1) and is Moisture, Abrasion, Acid, Diesel Fuel, and Oil Resistant. It is Extremely Flexible & Easy to Work With.
- Single Cable with 12 Marine-Grade Wires – 14/16 AWG
- Temperature: 105°C Dry, 75°C Wet
- Voltage: 600 Volts
- Stranding: Class K 30 Gauge Tinned Copper
- Standard: UL 1426 & UL Listed BC-5W2
- Connects to the Panel via Terminal Strip
*If Engine Octopus is Purchased Along with the Wiring Harness, The Opposing End Will Have a 12-Pin Deutsch Connector*
Marine-Grade Wire & Features:
- USCG / NMEA Specification Copper-Tinned Wire
- Flexible Cable – Water and Oil-Resistant
- 10″ to 12″ Pigtail Harness Connects to 12-Position Terminal Strip
*DOES NOT COME WIRED TO TERMINAL STRIP*
Additional Options Available:
- Black or White Panel
- Engraved with Engine Name (Optional – Your Boat Name)
- Customize Panel Size, Gauges, Design, and Switches — Just Contact Us (Extra Charges May Apply)
Please Specify Your Requirements
If You Have any Technical Questions, Please Feel Free to Call or Email Us
All Panels are Made in the USA by AC DC Marine Inc. Torrance, California
