Yanmar Advanced Panel w/ 3 Premier Gauges (MADE IN USA)

$699.99

5 in stock

SKU: YAN3GBWPREM11X5.5 Category: Brand:

Description

Description

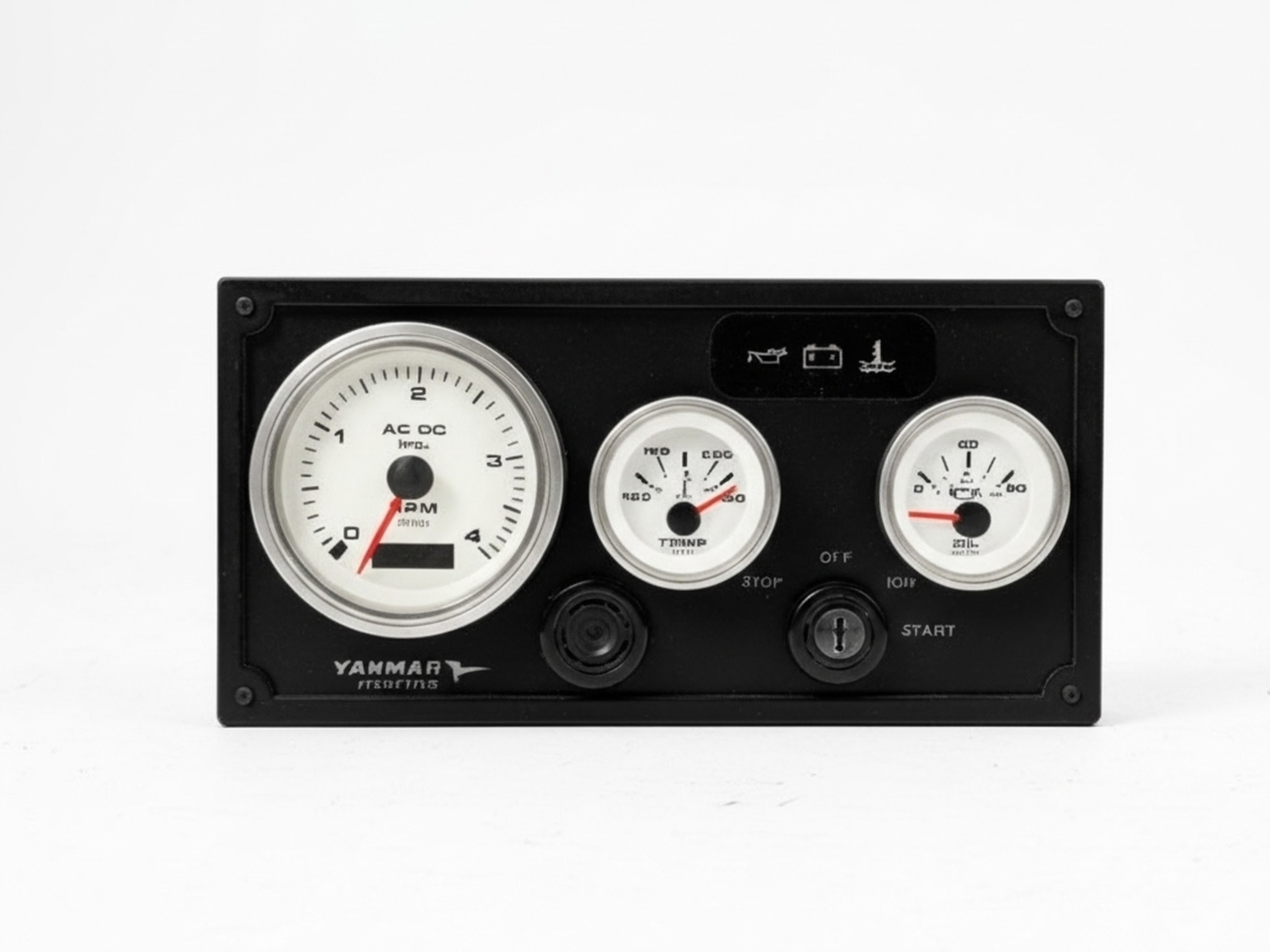

Yanmar Advanced Panel 3 Premier Gauges

Fully-Wired / Ready To Install

Dimensions: 11” x 5 1/2”

Panel Material: Marine Acrylic, Polycarbonate, Marine Plexiglass

Black or White Panel / Black or White Premier Gauges

Fog-Resistant Marine Grade Gauges:

  1. Premier 4000 RPM Programmable Tachometer with Digital Hour Meter 7 Character LCD Display
  2. Premier Engine Coolant Water Temp Gauge 120-250°F/50-115°C
  3. Premier Engine Oil Pressure Gauge  0-80 PSI/0-5 Bar

• White Dials and Retainers, Black Graduations and Numerals, Fire-Orange Pointers for Better Visibility
• Scratch-Resistant Curved Glass Lenses
• Stainless Steel Bezel & Red See Thru-Dials for Enhanced Night Visibility
• Iridescent Bulbs with Red Backlighting

Kit Includes:

  1. Fully Wired Instrument Panel with 3 Marine-Grade Gauges
  2. Cole Hersee Sealed Ignition Key Switch with 4 positions (stop, off, ignition, crank)
  3. Backlit LED Alarm Indicator
  4. Panel completely wired to terminal strip for easy installation and troubleshooting.
Features and Benefits of Cole Hersee Sealed Ignition Key Switch:
  1. Engineering Thermoplastic Construction
  2. Fully Sealed Contact Area Using O-Rings and Ultrasonic Welding
  3. Integrated Sealed Deutsch Connector Interface
  4. Anti-Restart and Spring-Return Options Available
  5. Tested to SAE J259 for Ignition Switches
  6. Supplied with Two Matching Keys, with or without Boot
  7. Custom Logo can be Molded on the Boot
  8. Multiple Key Codes or Keyed Alike Available
  9. Key is Removable only at the ‘Off’ Position

An Extensive Series of Ignition Switches can also be Used as Rotary Switches. Suitable for a Broad Range of Voltages: 10A at 12V, 5A at 24V, 3A at 36V and 2A at 48V DC. Made of Rugged Engineering-Grade Plastic, these Switches Stand up to Mechanical Shock & Vibration, and Will not Corrode or Rust. This Switch has an Integrated Deutsch-Type Socket to Make Electrical Connection Quick and Easy & to Exclude Moisture and Dust. UL-Tested & Recognized to SAE J259 for Ignition Switches. Contacts are sealed front and back to IP67 (with connector installed). Many Options Available with Regard to Position, Spring-Return, Key Boot Style and Marking, Actuator Interface and Length, & Anti-Restart Features.

*Sending Units (Optional Add-On): Dual Purpose Sending Units: Sender / Alarm all-in-one unit
  • Temperature Sending Unit
  • Oil Pressure Sending Unit

*Sending Units May Vary Depending on Engine(s)*

*Engine Wiring Harness (Optional Add-On): Lengths of 15ft and 25ft.

*If You Need any Other Length, No Problem — Just Give us a Call!*

    • Single Cable with 12 Marine-Grade Wires
      • 14 Gauge: Black
      • 14 Gauge: Red
      • 16 Gauge: Dark Blue
      • 16 Gauge: Light Blue
      • 16 Gauge: Dark Brown
      • 16 Gauge: Light Brown
      • 16 Gauge: Gray
      • 16 Gauge: Yellow
      • 16 Gauge: White
      • 16 Gauge: Purple
      • 16 Gauge: Light Blue/White Stipe
      • 16 Gauge: Dark Blue/White Stripe
  • This Product Offers a Unique Flame-Retardant Polyvinyl Chloride Compound (VW-1) and is Moisture, Abrasion, Acid, Diesel Fuel, and Oil Resistant. It is Extremely Flexible & Easy to Work With.
  • Single Cable with 12 Marine-Grade Wires – 14/16 AWG
  • Temperature: 105°C dry, 75°C wet
  • Voltage: 600 Volts
  • Stranding: Class K 30 Gauge Tinned Copper
  • Standard: UL 1426 & UL Listed BC-5W2
  • Connects to the Panel via Terminal Strip

*If Engine Octopus is Purchased Along with the Wiring Harness, The Opposing End Will Have a 12-Pin Deutsch Connector*

Marine-Grade Wire & Features:

  • USCG / NMEA Specification Copper-Tinned Wire
  • Flexible Cable – Water and Oil-Resistant
  • 10″ to 12″ Pigtail Harness Connected to 12-Position Terminal Strip

Additional information

Weight 4 lbs
Dimensions 12 × 9 × 6 in
