Description

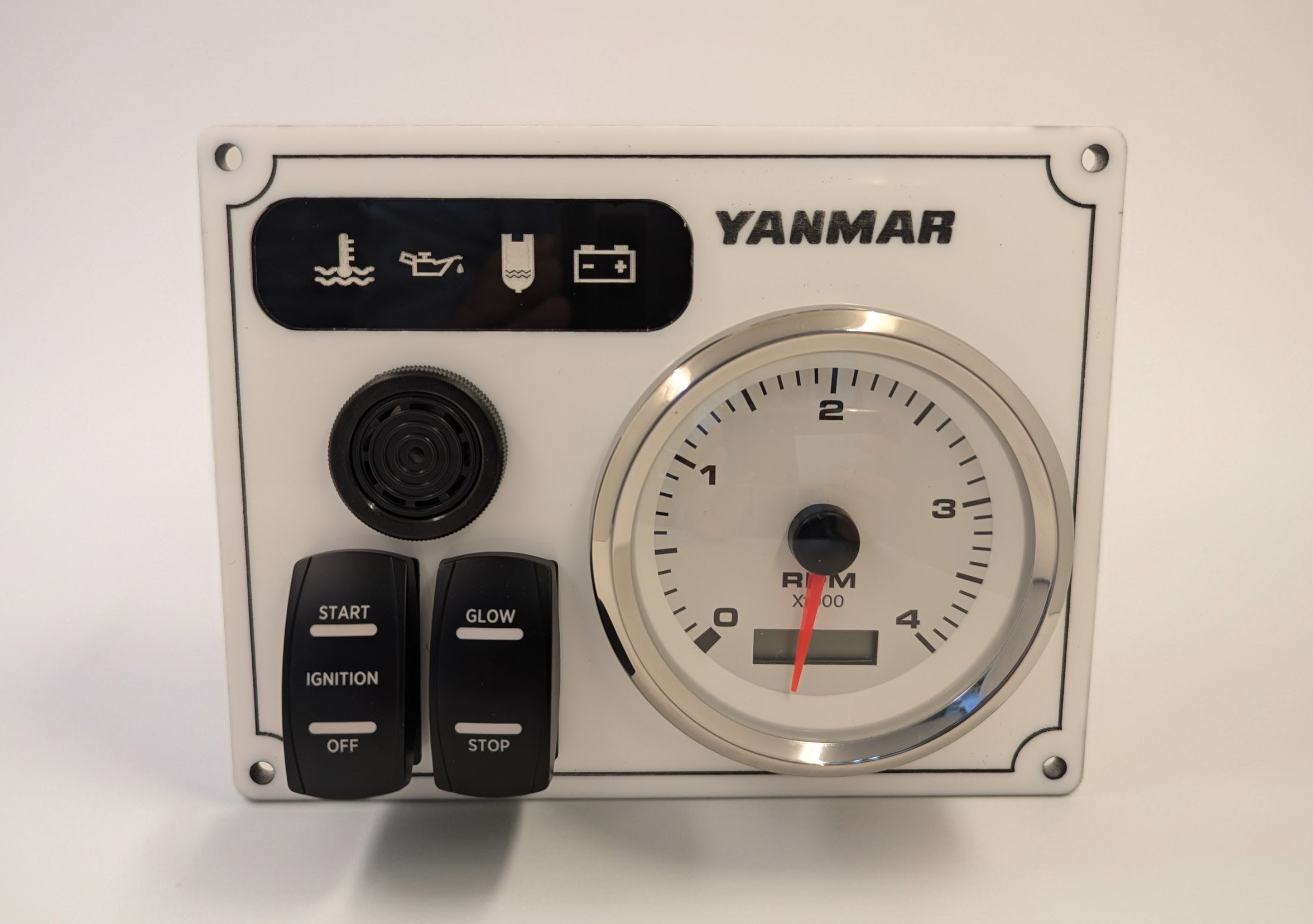

Yanmar Diesel Engine Panel with Rocker Switches 1 Premier Tachometer (Made in USA)
Fully-Wired / Ready to Install
Dimensions: 7 1/8” x 5 1/2”
Panel Material: Marine Acrylic, Polycarbonate, Marine Plexiglass
White Panel / Premier Tachometer + Rocker Switches
Fog-Resistant Marine Grade Tachometer:
- Premier 4000 RPM Programmable Tachometer with Digital Hour Meter 7 Character LCD Display
• Tan Dial and Retainer, Black Graduations and Numerals, Fire-Orange Pointer for Better Visibility
• Scratch-Resistant Curved Glass Lenses
• White Perimeter & Red Thru-Dial for Enhanced Night Visibility
• Stainless Steel Silver Bezel
• Iridescent Bulb with Red Backlighting
Kit Includes:
- Fully Wired Instrument Panel with 1 Marine-Grade Tachometer
- Alarm Warning LEDs
- Rocker Switches (Fully Customizable — Number of Switches and/or Cover Types)
*Engine Wiring Harness (Optional Add-On): Lengths of 15ft and 25ft.
*If You Need any Other Length, No Problem — Just Give us a Call!*
-
- Single Cable with 12 Marine-Grade Wires
- 14 Gauge: Black
- 14 Gauge: Red
- 16 Gauge: Dark Blue
- 16 Gauge: Light Blue
- 16 Gauge: Dark Brown
- 16 Gauge: Light Brown
- 16 Gauge: Gray
- 16 Gauge: Yellow
- 16 Gauge: White
- 16 Gauge: Purple
- 16 Gauge: Light Blue/White Stipe
- 16 Gauge: Dark Blue/White Stripe
- Single Cable with 12 Marine-Grade Wires
- This Product Offers a Unique Flame-Retardant Polyvinyl Chloride Compound (VW-1) and is Moisture, Abrasion, Acid, Diesel Fuel, and Oil Resistant. It is Extremely Flexible & Easy to Work With.
- Single Cable with 12 Marine-Grade Wires – 14/16 AWG
- Temperature: 105°C dry, 75°C wet
- Voltage: 600 Volts
- Stranding: Class K 30 Gauge Tinned Copper
- Standard: UL 1426 & UL Listed BC-5W2
- Connects to the Panel via Terminal Strip
*If Engine Octopus is Purchased Along with the Wiring Harness, The Opposing End Will Have a 12-Pin Deutsch Connector*
*DOES NOT COME WIRED TO TERMINAL STRIP*
Marine-Grade Wire & Features:
- USCG / NMEA Specification Copper-Tinned Wire
- Flexible Cable – Water and Oil-Resistant
- 10″ to 12″ Pigtail Harness Connected to 12-Position Terminal Strip
12 Circuit 30 Amp Terminal Strip Features:
- Closed Back Design Completely Insulates Power from the Mounting Surface
- Each Screw Pair is one Isolated Circuit
- Jumpers Allow Creation of Common Circuits
Additional Options Available:
- Black or White Panel
- Engraved with Engine Name (Optional – Your Boat Name)
- Customize Panel Size, Gauges, Design, and Switches — Just Contact Us (Extra Charges May Apply)
Please Specify Your Requirements
If You Have any Technical Questions, Please Feel Free to Call or Email Us
All Panels are Made in the USA by AC DC Marine Inc. Torrance, California
