Description

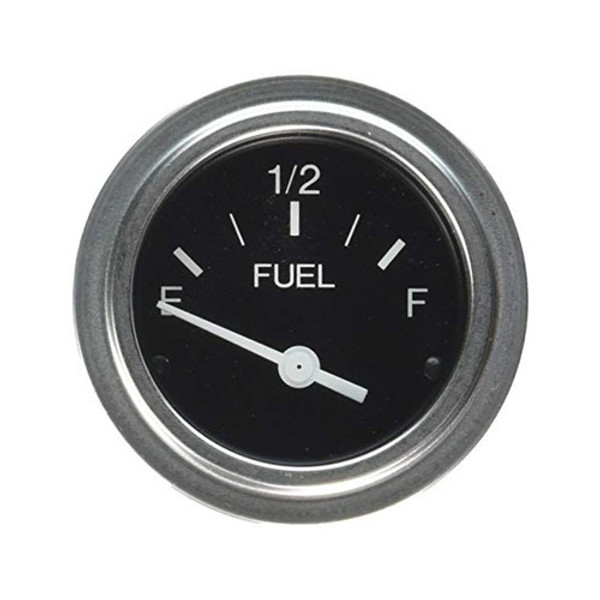

Sierra Heavy Duty Series Fuel Level Gauge
Features:
- Functions:
- Fuel tank level E – 1/2 – F
- Large easy-to-read graphics and perimeter lighting for excellent visibility under all conditions
- Fuel tank level displayed by contoured analog pointer on a calibrated dial
- Low-profile brushed stainless steel bezel
- Fits standard 2″ instrument dash mounting hole
- Ideal replacement for Stewart-Warner® “Deluxe” instruments
- 2-Year limited warranty
Specifications:
- Sierra Model No. 80150
- Style: Heavy Duty Series
- Installation Diameter: 2.13″
- Dial: Edge-lit black dial with classic white graphics, brushed stainless steel bezel, contoured white analog pointer, and scratch-resistant glass lens
- Input Type: Electrical
- Sender (not included/purchase separately): US Ohm range 240 – 33 Ohm
- Nominal Voltage: 12V DC
- Current Draw: 0.10 – 0.15 Amp
- Operating Temperature: -40 to +70° C
- Ingress Protection (gauge front): IP65 (Dustproof/protected against jets of water from all directions)
DOES NOT COME WITH LIGHT BLUB. ($10 for lightblub)
