Description

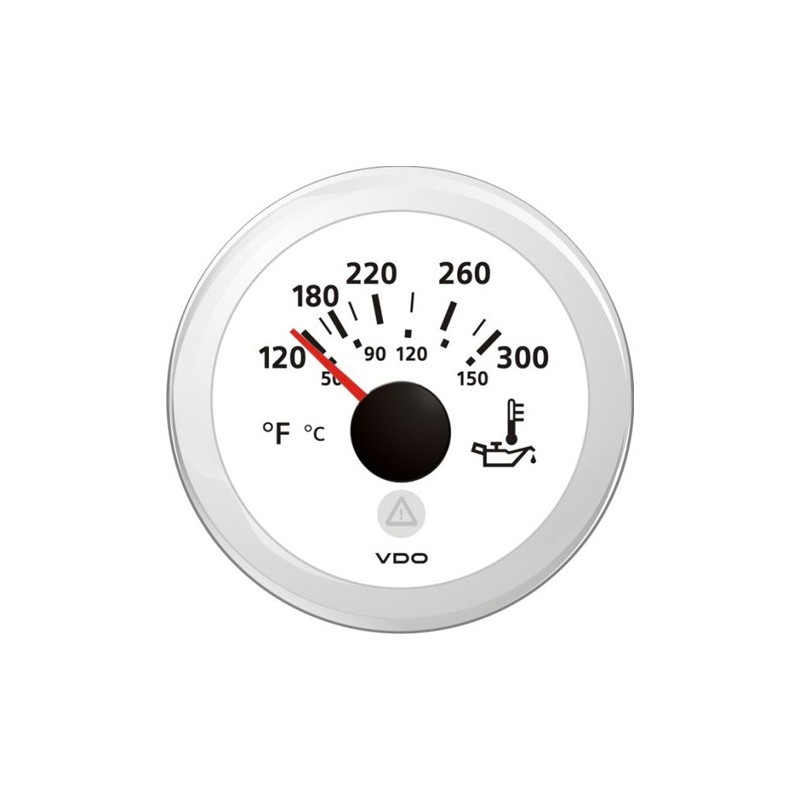

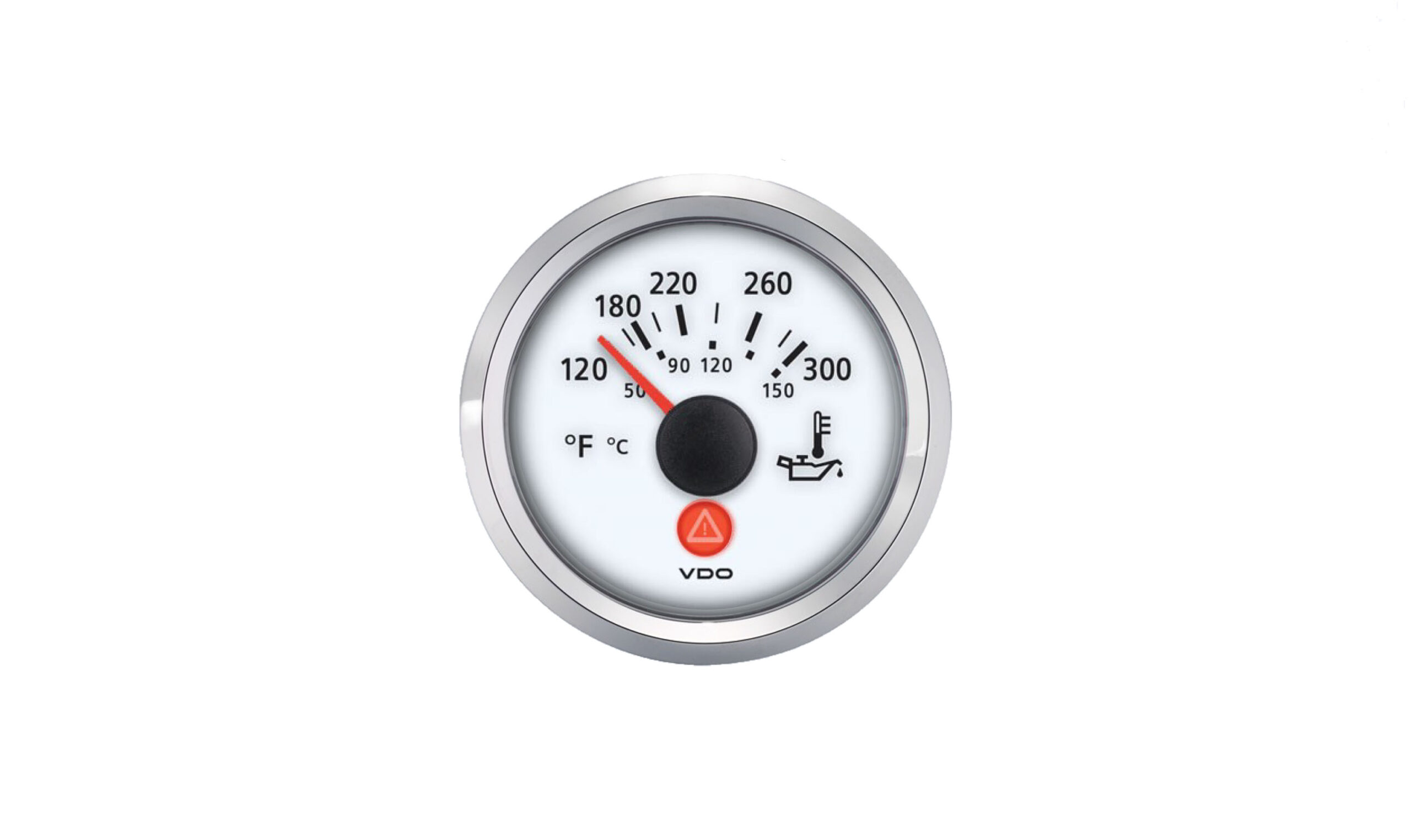

VDO Switzerland Marine 2-1/16 in. ViewLine 300F/150C Electric Oil Temperature Gauge 12/24V White Dial and Bezel
Description
Gauge to indicate Engine oil, Hydraulic Fluid, Gear Oil or cylinder temperature
Features
_ LED Illumination
_ Integrated Warning LED
_ Changeable Front bezels
_ Antifog and splash protection
_ Panel and Flush mount possibility
_ High reliability
Concept
Housing: Polycarbonate (PC)
Lens: PMMA; double lens
Dial: LED amber (605nm)
Pointer: LED red (632nm)
Warning LED red (632nm)
Mounting: Spinlock Nut; locking height 0,5mm – 20mm,
Optional Studs and Bracket; locking height 2 – 15mm
Connection: 8 pin MQS connector system
Viewline Bezel Triangle 52 MM Chrome SKU: A2C53186026-S
We have a variety of Bezels (black or chrome, triangle) Please, contact us for more information.
[pdf-embedder url=”https://acdcmarineinc.com/wp-content/uploads/2020/09/A2C59514234-VL-Standard-Resistive-Gauges-52mm-12-24V-10_11_11-Rev-1-1.pdf” title=”A2C59514234 — VL Standard Resistive Gauges 52mm 12-24V 10_11_11 Rev-“]
