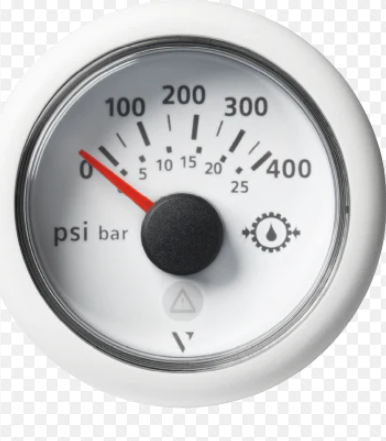

VDO Switzerland Marine Viewline 400 PSI/25 bar Pressure Gauge 12/24 Volt White Dial and Bezel
Description
Gauge to indicate Transmission / Gearbox oil, Hydraulic oil, Brake fluid or Air pressure.
Features
_ LED Illumination
_ Integrated Warning LED
_ Backlit Technology
_ Changeable Front bezels
_ Antifog and splash protection
_ Panel and Flush mount possibility
_ High reliability
Concept
Housing: Polycarbonate (PC)
Lens: PMMA; double lens
Dial: LED amber (605nm)
Pointer: LED red (632nm)
Warning LED red (632nm)
Mounting: Spinlock Nut; locking height 0,5mm – 20mm,
Optional Studs and Bracket; locking height 2 – 15mm
Connection: 8 pin MQS connector system
Viewline Bezel Triangle 52 MM Black SKU: A2C53186024-S
We have a variety of Bezels (black or chrome, triangle) Please, contact us for more information.
