Description

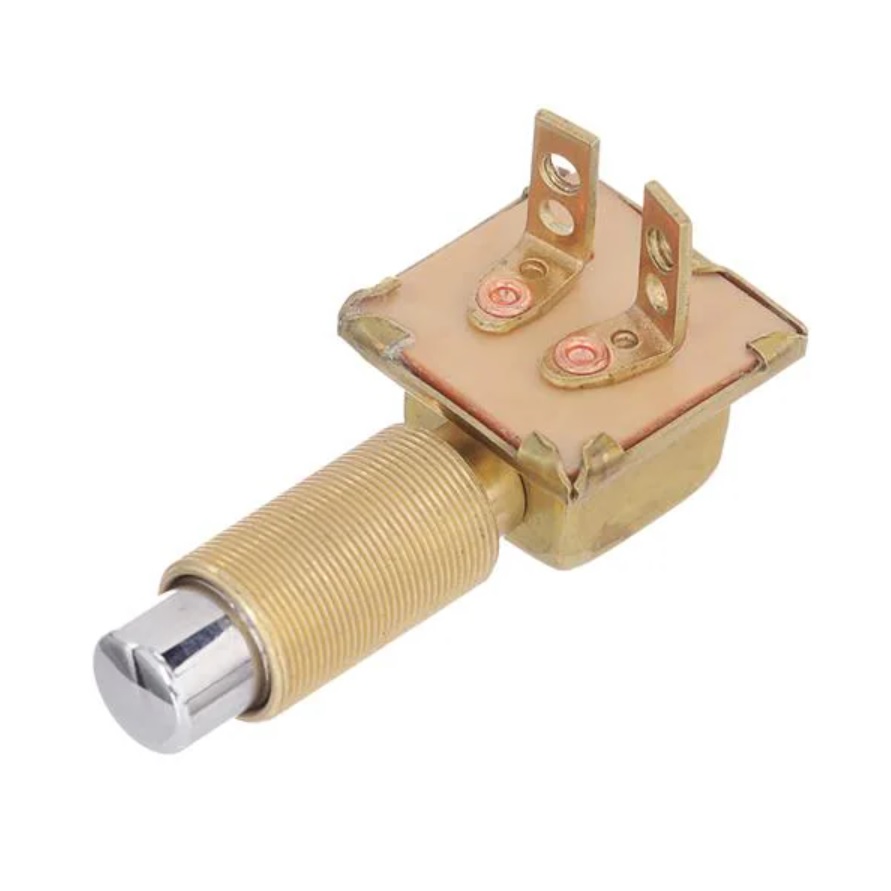

Cole Hersee M-639-BX Push Button Switch Normally Closed
Product Description
- Two brass screw terminals.
- Dimensions: 1″L x 5/8″ mounting stem Cut-Out: 5/8″ dia
- Silver contacts
- Normally Closed
| Switch type | Push Button Momentary |
| Description | Marine Construction |
| Normal position | Normally Off, push to On |
| Circuitry | SPST |
| Terminals | Two brass screw |
| Mounting stem thread | brass 5/8″ -32, 1 3/8″ long (34.9mm) |
| Case material | Brass |
| Contacts | Silver |
| Current rating at 12 VDC | 35A at 12V, 20A at 24V, 10A at 36V DC |
