Description

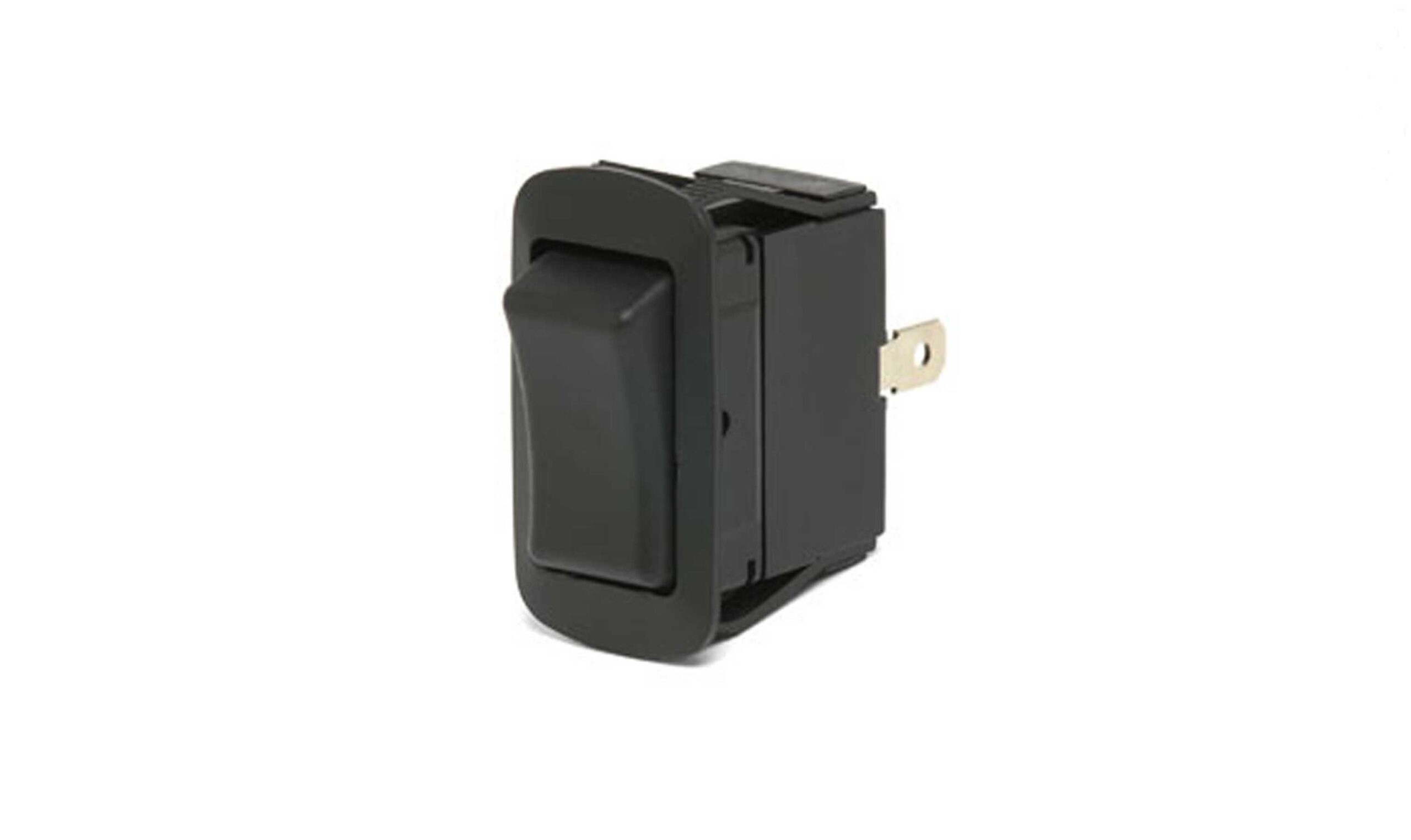

DPDT Mom On-On-Off Ignition/Start Rocker Switch
| Switch type | Rocker |
| Description | Universal Weather-Resistant Rocker Switch |
| Circuitry | DPST |
| Electrical rating | 25A at 12V DC |
| Contacts | Silver |
| Housing | Plastic, Black |
| Up position | Off |
| Center position | None |
| Down position | On (2-3 ; 5-6) |
| Terminals | 4 blade |
| Actuator material | Plastic |
| Actuator type | Rocker Button/ sealed |
| Actuator: inches | 1.19″ x .660″ |
| Actuator: mm | Universal Weather-Resistant Rocker Switch |
| Actuator color | Black |
| Actuator imprint | None |
| Illuminated | No |
| Lens 1 color | None |
| Lens 2 color | None |
| Lens 1 size | Not applicable |
| Lens 2 size | Not applicable |
| Lens 1 imprint | None |
| Lens 2 imprint | None |
| Imprint color | None |
| Bezel type | Plastic, Black |
| Bezel size | .964″(24.52mm) x 1.69″(43.16) |
| Mounting | Panel snap-in |
| Panel thickness | .093″ (2.37mm) to .187″ (4.76mm) |
| Mounting hole: inches | 1.45″ x .830″ |
| Mounting hole: mm | 36.83mm x 21.08mm |
