NMEA 2000 Network Converter NCK43 – 1 Channel (0-180 Ohm) (Analog to NMEA Converter)

• NKC series attaches directly into NMEA 2000 networks of comparable engines, transmissions and gen-sets and converts the signals to the NMEA 2000
•  NMEA 2000 output for use with on board device
• NKC series can be used to get engine data, tank levels, alarm status, generic pressure and temperature indications from any resistive sensors.

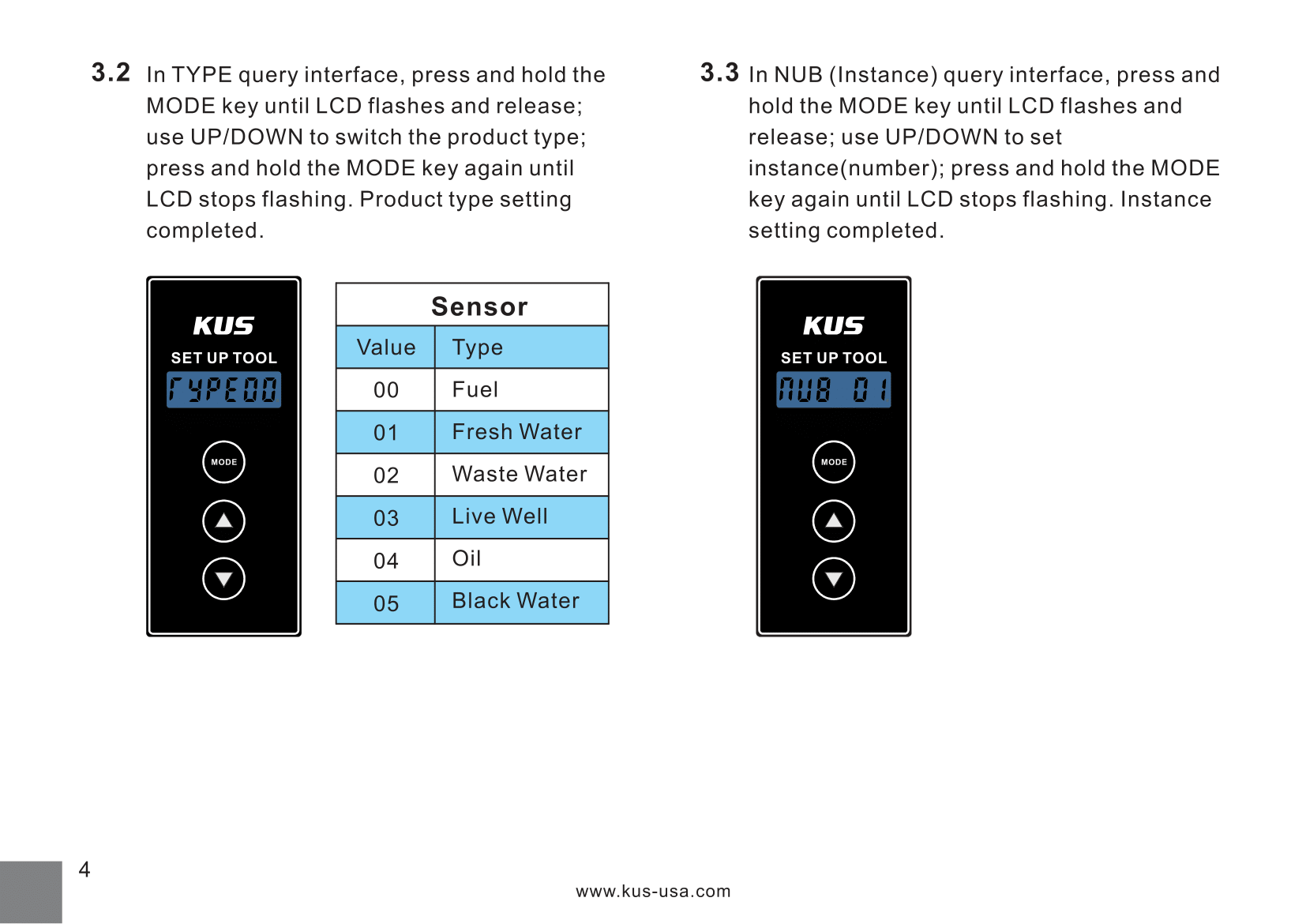

• Programmable sensor types including fuel, fresh water, waste water, live water, oil, and black water.
• Programmable sensor number up to 16 per sensor type
• Adapts analog resistive to NMEA 2000 network 0-190 Ohms.

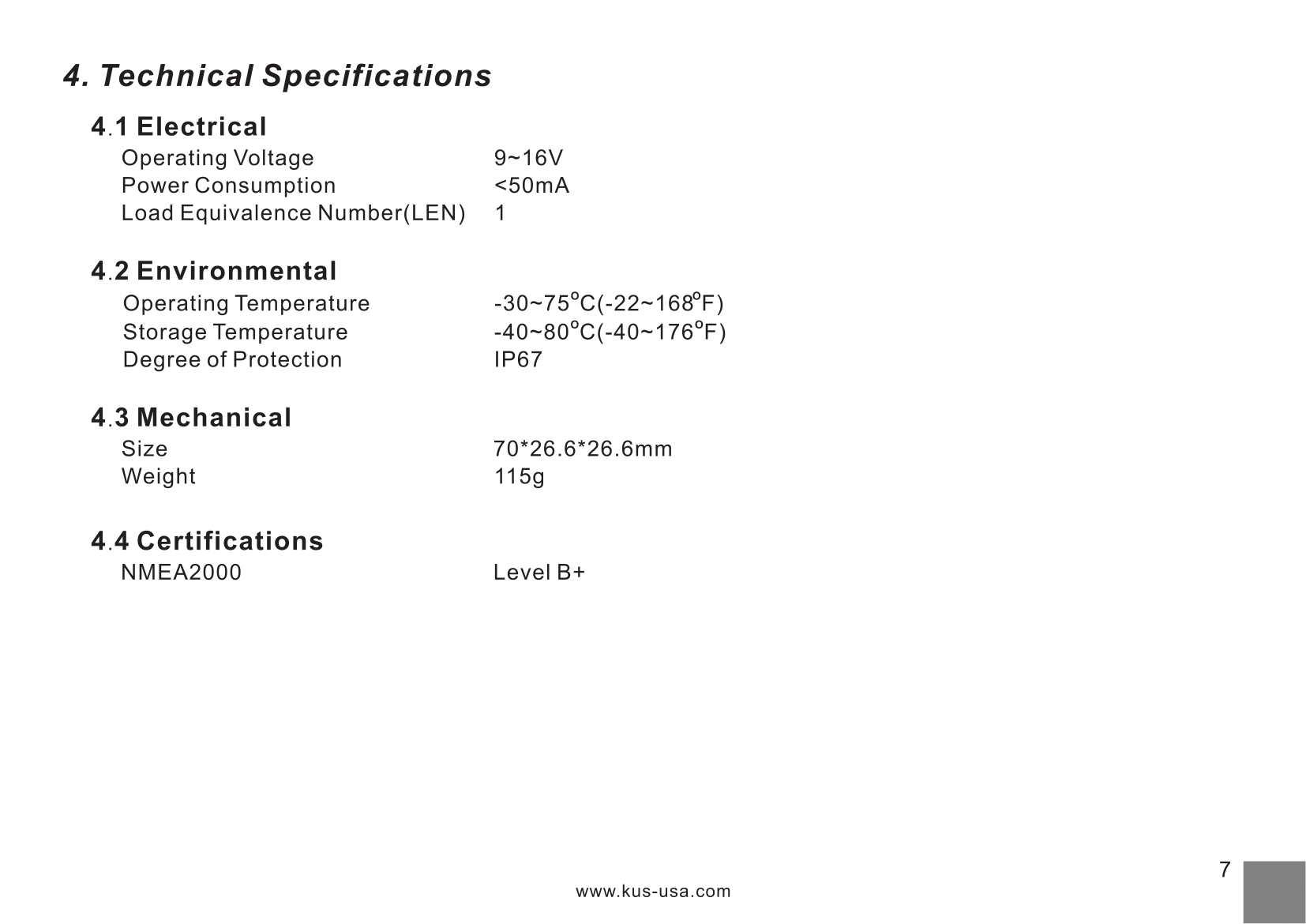

Specifications:

• Item No.: 1 Channels (JX200066)
• Protection Rating: IP67

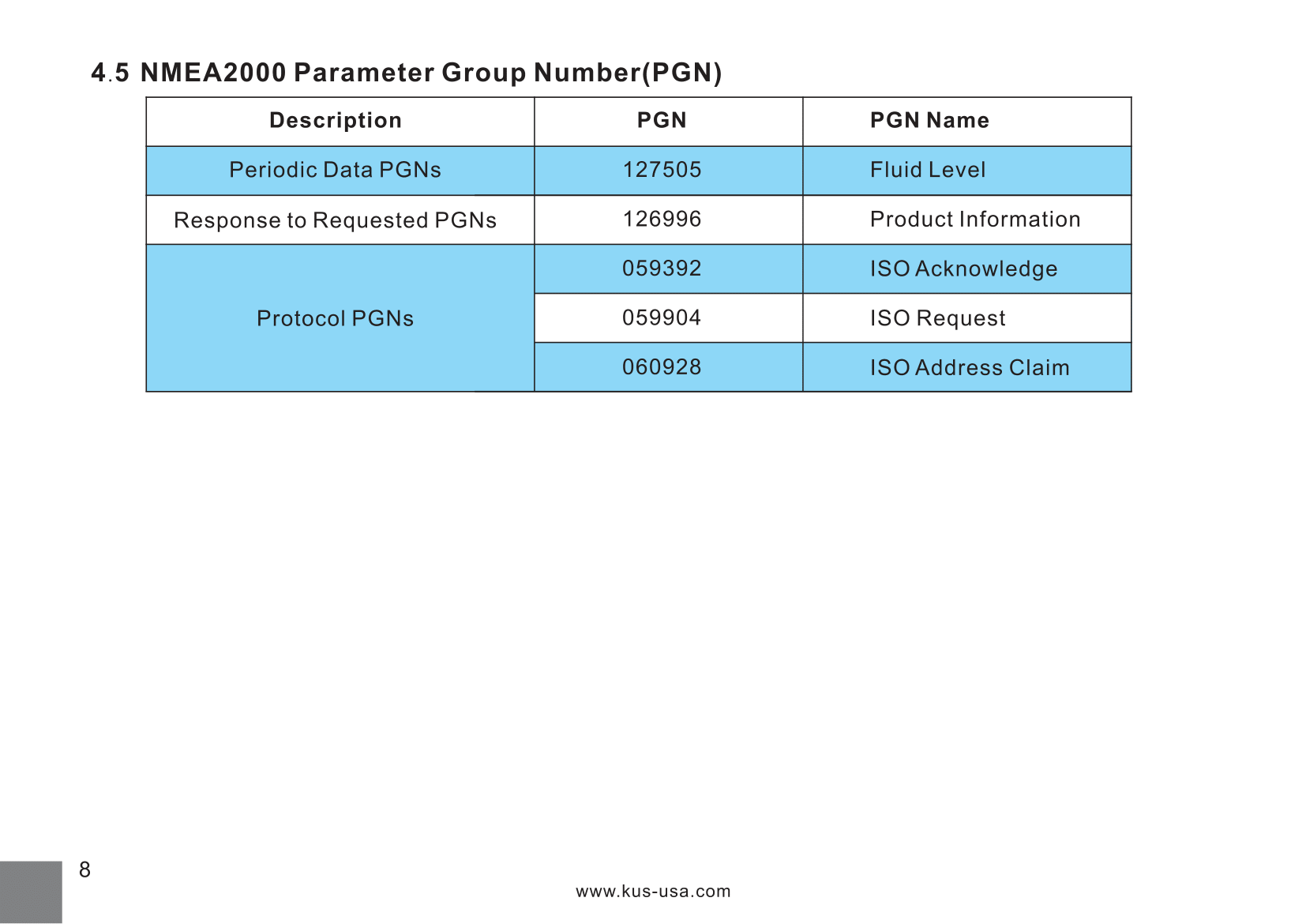

• Signal Output: NMEA 2000/J1939 Network Messages
• Operating Voltage: 8~16V
• Connector: Male “Micro-C” Pinout
• Operation Temperature: -40°F ~ +185°F(-40°C~+85°C)
• Mac Current: 50mA
