CX2425Description

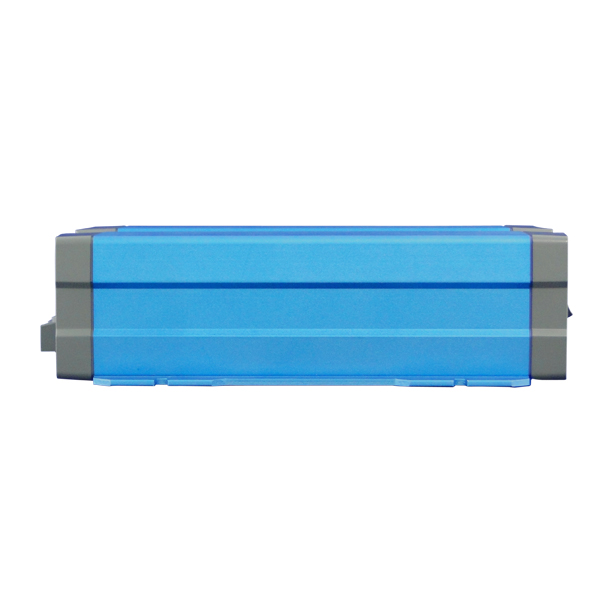

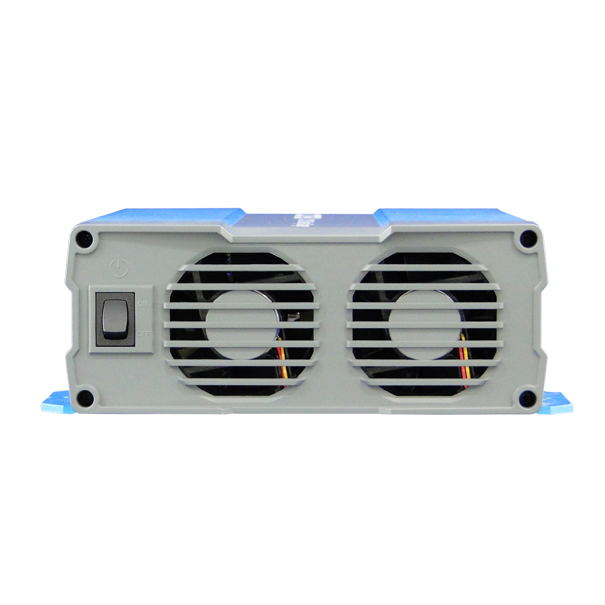

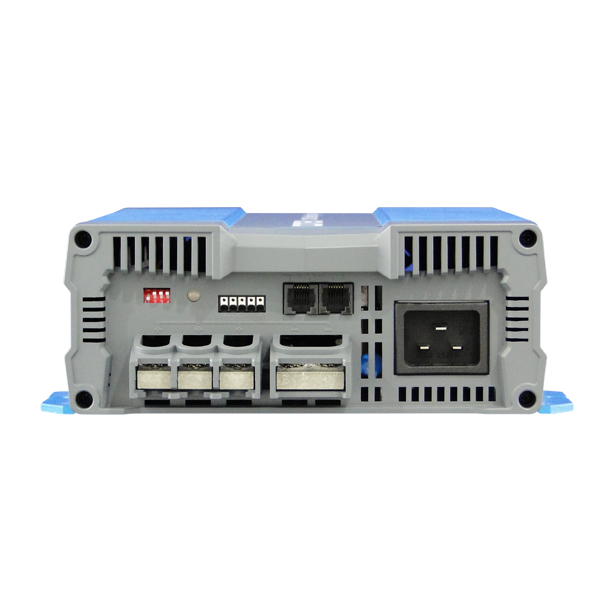

Battery Charger COTEK CX-2425
CX2425 Features
- Universal AC input with active PFC
- Suitable for lead-acid, Li-ion, Gel and AGM batteries
- 3-stage charging mode
- Dry contact for alarm
- Support RS-232 communication protocol
- Voltage temperature compensation
- 2 stage fan speed control (sleep mode)
- High efficiency and high reliability
- Built-in battery rescue function
- Triple output design support three batteries
- Protection: Short Circuit / Over Voltage / Over Temperature / Brown-out
- Withstand 2G vibration test
- CE approved
Product Specification:
MODEL |
CX2425 |
Main Features |
◎ Built-in Engine Start Battery (ESB) output ◎ 3-stage charging mode ◎ Green design (sleep mode): charging with low low audible noise |
Battery Type |
Lead Acid / Li-ion / Gel / AGM |
Output Voltage |
24V |
Standard Boost Charge Voltage |
28.8V / 29.4V (select by switch) |
Standard Float Charge Voltage |
27.6V / 27V (select by switch) |
Main Rated Current |
25A |
Main Output (Quantity) |
3 |
Input Voltage Range |
90~264VAC |
Efficiency |
90% |
Operating Temperature |
-20~50℃ |
Storage Temperature |
-40~75℃ |
Safety |
CE |
Dimension (WxHxD) |
213x77x272 mm |
Weight (Net) |
2.9 KG
|
Specification PDF :cotek-cotek-cx-2415-charger-specs-2271523490
