Description

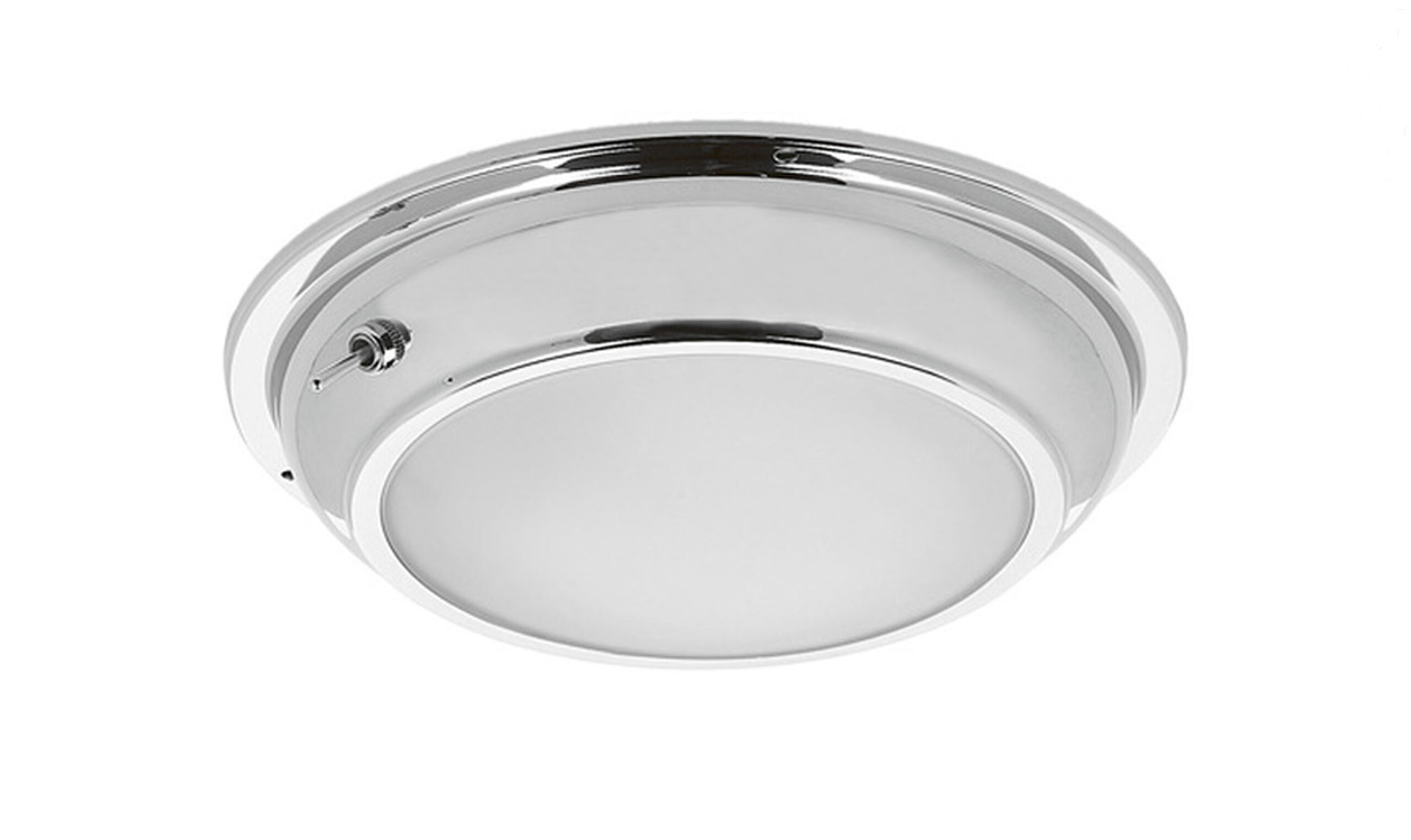

Gibraltar PowerLED with Toggle Switch, 10-30VDC, Stainless Steel, 2 x 3W LEDs, Warm White, IP55
The Gibraltar surface-mount dome light is an attractive and durable dome light fixture that may be used for general interior illumination or for exterior helm and cockpit illumination. Its stylish highly polished stainless steel bezel with solid frosted glass makes this fixture a real style point on any vessel large or small.
| Integrated Switch | Yes, One-Way Toggle |
| Output Color | Warm White |
| Lifetime Hours | 50,000 hrs (L70) |
| Dimmer Control Interface | On/Off toggle switch (optional dimming) |
| Trim Ring (Bezel) Dimensions | 6.53″ (166mm) x 1.42″ (36mm) |
| Input Voltage | 10-30VDC |
| Finish | Polished Stainless Steel |
| Manufacturer | Imtra |
| Lens Material | Frosted Tempered Glass |
| Max. Wattage | 5.5W |
| Mounting Method | Screws |
| Beam Angle | 84° |
| Luminous Flux | 232 lms |
| Electrical Protections | Spikes (up to 200V), Transient Protection |
| Correlated Color Temperature (CCT) | 2800K |
| Color Rendering Index (CRI) | 83 |
| Approximate Ship Weight (lbs) | 1 |
Features:
- Simple surface-mount installation with screws
- Built-In switch for on/off
- All Stainless steel construction
- Solid glass frosted lens
- Double gaskets – provides IP54 Protection
- PWM Dimming Interface
- No Radiated Heat
Specs:
- Trim Ring: Stainless Steel
- Output Color: Warm White
- Power Consumption: 4.7W
- Luminous Flux: 232 Lumens
- Halogen Equivalency: 30W
- Input Voltage: 10-30VDC
- Trim Ring Diameter: 6.53″ (166mm)
- Fixture Height: 1.42″ (36mm)
- Lens Material: Frosted Tempered Glass
- Correlated Color Temperature (CCT): 2800K
- Lifetime Hours: 50,000 Hours (70% light output)
- Dimmer Compatibility: PWM
- Mounting Method: Screws
- Warranty: 5 Years
