Custom Dual Engine Cummins Panel + Rocker Switches – 8 OceanLink Gauges + 2 OceanLink TFT Displays
Dimensions: 19 3/8” x 13”
Panel Material: Marine Acrylic, Polycarbonate, Marine Plexiglass
Custom Black Panel / Black Gauges & Rocker Switches + TFT Displays

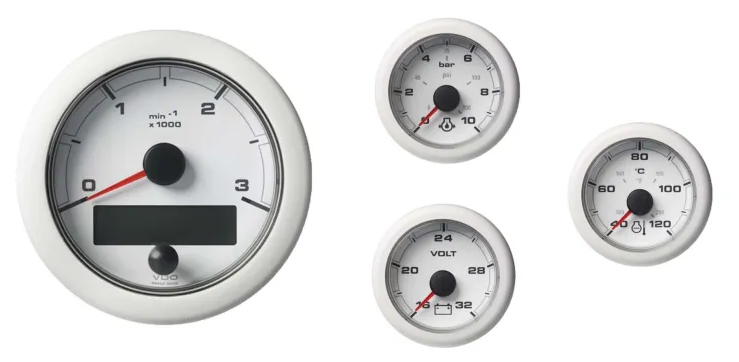

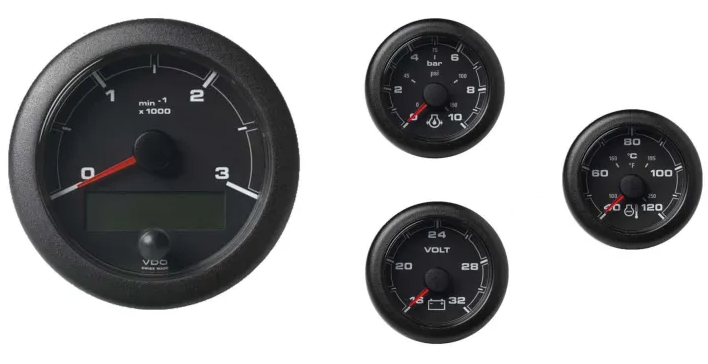

Fog-Resistant Marine Grade Gauges:
- 2x OceanLink 3000, 5000 or 7000 RPM Programmable Tachometers with Digital Multi-Function LCD Displays (All Pick-Ups Compatible)
- 2x OceanLink Engine Coolant Water Temp Gauges 100-250°F/40-120°C
- 2x OceanLink Engine Oil Pressure Gauges 0-150 PSi/0-10 Bar
- 2x OceanLink 12v or 24v Voltmeters
- 2x OceanLink 4.3″ TFT Displays
• 2x NMEA 2000® Input
• 2x J1939 and analog input
• 2x Alarm output 500 mA
• Reverse Polarity Protection
• Protection Rating IPX7
• Operating Temperature Range -20 °C/+70°C
OceanLink™ 52MM Gauges are Connected Directly to any OceanLink™ Master Unit Using the Patented EasyLink Serial Bus Connection.
EasyLink Data Connection makes Installation Easy and Cost-Effective. Satellite Instruments for Further Dynamic Measurement Values Receive Updates from the Central Instrument Every 20 msec.
- OceanLink Master 4.3’’ is a Multifunction Display That Lets You Monitor Engines and Related Sensor Parameters. Up to Four Engines can be Connected to the Display.
- The Integrated NMEA 2000 Gateway Lets You Acquire Engine Data also via Analog Signals or SAE J1939/ to then Convert and Distribute them on NMEA 2000 Network.
- The Display Manages Up to Two Resistive Sensors, Two Capacitive Sensors and One Digital Alarm.
- All Data are also Distributed on a EasyLink Channel to a Maximum of 16 52mm OceanLink Gauges.
- NMEA 2000 Connectivity Allows For View Navigation Data from Other Devices on the Network, Such as Wind, Compass, GPS, Speed and Depth Data.
- OceanLink Display 4.3’’ TFT is a Versatile Device. It Allows For Control of All Connected Engines in a Single Monitoring Point and at the Same Time. The Motor Whose Data is Displayed is Selected During Data Page Configuration.
- Data Pages Display Data Received from the Various Sources. There Can be Up to 10 Data Pages.
-
- Optically Bonded Mineral Glass Lens
- Front & Rear Side Protection Rating IPX7
- 1x NMEA 2000® Connector
- 1x J1939
- 2x 4–20 mA Inputs
- 2x Analog Inputs
- 1x Frequency Input
- 1x EasyLink Data Output
- 1x Programmable Alarm Output 500 mA
- Operating Temperature Range -30°C/+80°C
Kit Includes:
- Fully Wired Instrument Panel with 8 Marine Grade Gauges & 2 OceanLink 4.3″ TFT Displays
- 5x Marine-Grade Button Switches
- 5x Rocker Switches (Fully Customizable — Number of Switches and/or Types)
- 2x LED Engine Alarm Lights
- 2x Cole Hersee Sealed Ignition Key Switches
- 2x Piezo Siren Alarms
Features and Benefits of Cole Hersee Sealed Ignition Key Switch:
- Engineering Thermoplastic Construction
- Fully Sealed Contact Area Using O-Rings and Ultrasonic Welding
- Integrated Sealed Deutsch Connector Interface
- Anti-Restart and Spring-Return Options Available
- Tested to SAE J259 for Ignition Switches
- Supplied with Two Matching Keys, with or without Boot
- Custom Logo can be Molded on the Boot
- Multiple Key Codes or Keyed Alike Available
- Key is Removable only at the ‘Off’ Position
An Extensive Series of Ignition Switches can also be Used as Rotary Switches. Suitable for a Broad Range of Voltages: 10A at 12V, 5A at 24V, 3A at 36V and 2A at 48V DC. Made of Rugged Engineering-Grade Plastic, these Switches Stand up to Mechanical Shock & Vibration, and Will not Corrode or Rust. This Switch has an Integrated Deutsch-Type Socket to Make Electrical Connection Quick and Easy & to Exclude Moisture and Dust. UL-Tested & Recognized to SAE J259 for Ignition Switches. Contacts are sealed front and back to IP67 (with connector installed). Many Options Available with Regard to Position, Spring-Return, Key Boot Style and Marking, Actuator Interface and Length, & Anti-Restart Features.
*Sending Units (Optional Add-On): Dual Purpose – Signal and Alarm
-
- Temperature Sending Unit
- Oil Pressure Sending Unit
*Sending Units May Vary Depending on Engine(s)*
*Engine Wiring Harness (Optional Add-On): Lengths of 30ft and 50ft.
*If you need any Other Length, No Problem. Just Give us a Call!*
-
- This Product Offers a Unique Flame-Retardant Polyvinyl Chloride Compound (VW-1) and is Moisture, Abrasion, Acid, Diesel Fuel, and Oil Resistant. It is Extremely Flexible & Easy to Work With.
- Single Cable with 12 Marine-Grade Wires – 14/16 AWG
- Temperature: 105°C Dry, 75°C Wet
- Voltage: 600 Volts
- Stranding: Class K 30 Gauge Tinned Copper
- Standard: UL 1426 & UL Listed BC-5W2
- Connected to the Panel via Terminal Strip
*If Engine Octopus is Purchased Along with the Wiring Harness, The Opposing End will Have a 12-Pin Deutsch Connector*
Marine-Grade Wire & Features:
- USCG / NMEA Specification Copper-Tinned Wire
- Flexible Cable – Water and Oil-Resistant
- 10″ to 12″ Pigtail Harness Connected to 12-Position Terminal Strip
12 Circuit 30 Amp Terminal Strip Features:
- Closed-Back Design Completely Insulates Power From the Mounting Surface
- Each Screw Pair is One Isolated Circuit
- Jumpers Allow the Creation of Common Circuits
Additional Options Available:
- Black or White Panel
- Black, White and Chrome Bezels Available & Sold Separately
- Engraved with Engine Name (Optional – Your Boat Name)
- Customize Panel Size, Gauges, Design, and Switches — Just Contact Us (Extra Charges May Apply)
Please Specify Your Requirements
If You Have any Technical Questions, Please Feel Free to Call or Email Us.
All Panels are Made in the USA by AC DC Marine Inc. Torrance, California
