Description
Custom Dual Engine Marine Instrument Panel Set of 2
2 Custom Black Panels / White Premier Gauges W/ Optional Custom Logo
Panel Material: Marine Acrylic, Polycarbonate, Marine Plexiglass
Fog-Resistant Marine Grade Gauges:
- 2x 4000 RPM Tachometers
- LED Alarms
- Piezo Siren Alarm
Kit Includes:
- Two Fully Wired Instrument Panels with 2 Marine-Grade Tachometers
-
- Temperature Sending Unit
- Oil Pressure Sending Unit
*Sending Units May Vary Depending on Engine(s)*
*Engine Wiring Harness (Optional Add-On): Lengths of 30ft and 50ft.
*If You Need any Other Length, No Problem — Just Give us a Call!*
-
- This Product Offers a Unique Flame-Retardant Polyvinyl Chloride Compound (VW-1) and is Moisture, Abrasion, Acid, Diesel Fuel, and Oil Resistant. It is Extremely Flexible & Easy to Work With.
- Single Cable with 12 Marine-Grade Wires – 14/16 AWG
- Temperature: 105°C Dry, 75°C Wet
- Voltage: 600 Volts
- Stranding: Class K 30 Gauge Tinned Copper
- Standard: UL 1426 & UL Listed BC-5W2
- Connected to the Panel via Terminal Strip
*If Engine Octopus is Purchased Along with the Wiring Harness, The Opposing End Will Have a 12-Pin Deutsch Connector*
Marine-Grade Wire & Features:
- USCG / NMEA Specification Copper-Tinned Wire
- Flexible Cable – Water and Oil-Resistant

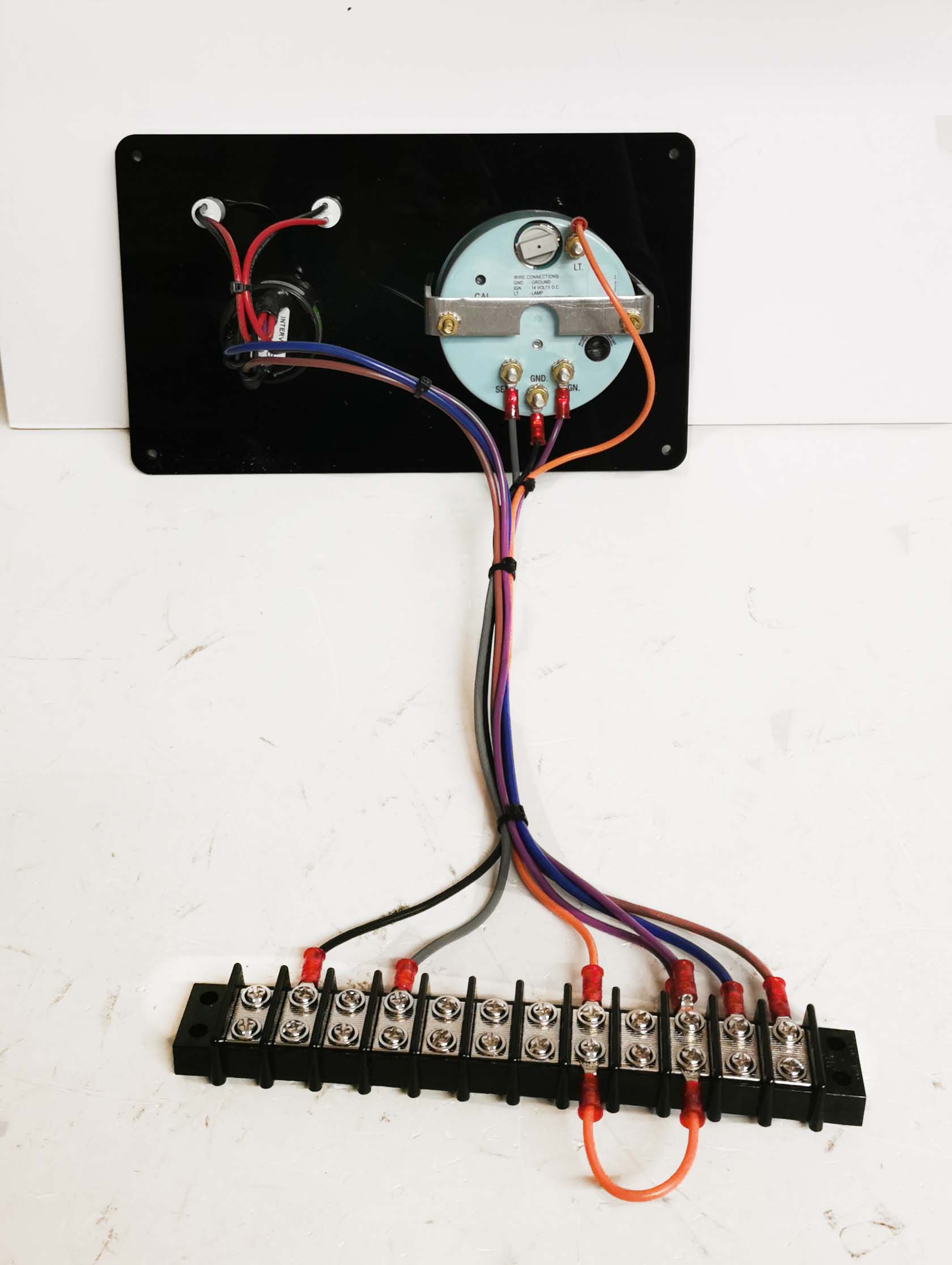

- 10″ to 12″ Pigtail Harness Connected to 12-Position Terminal Strip
12 Circuit 30 Amp Terminal Strip Features:
- Closed-Back Design Completely Insulates Power From the Mounting Surface
- Each Screw Pair is One Isolated Circuit
- Jumpers Allow the Creation of Common Circuits
Additional Options Available:
- Black or White Panel
- Engraved with Engine Name (Optional – Your Boat Name)
- Customize Panel Size, Gauges, Design, and Switches — Just contact us —(Additional Charges May Apply)
Please Specify Your Requirements
If You Have any Technical Questions, Please Feel Free to Call or Email us.
All Panels are Made in the USA by AC DC Marine Inc. Torrance, California
