Description
Doosan Marine Engine Panel in Custom Enclosure Box 5 ViewLine Gauges
Dimensions: 11 1/2” x 7 1/2″
Panel Material: Marine Acrylic, Polycarbonate, Marine Plexiglass
Black Panel in Custom Enclosre Box / ViewLine Gauges
Fog-Resistant Marine Grade Gauges:
- ViewLine 3000, 4000, 5000 or 7000 RPM Programmable Tachometers w/ Digital Hour Meter 7 Character LCD Display (All Pick-Ups Compatible)
- ViewLine Engine Coolant Water Temp Gauges 100-250 °F/50-115°C
- ViewLine Engine Oil Pressure Gauges 0-80 PSI/0-5 Bar
- ViewLine 12v or 24v Voltmeters
- ViewLine Fuel Gauge
• LED Illumination
• Integrated Warning LED’s
• Red LED Back-lit Technology
• Panel and Flush Mount Possibility
• Changeable Front Bezels
ViewLine Gauges are Available With or Without Operating Hours Counter (Digital Display) and Can be Connected to Conventional Marine Engines (No Data Bus). One LED Warning Light is Integrated as a Standard.
ViewLine Gauges are Equipped with a Red Warning LED as a Standard. The Warning Point Depends on the Chosen Pressure Sensor with Warning Contact.
Kit Includes:
- Fully Wired Instrument Panel with 5 Marine-Grade Gauges

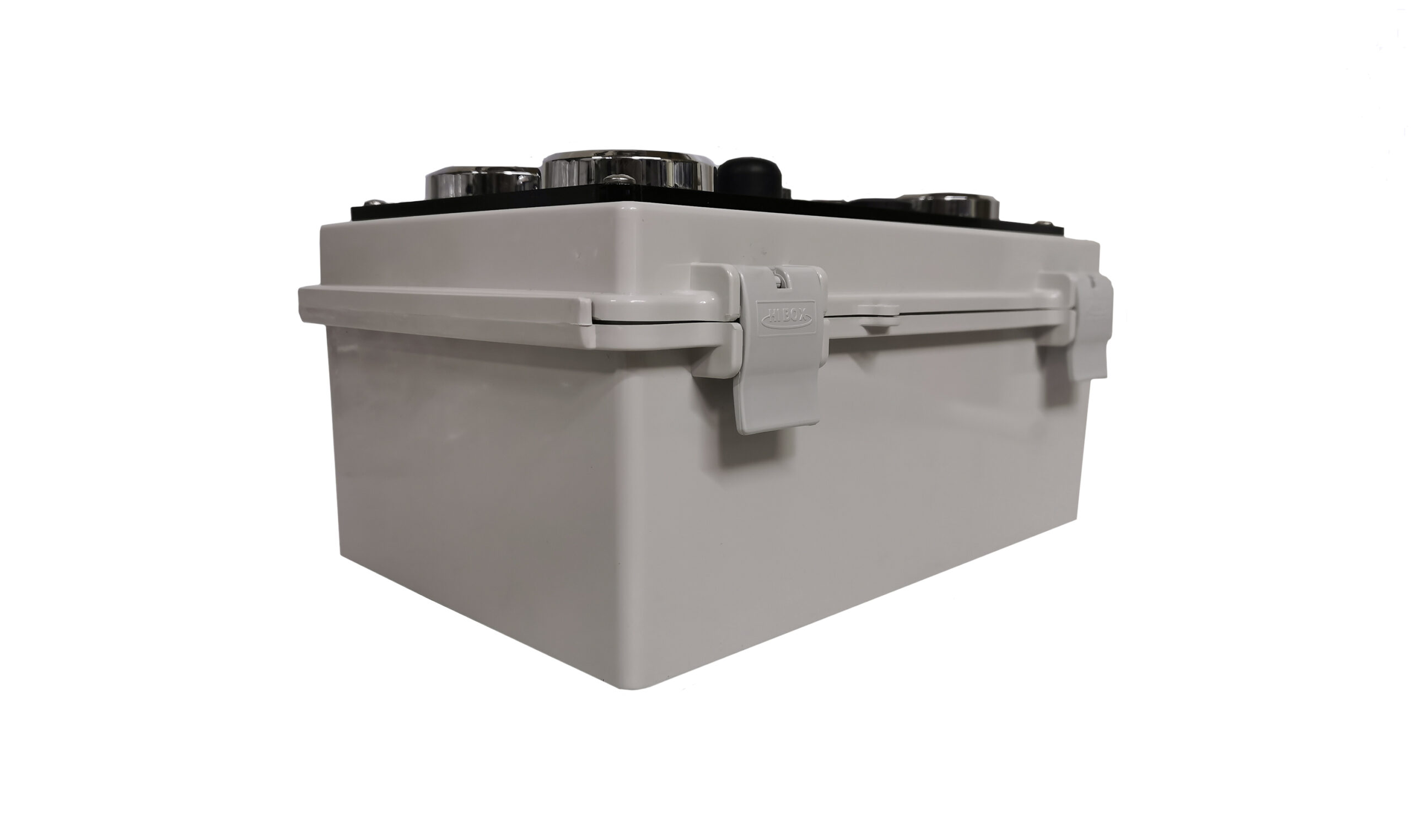

- Fiberglass Reinforced Polycarbonate Base and Polycarbonate Box NEMA 4x Rated
- Push Button Switch for Engine Stop, Preheat, Test, Mode, Prog, etc.
- Cole Hersee Sealed Ignition Key Switch
- Piezo Siren Alarm
Features and Benefits of Cole Hersee Sealed Ignition Key Switch:
- Engineering Thermoplastic Construction
- Fully Sealed Contact Area Using O-Rings and Ultrasonic Welding
- Integrated Sealed Deutsch Connector Interface
- Anti-Restart and Spring-Return Options Available
- Tested to SAE J259 for Ignition Switches
- Supplied with Two Matching Keys, with or without Boot
- Custom Logo can be Molded on the Boot
- Multiple Key Codes or Keyed Alike Available
- Key is Removable only at the ‘Off’ Position
An Extensive Series of Ignition Switches can also be Used as Rotary Switches. Suitable for a Broad Range of Voltages: 10A at 12V, 5A at 24V, 3A at 36V and 2A at 48V DC. Made of Rugged Engineering-Grade Plastic, these Switches Stand up to Mechanical Shock & Vibration, and Will not Corrode or Rust. This Switch has an Integrated Deutsch-Type Socket to Make Electrical Connection Quick and Easy & to Exclude Moisture and Dust. UL-Tested & Recognized to SAE J259 for Ignition Switches. Contacts are sealed front and back to IP67 (with connector installed). Many Options Available with Regard to Position, Spring-Return, Key Boot Style and Marking, Actuator Interface and Length, & Anti-Restart Features.
- Temperature Sending Unit
- Oil Pressure Sending Unit
*Sending Units May Vary Depending on Engine(s)*
*Engine Wiring Harness (Optional Add-On): Lengths of 15ft and 25ft.
*If You Need Any Other Length, No Problem — Just Give Us a Call!*
- This Product Offers a Unique Flame Retardant Polyvinyl Chloride Compound (VW-1) and is Moisture Abrasion, Acid, Diesel Fuel, and Oil-Resistant. It is Extremely Flexible & Easy to Work With.
- Single Cable with 12 Marine Grade Wires – 14/16 AWG
- Temperature: 105°C Dry, 75°C Wet
- Voltage: 600 Volts
- Stranding: Class K 30 Gauge Tinned Copper
- Standard: UL 1426 & UL Listed BC-5W2
- Connected to the Panel via Terminal Strip
*If Engine Octopus is Purchased Along with the Wiring Harness, The Opposing End Will Have a 12-Pin Deutsch Connector*
Marine-Grade Wire & Features:
- USCG / NMEA Specification Copper-Tinned Wire
- Flexible Cable – Water and Oil-Resistant
- 10″ to 12″ Pigtail Harness Connected to 12-Position Terminal Strip
12 Circuit 30 Amp Terminal Strip Features:
- Closed-Back Design Completely Insulates Power From the Mounting Surface
- Each Screw Pair is One Isolated Circuit
- Jumpers Allow the Creation of Common Circuits
Additional Options Available:
- Black or White Panel
- Black, White and Chrome Bezels Available & Sold Separately
- Engraved with Engine Name (Optional – Your Boat Name)
- Customize Panel Size, Gauges, Design, and Switches — Just Contact Us (Extra Charges May Apply)
Please Specify Your Requirements
If You Have any Technical Questions, Please Feel Free to Call or Email Us.
All Panels are Made in the USA by AC DC Marine Inc. Torrance, California
