Description
Yanmar Engine Panel with Rocker Switches 1 ViewLine VDO Tachometer
Fully-Wired / Ready to Install
Dimensions: 7 1/8” x 5 1/2”
Panel Material: Marine Acrylic, Polycarbonate, Marine Plexiglass
Black Panel / ViewLine Tachometer / Rocker Switches
Fog-Resistant Marine Grade Tachometer:

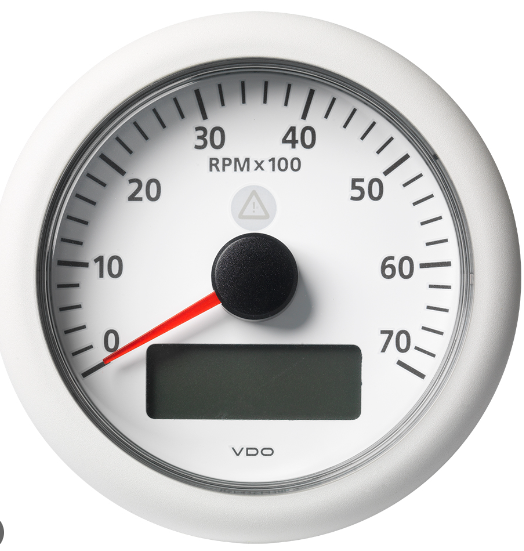

- ViewLine 3000, 4000, 5000 or 7000 RPM Programmable Tachometer with Digital Hour Meter 7 Character LCD Display (All Pick-Ups Compatible)
• LED Illumination
• Integrated Warning LED
• RED LED Back-lit Technology
• Panel and Flush Mount Possibility
ViewLine Gauges are Available with or without Operating Hours Counter (Digital Display) and Can be Connected to Conventional Marine Engines (No dataBUS). One LED Warning Light is Integrated as a Standard.
ViewLine Gauges are Equipped with a Red Warning LED as a Standard. The Warning Point Depends on the Chosen Pressure Sensor with Warning Contact.
Kit Includes:
- Fully Wired Instrument Panel with 1 Marine-Grade Gauge
- Alarm Warning LEDs
- Dual Rocker Switches (Fully Customizable — Number of Switches and/or Cover Types)
- Temperature Sending Unit
- Oil Pressure Sending Unit
*Sending Units May Vary Depending on Engine(s)*
*Engine Wiring Harness (Optional Add-On): Lengths of 15ft and 25ft.
*If You Need any Other Length, No Problem — Just Give us a Call!*
-
- Single Cable with 12 Marine-Grade Wires
- 14 Gauge: Black
- 14 Gauge: Red
- 16 Gauge: Dark Blue
- 16 Gauge: Light Blue
- 16 Gauge: Dark Brown
- 16 Gauge: Light Brown
- 16 Gauge: Gray
- 16 Gauge: Yellow
- 16 Gauge: White
- 16 Gauge: Purple
- 16 Gauge: Light Blue/White Stipe
- 16 Gauge: Dark Blue/White Stripe
- Single Cable with 12 Marine-Grade Wires
- This Product Offers a Unique Flame-Retardant Polyvinyl Chloride Compound (VW-1) and is Moisture, Abrasion, Acid, Diesel Fuel, and Oil Resistant. It is Extremely Flexible & Easy to Work With.
- Single Cable with 12 Marine-Grade Wires – 14/16 AWG
- Temperature: 105°C dry, 75°C wet
- Voltage: 600 Volts
- Stranding: Class K 30 Gauge Tinned Copper
- Standard: UL 1426 & UL Listed BC-5W2
- Connected to the Panel via Terminal Strip
*If Engine Octopus is Purchased Along with the Wiring Harness, The Opposing End Will Have a 12-Pin Deutsch Connector*
*DOES NOT COME WIRED TO TERMINAL STRIP*
Marine-Grade Wire & Features:
- USCG / NMEA Specification Copper-Tinned Wire
- Flexible Cable – Water and Oil-Resistant
- 10″ to 12″ Pigtail Harness Connected to 12-Position Terminal Strip
12 Circuit 30 Amp Terminal Strip Features:
- Closed Back Design Completely Insulates Power from the Mounting Surface
- Each Screw Pair is one Isolated Circuit
- Jumpers Allow Creation of Common Circuits
Additional Options Available:
- Black or White Panel
- Black, White and Chrome Bezels Available & Sold Separately
- Engraved with Engine Name (Optional – Your Boat Name)
- Customize Panel Size, Gauges, Design, and Switches — Just Contact Us (Extra Charges May Apply)
Please Specify Your Requirements
If You Have any Technical Questions, Please Feel Free to Call or Email Us
All Panels are Made in the USA by AC DC Marine Inc. Torrance, California
