Description
NMEA 2000 converter

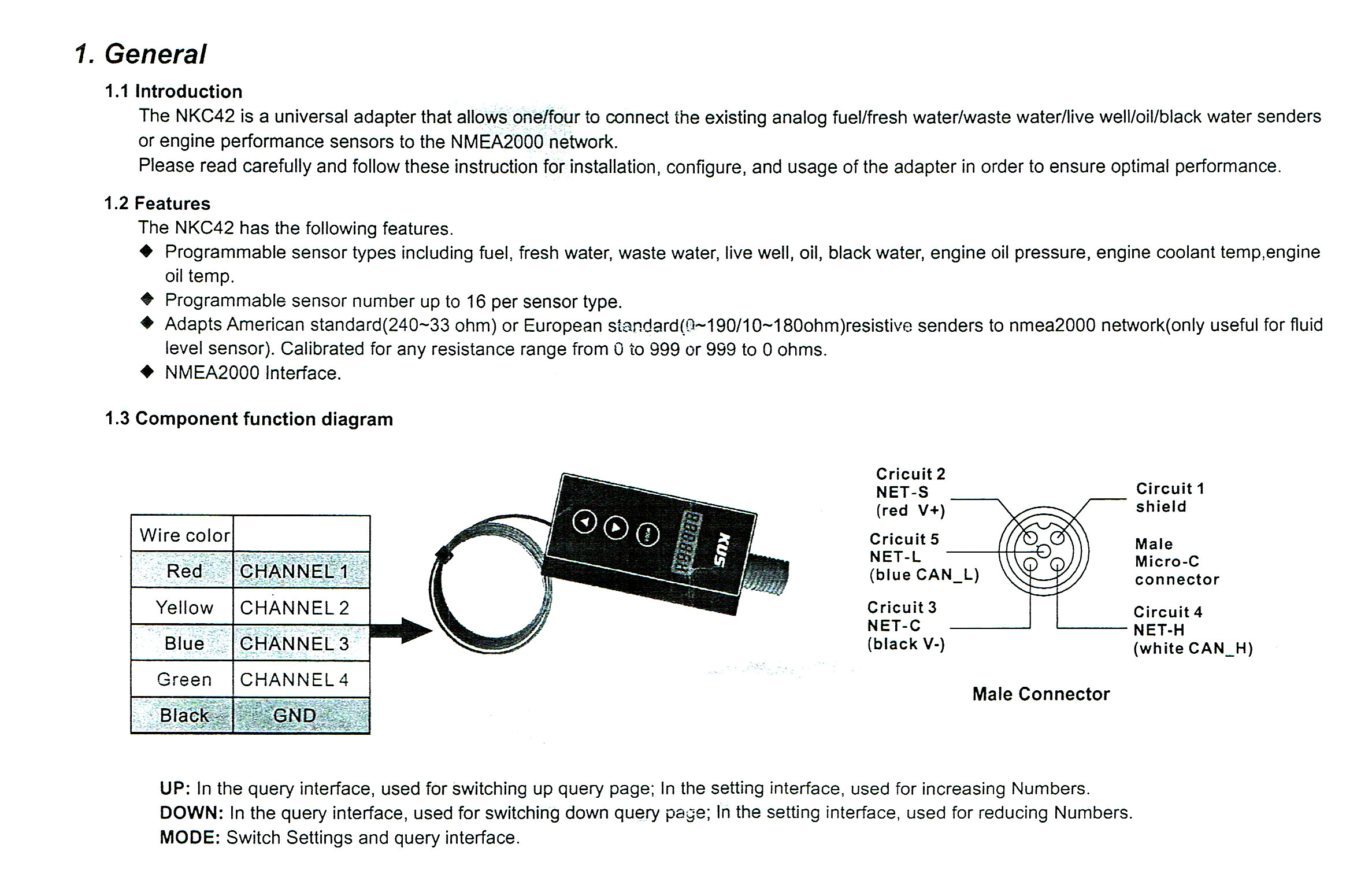

The NKC42 is a universal adapter that allows one to connect the existing analog fuel, freshwater, wastewater, live well, oil pressure, temperature and black water sensors to the NMEA 2000 network.
Features:
Features:
- NKC series attaches directly into J1939 and NMEA 2000 networks of comparable engines, transmissions, and gen-sets and converts the signals to the NMEA 2000 or J1939 CAN bus data
- J1939 & NMEA 2000 output for use with an onboard device
- NKC series can be used to get engine data, tank levels, alarm status, generic pressure, and temperature indications from any resistive sensors

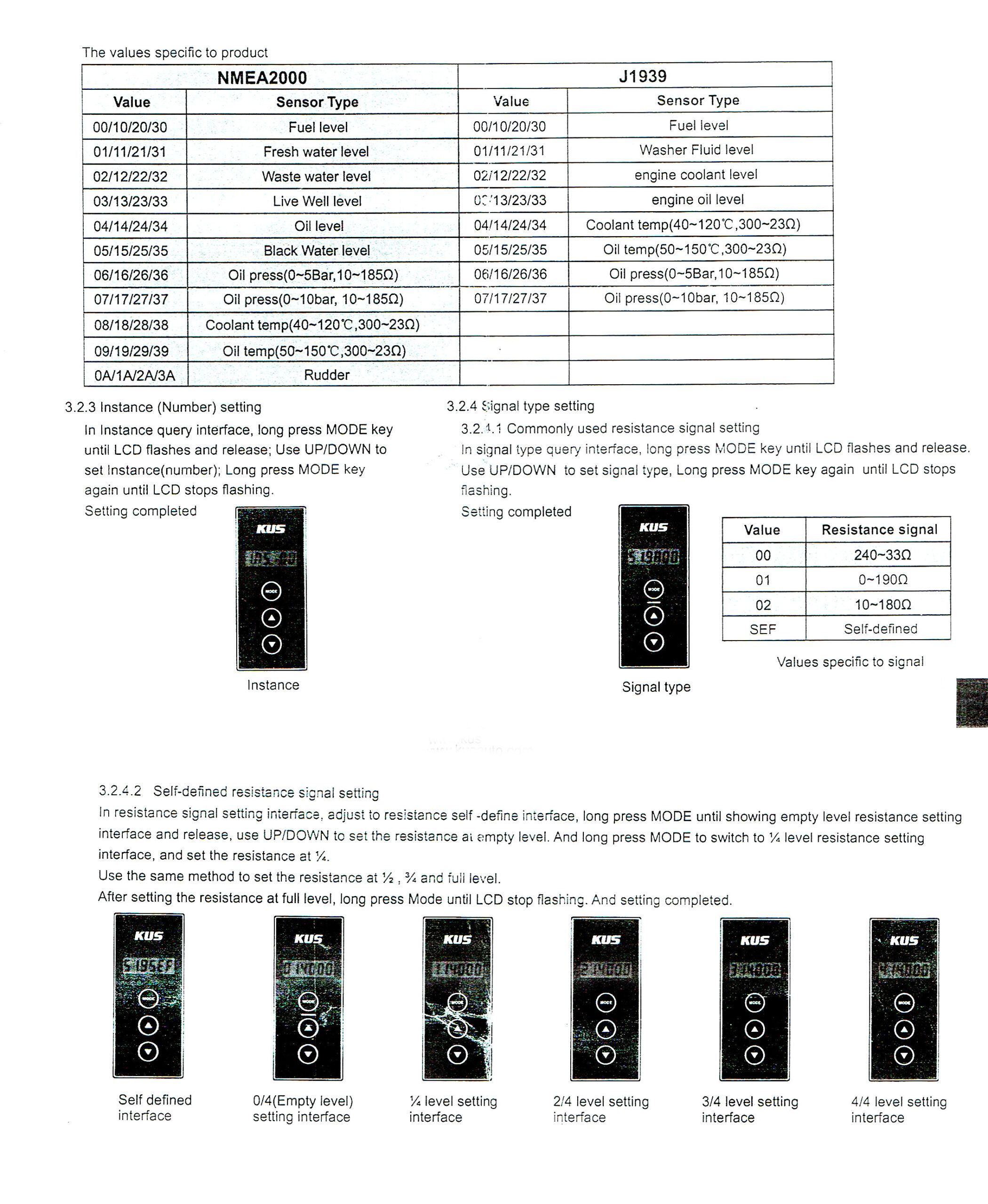

- Programmable sensor types including fuel, freshwater, waste water, live water, oil pressure, temperature, and black water
- Programmable sensor number up to 16 per sensor type
- Adapts American standard (240~33 ohm) or European standard (0~190 km) resistive sensors to NMEA 2000 network.
- NMEA 2000 interface

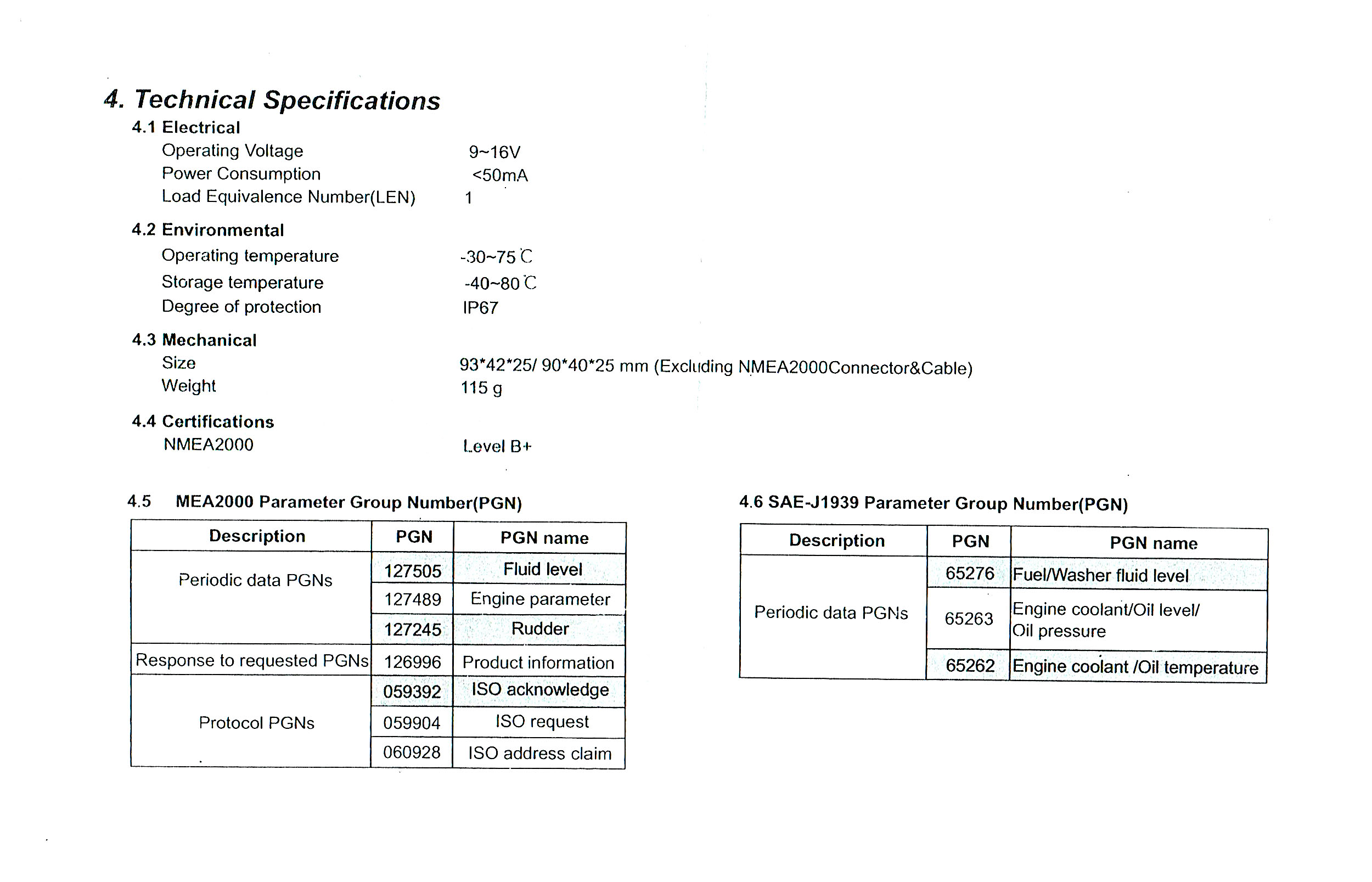

Specifications:
- Item No.: 4 Channels JKE00233
- Protection Rating: IP67
- Signal Output: NMEA 2000/J1939 Network Messages
- Operating Voltage: 8~16V
- Connector: Male “Micro-C” Pinout
- Operation Temperature: -40°F ~ +185°F(-40°C~+85°C)
- Mac Current: 50mA
- Fully Programmable, no tooling needed
